SYNCRO Q7
SYNCRO Q704

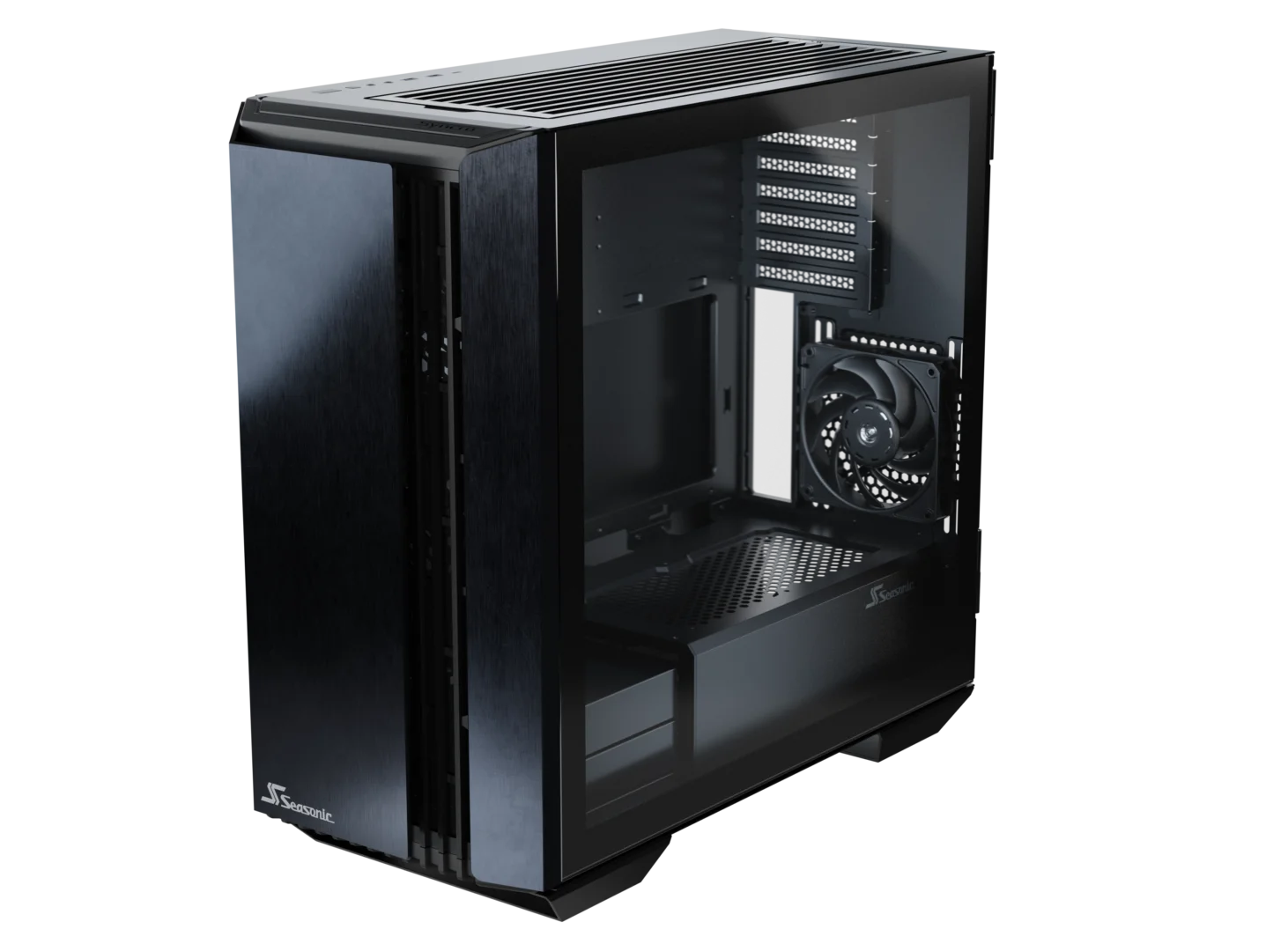

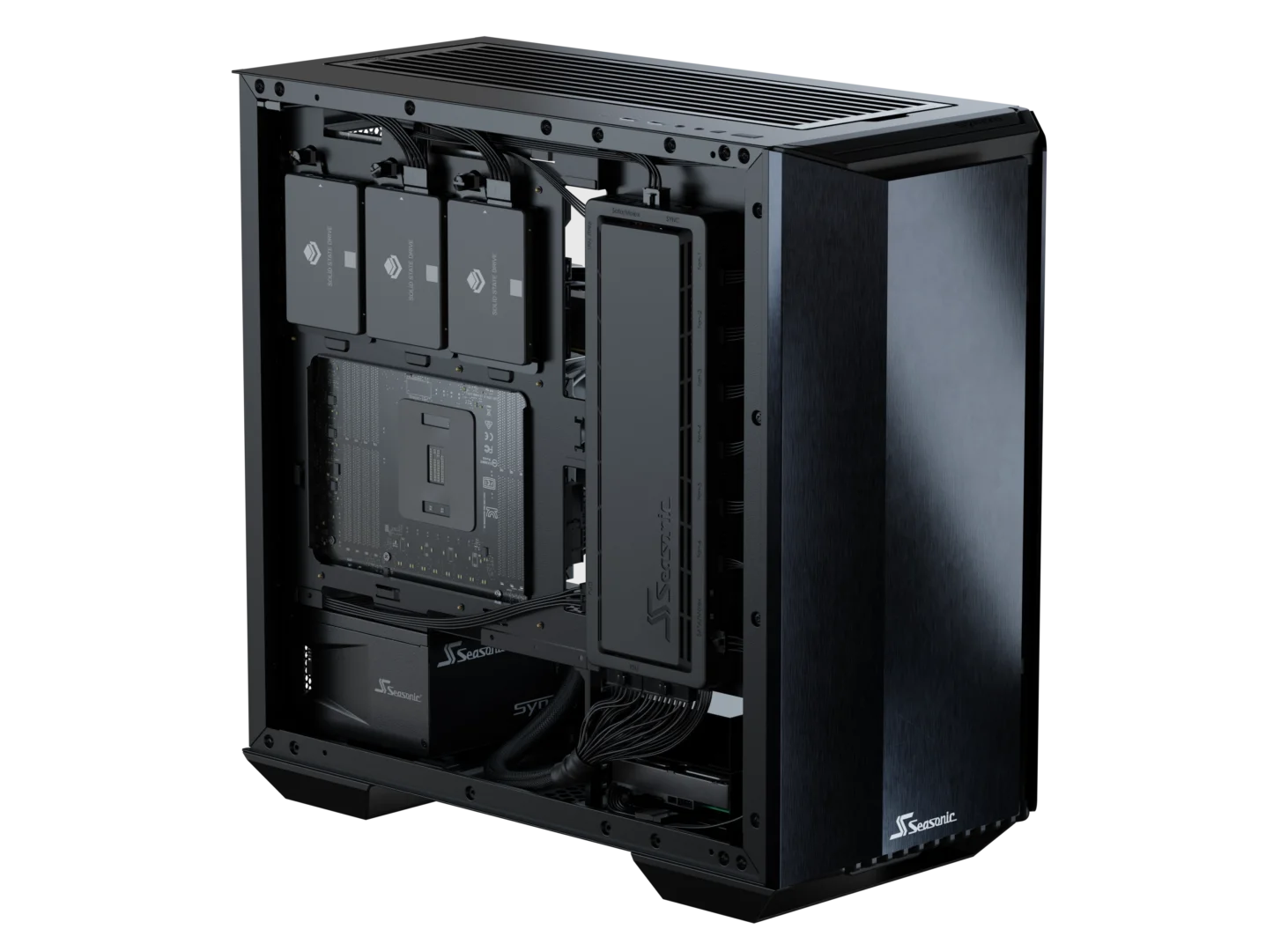

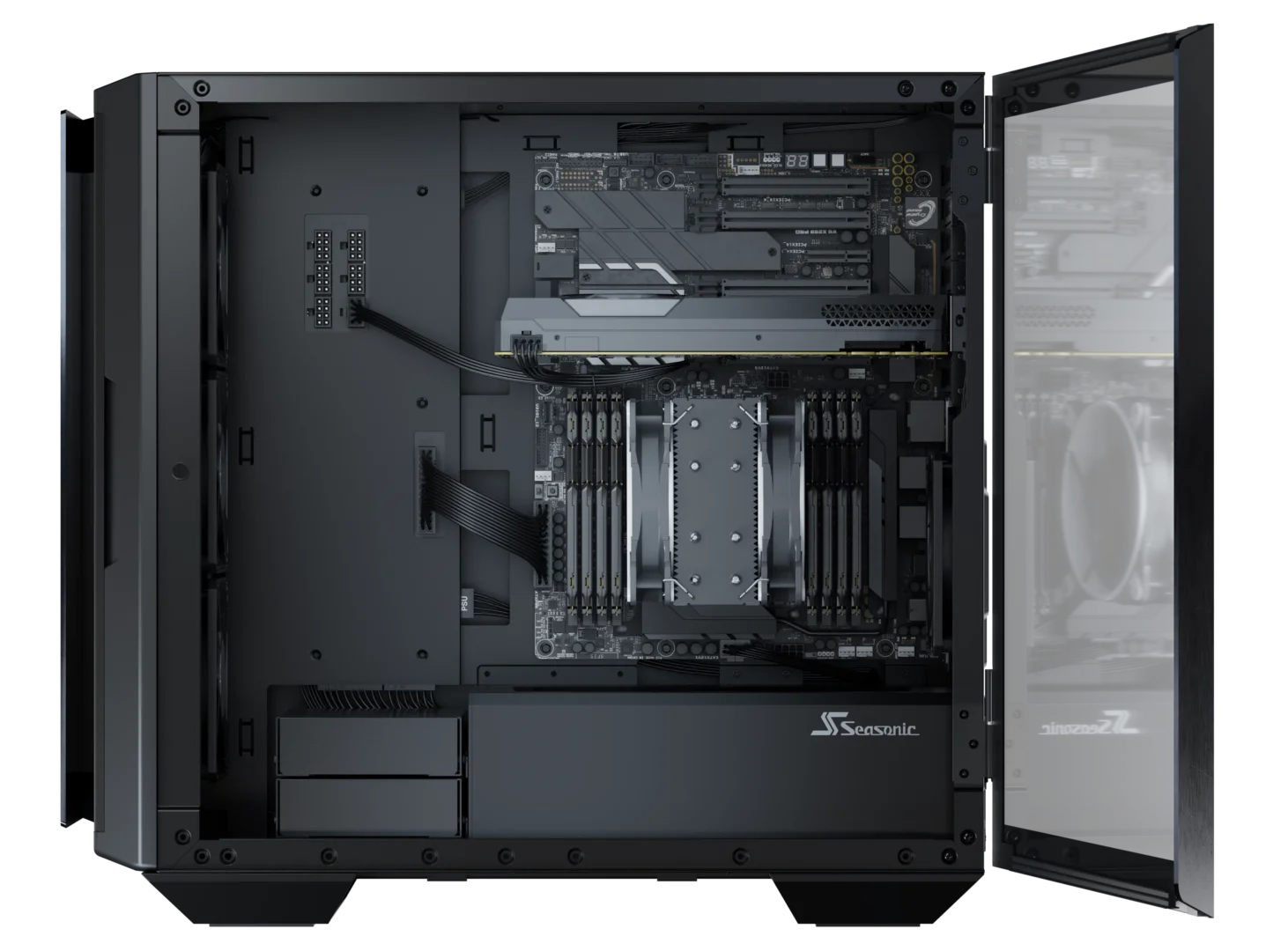

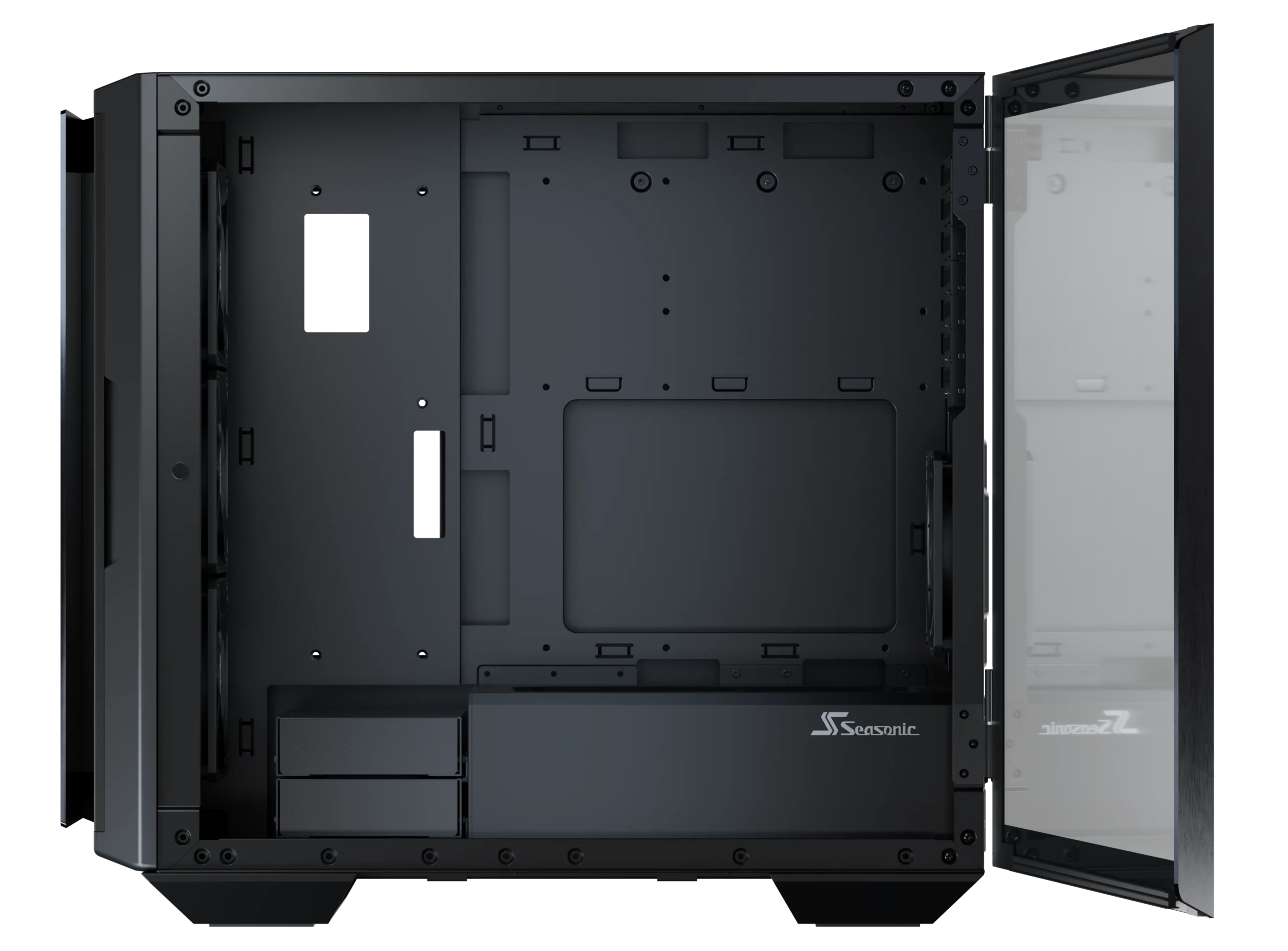

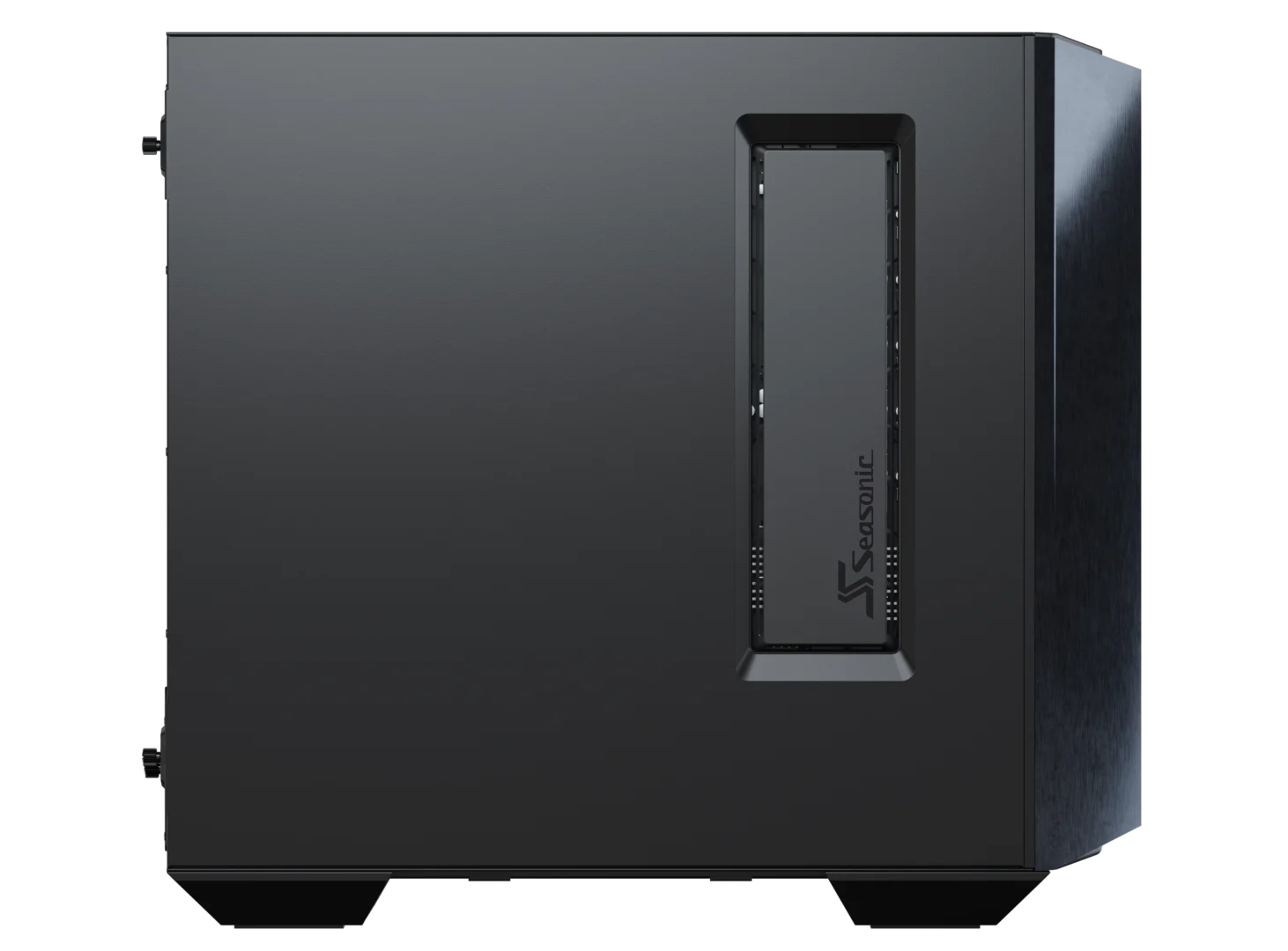

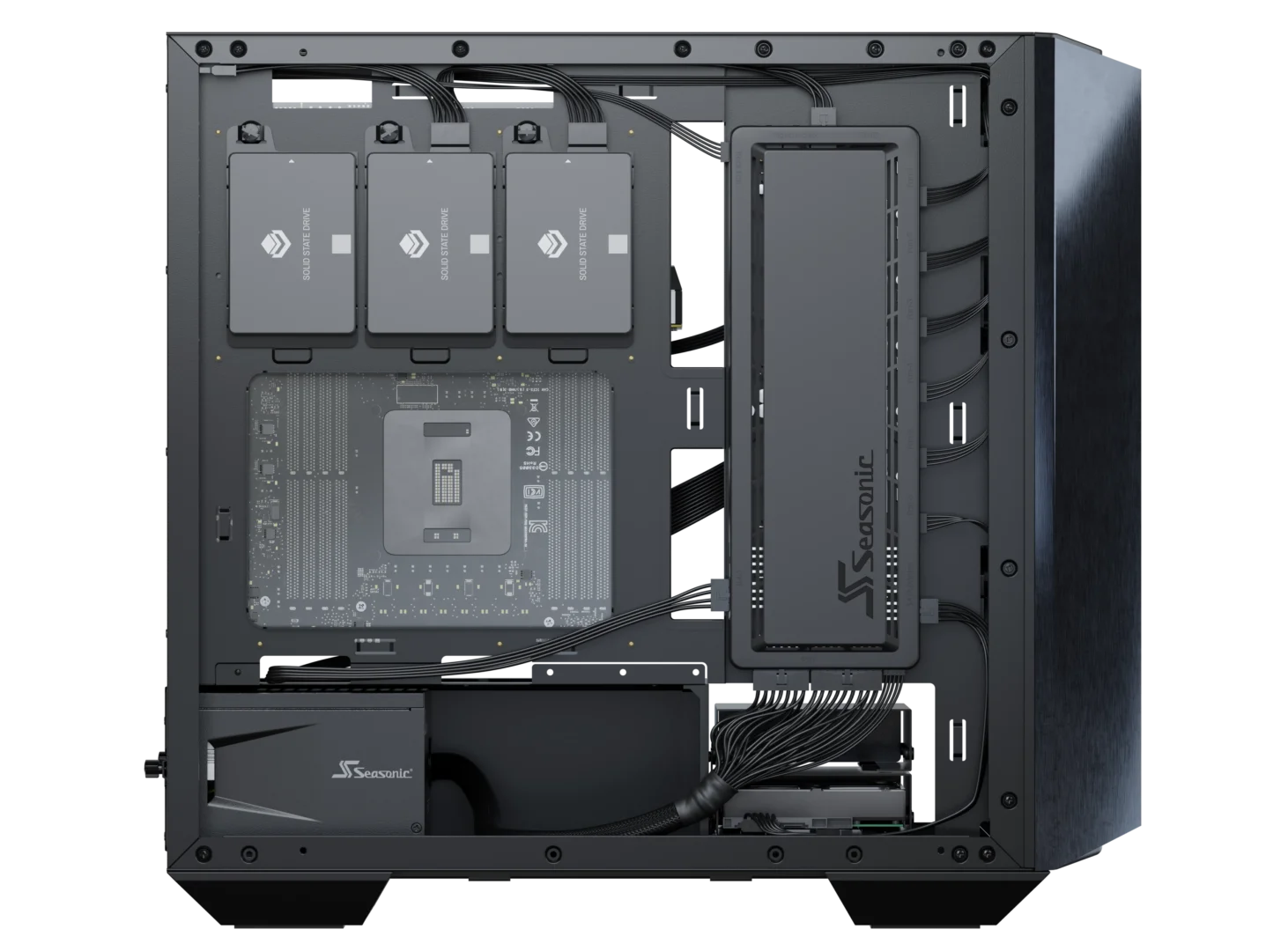

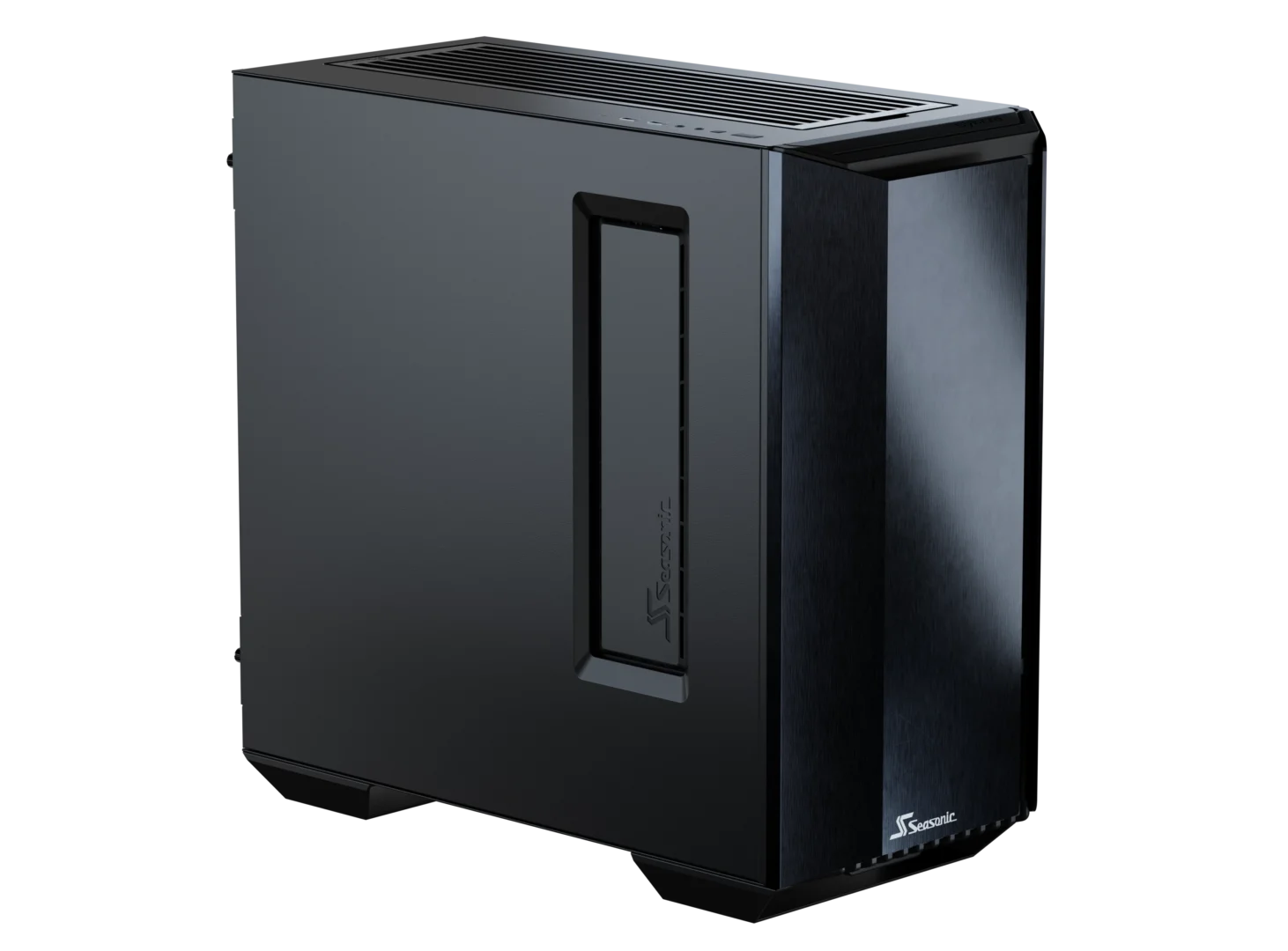

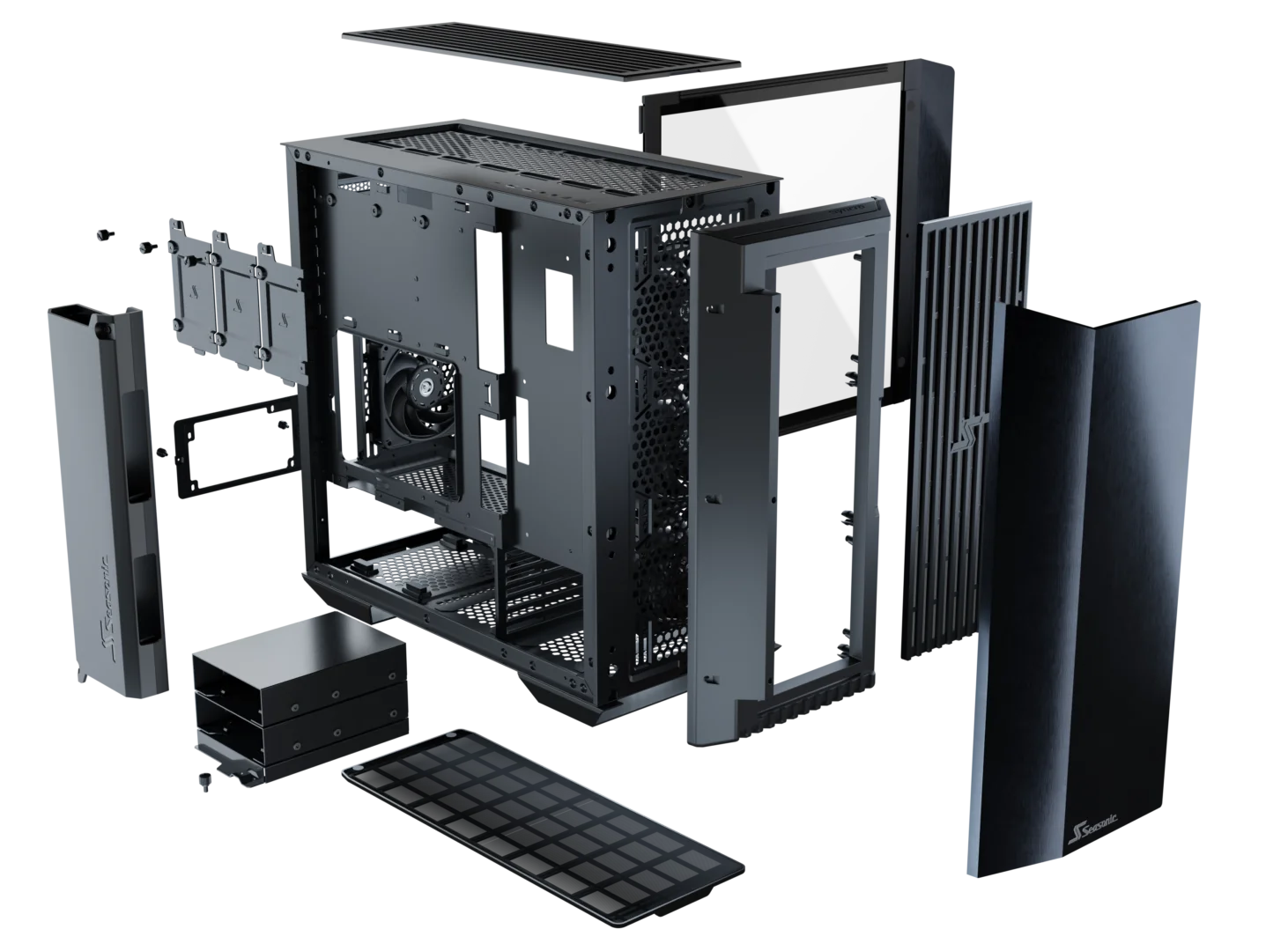

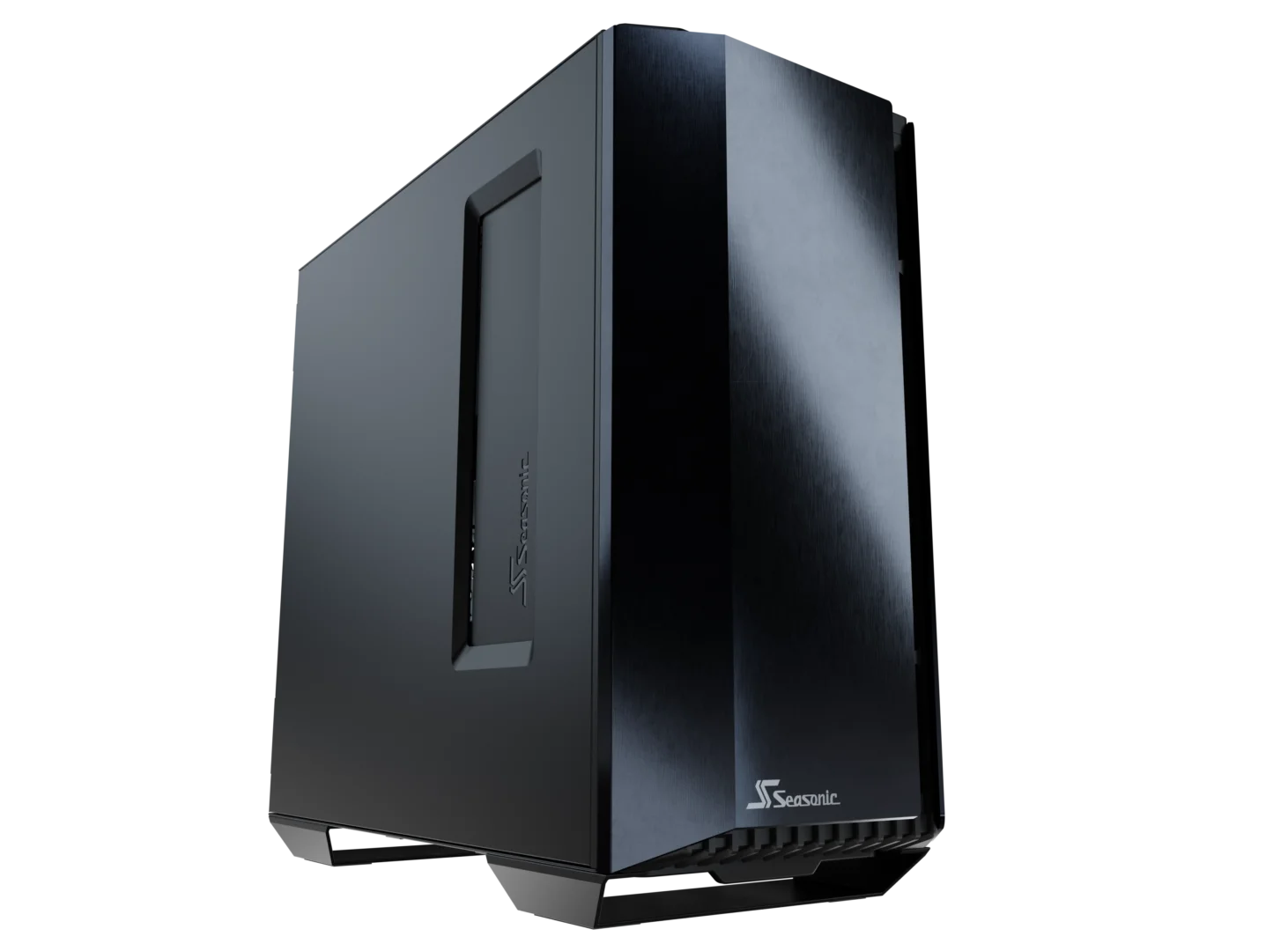

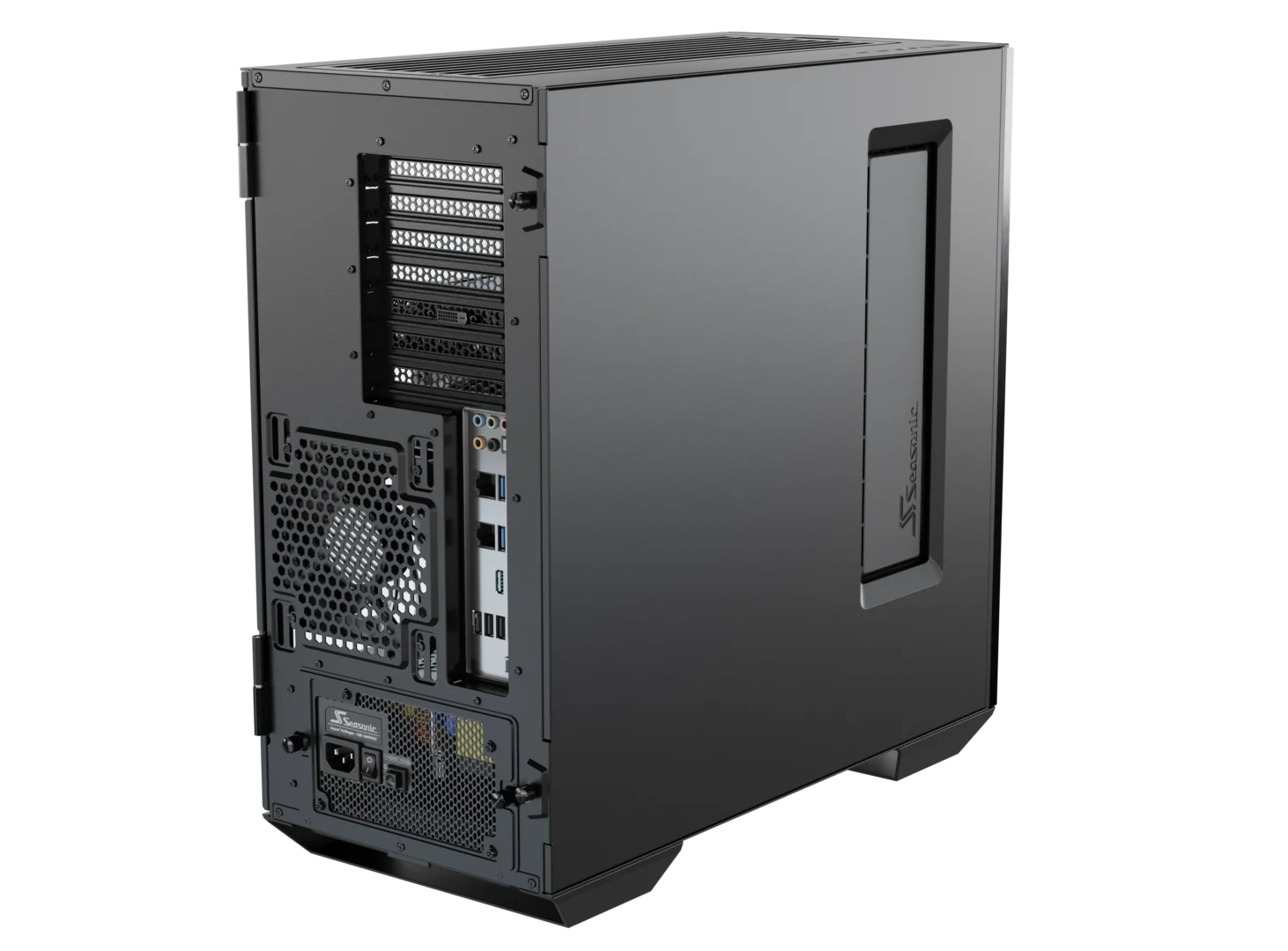

The state-of-the-art Seasonic SYNCRO Q7 Series is a mid-tower ATX chassis that features an aluminum body and a tempered glass panel on one side and the Seasonic SYNCRO CONNECT Module* on the other. This setup can accommodate powerful hardware and provides versatile cooling and ventilation options. The SYNCRO CONNECT Module* functions as a cable management hub, to which the components are directly connected with generally shorter cables. This setup simplifies cable routing and allows for a clean look on both sides of the case.
-
iF Design Award and reddot winner 2021
-
Form Factor
Mid Tower
-
Dimensions (D x W x H)537 mm x 234 mm x 493 mm
-
Materials
Aluminum, Steel, Plastic
-

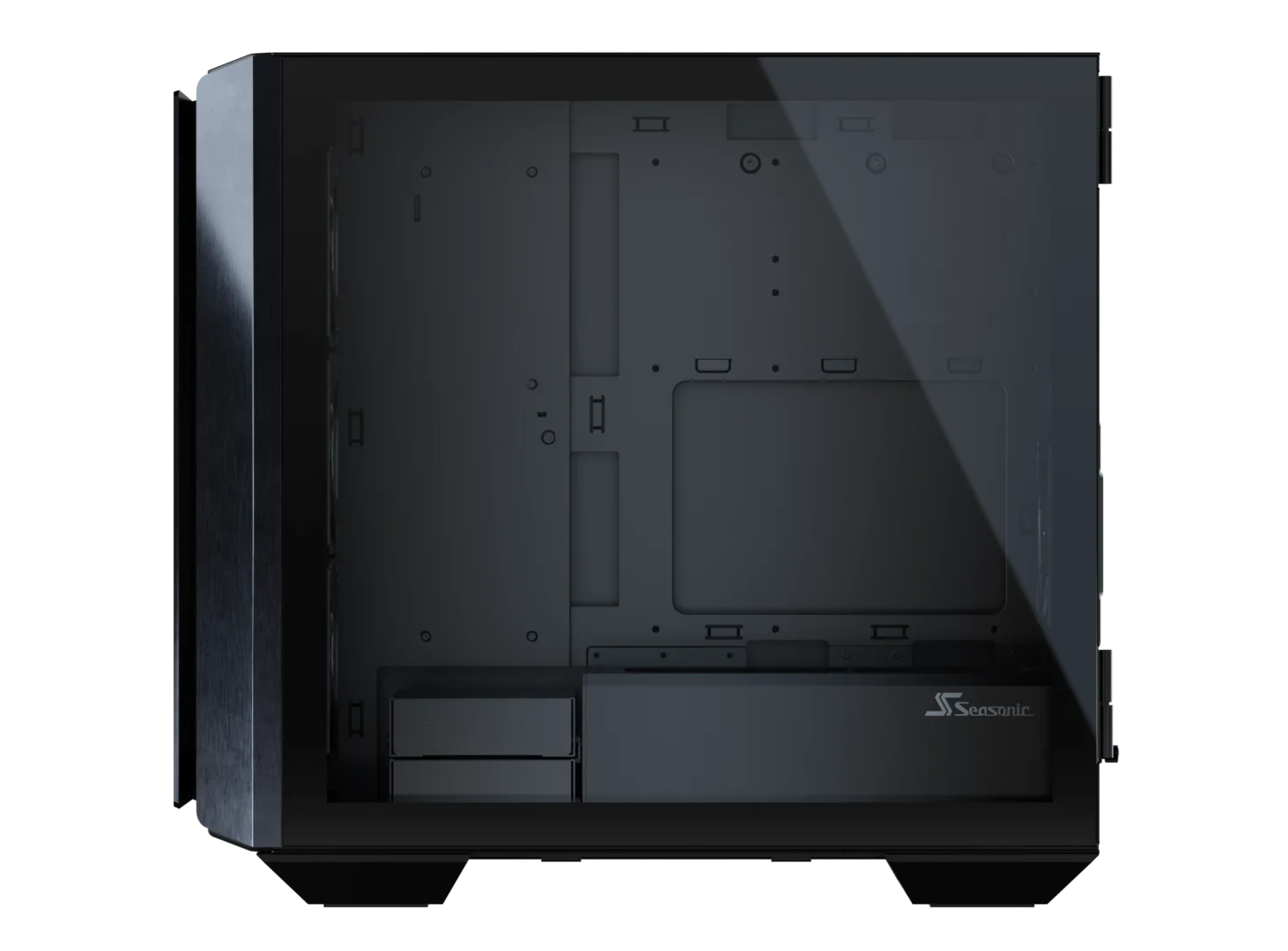

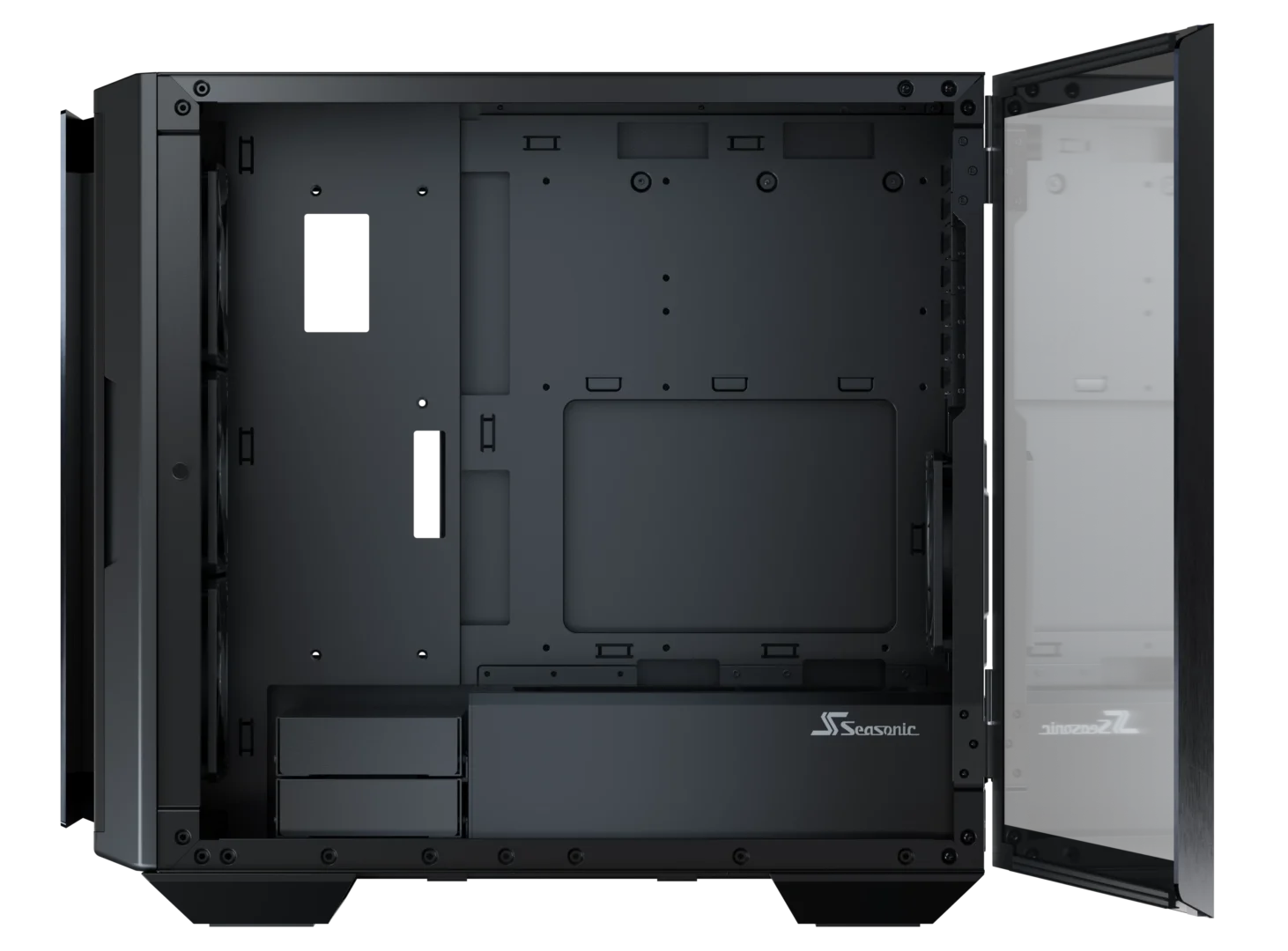

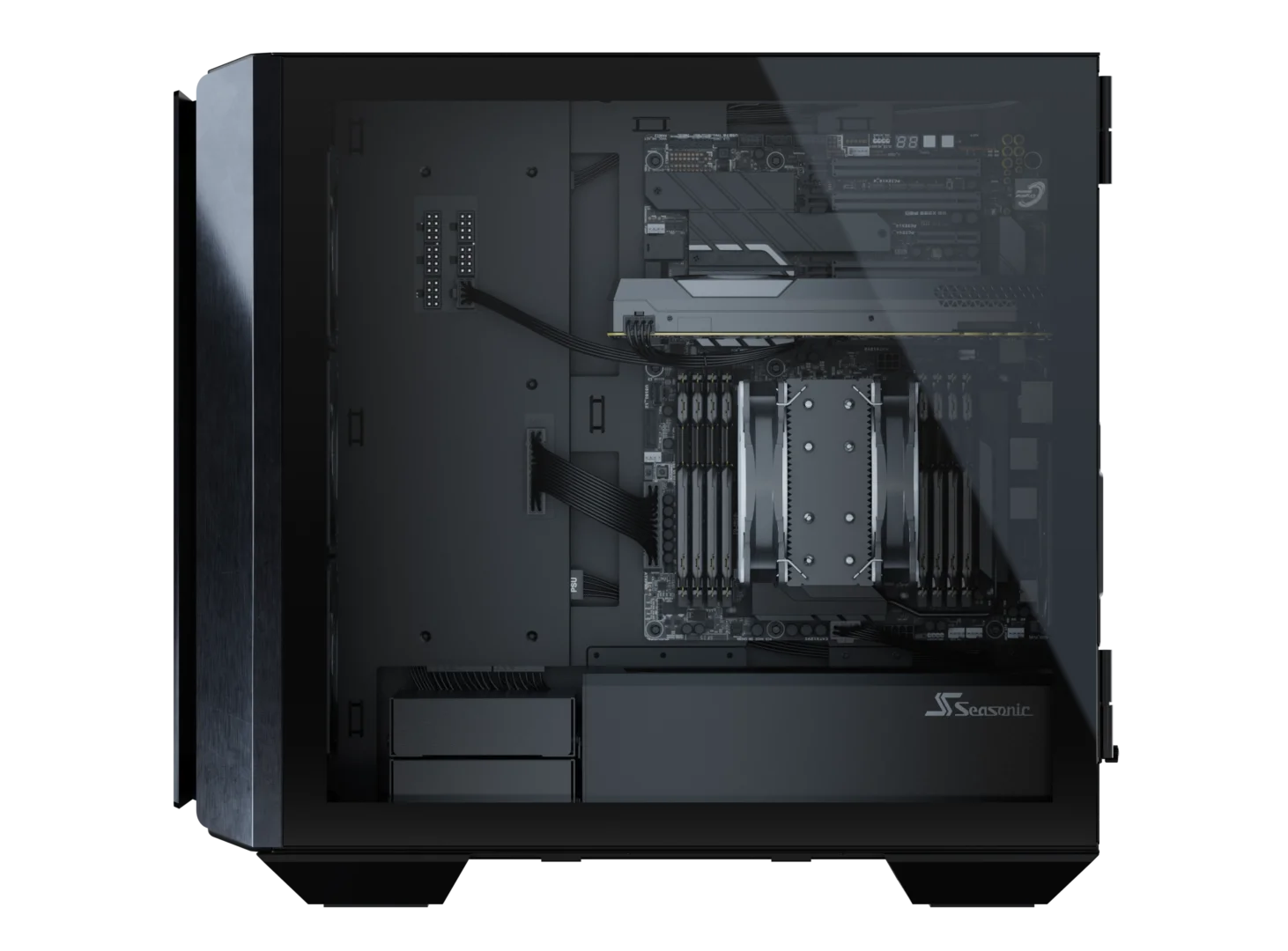

Side Panel4 mm Tempered Glass Side Panel
iF Design Award and reddot winner 2021
537 mm x 234 mm x 493 mm
4 mm Tempered Glass Side Panel

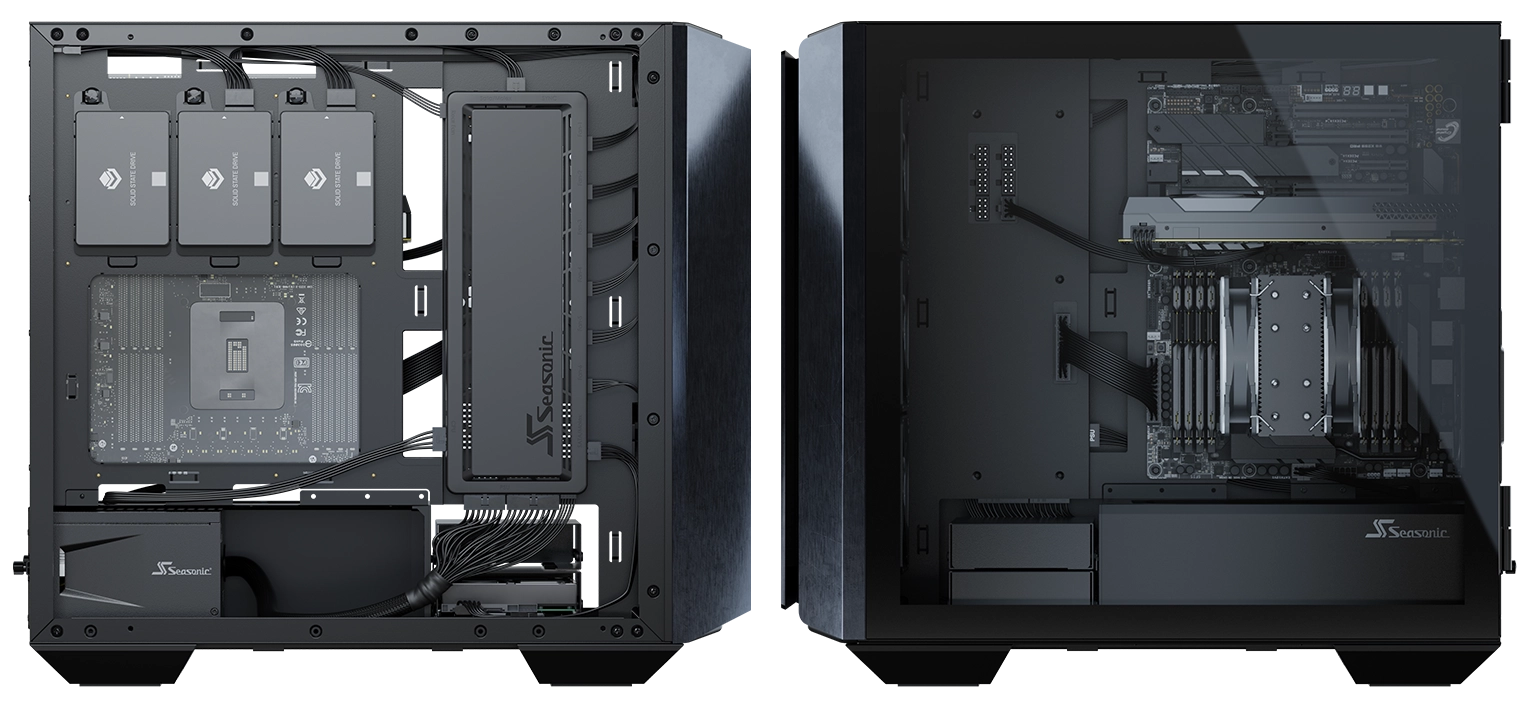

One Clean Solution
When used in tandem with the SYNCRO case, the Seasonic SYNCRO power supply plus CONNECT Module set keeps both sides of the case neat and tidy.
Optimized Airflow

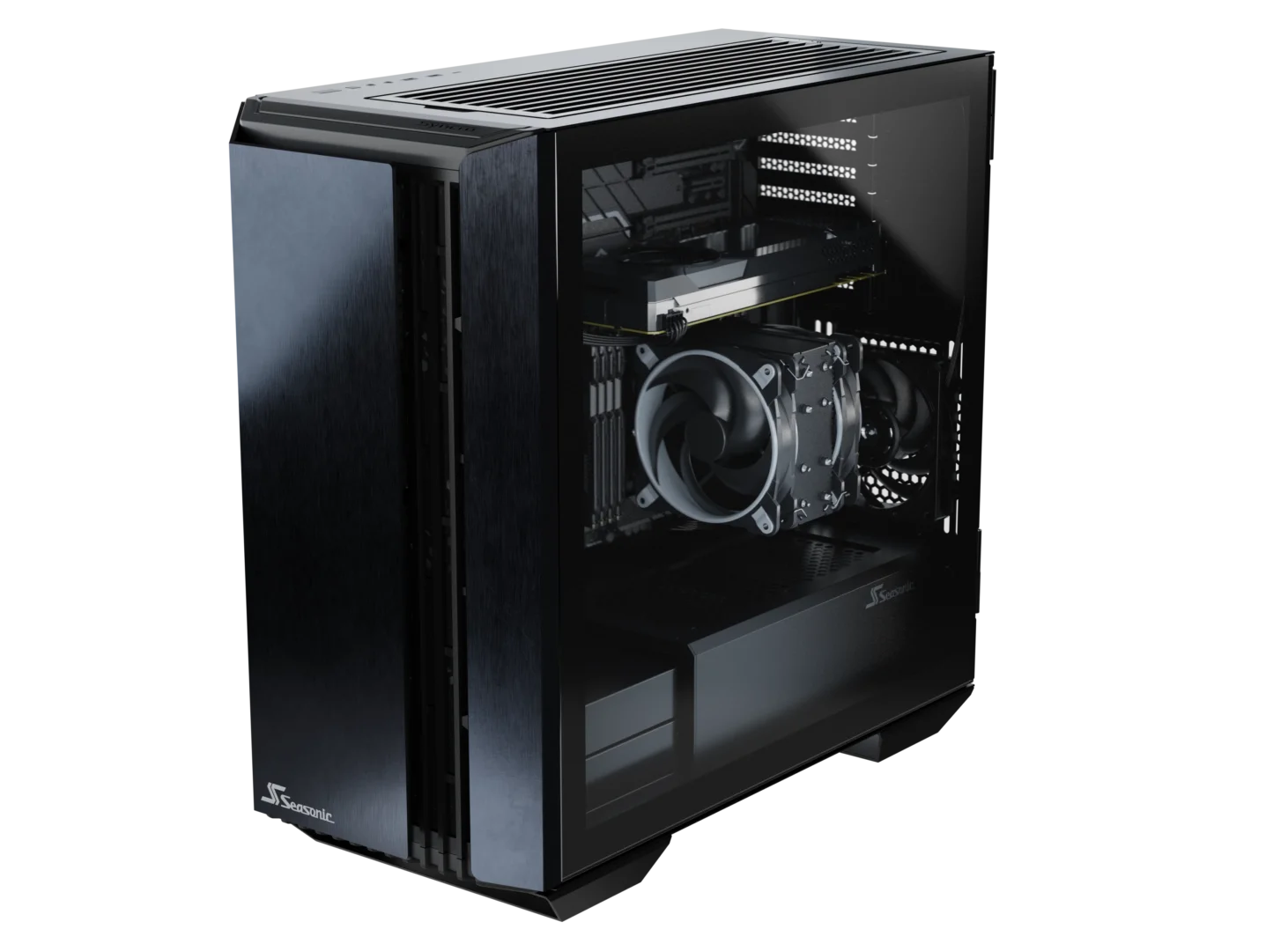

Inverted ATX design prevents the rising heat emitted by the GPU from increasing CPU temperature.
Ventilation holes on each side of the case ensure sufficient airflow.

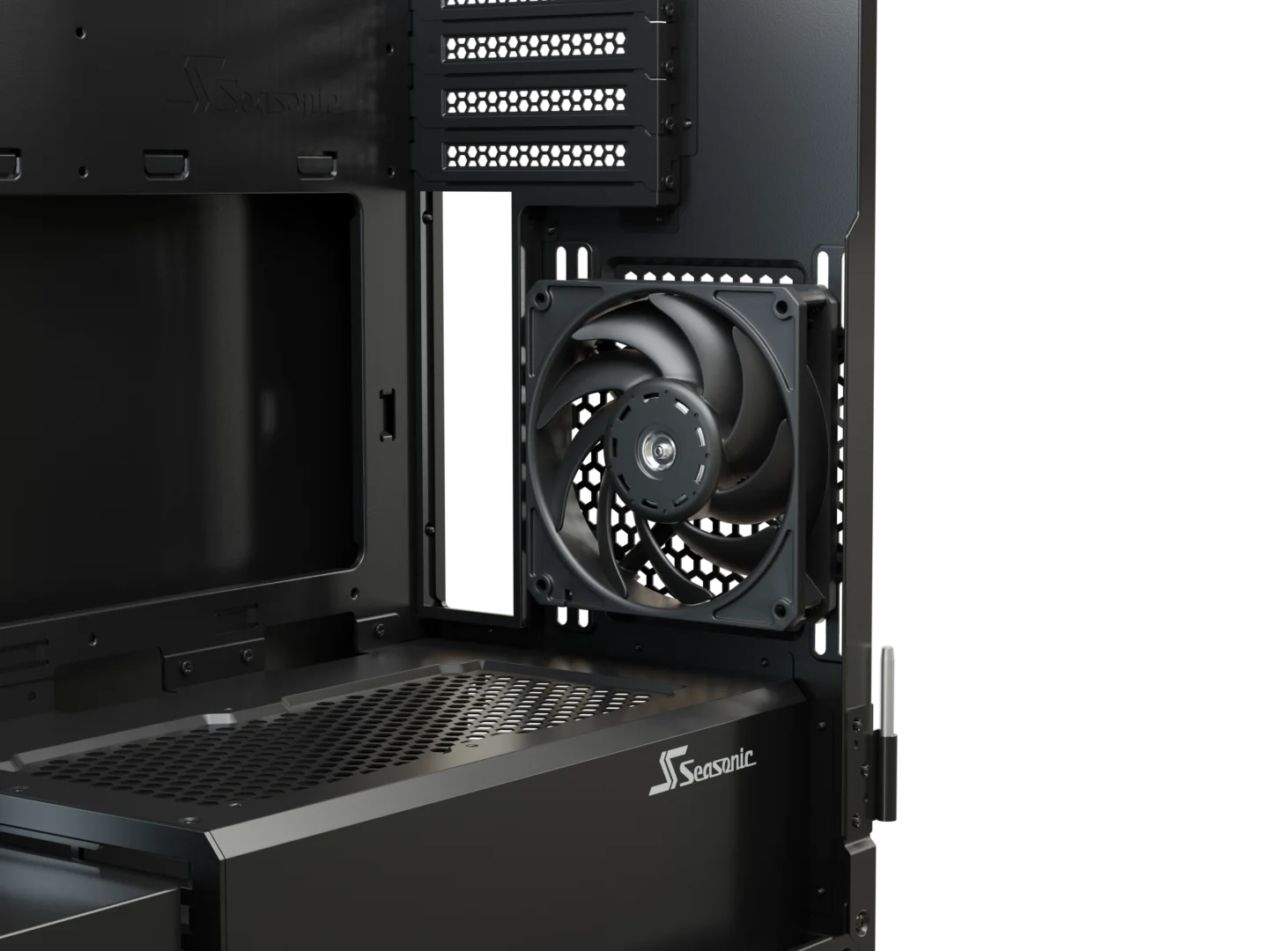

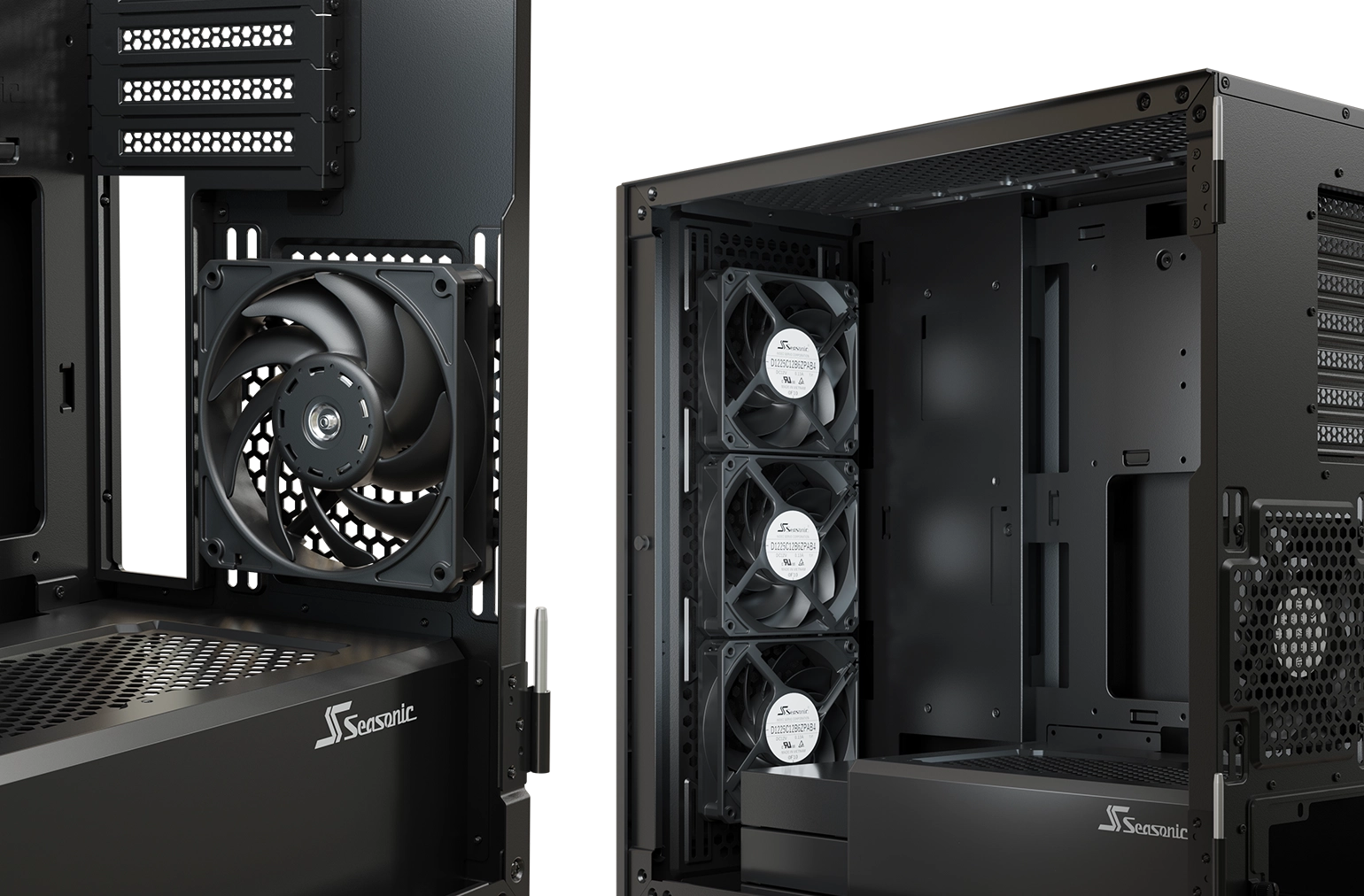

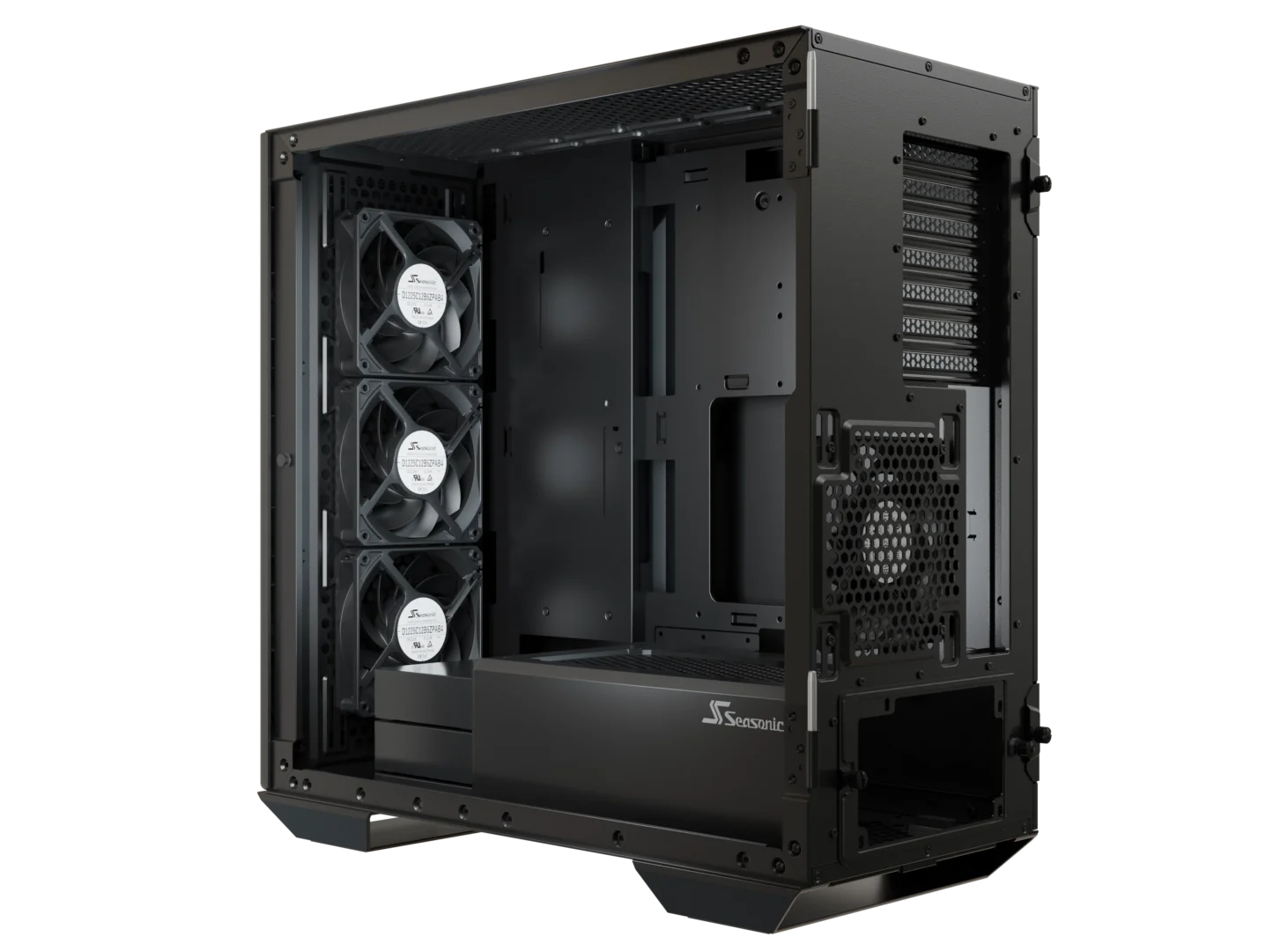

High-Performance Seasonic-Nidec Fans
Factory installed four high-performance, Seasonic-Nidec, dual ball-bearing fans provide powerful, yet silent cooling. Up to eight cooling fans can be installed for extended cooling solutions.
Simplified Maintenance

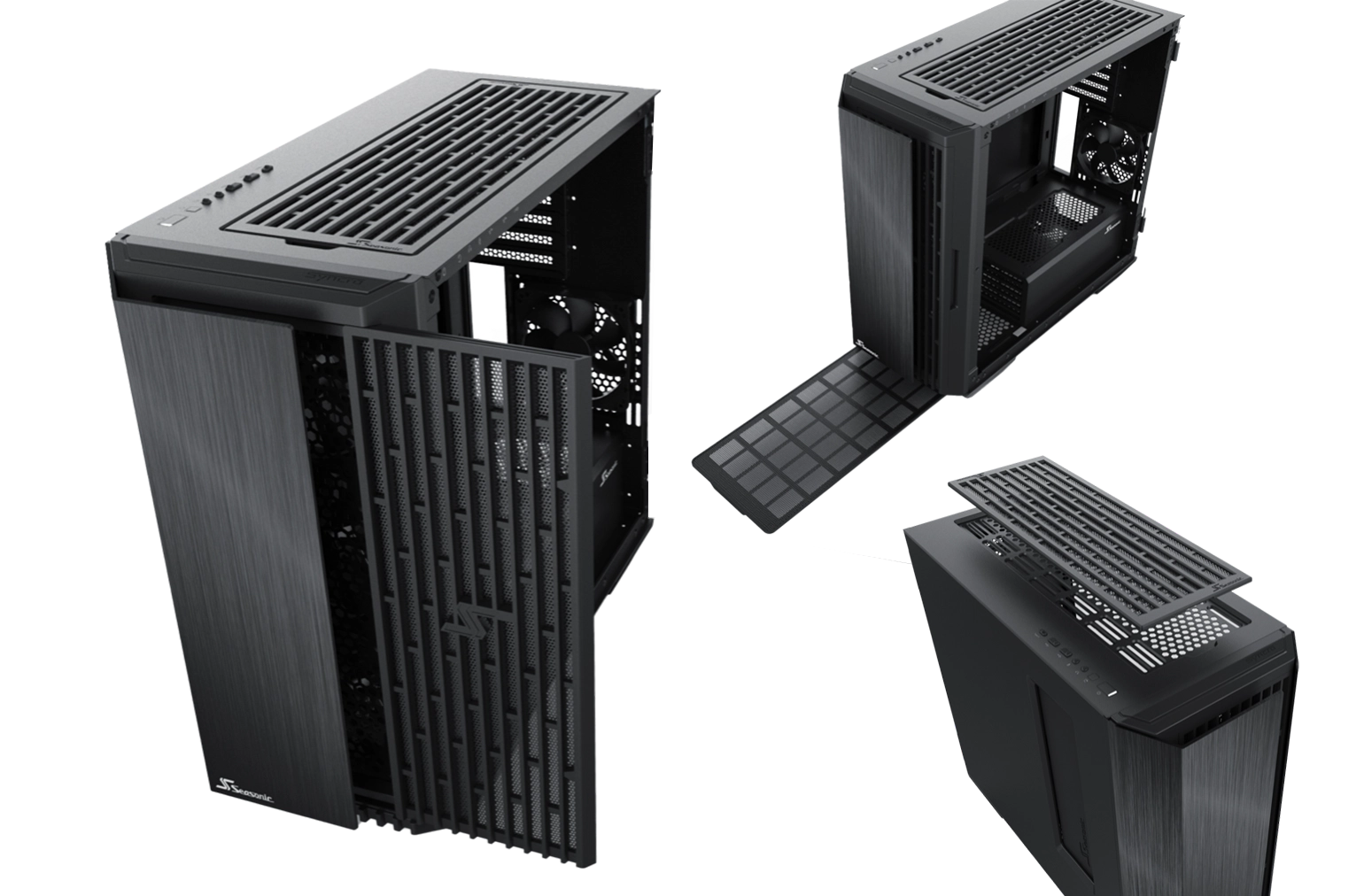

Large-sized dust filters on the front, top and bottom sides of the SYNCRO Q704 are kept in place by magnets and can easily be removed for maintenance and cleaning.
Multiple Cooling Solutions
The SYNCRO Q704 provides ample space for air- and radiator cooling solutions.
Setup Guide
Feature Summary
| Case Specifications | ||
|---|---|---|
| Dimensions (D x W x H) | 537 mm x 234 mm x 493 mm | |
| Form Factor | Mid Tower | |
| Materials | Aluminum, Steel, Plastic | |
| Side Panel Type | 4 mm Tempered Glass Side Panel | |
| Compatibility and Clearances | ||
| Mainboard Support | Extended ATX, ATX, Micro ATX, ITX | |
| Maximum Motherboard Size | 305 mm x 277 mm | |
| Maximum PSU Length | 280 mm | |
| Maximum CPU Cooler Height | 185 mm | |
| Maximum GPU Length | 345 mm | |

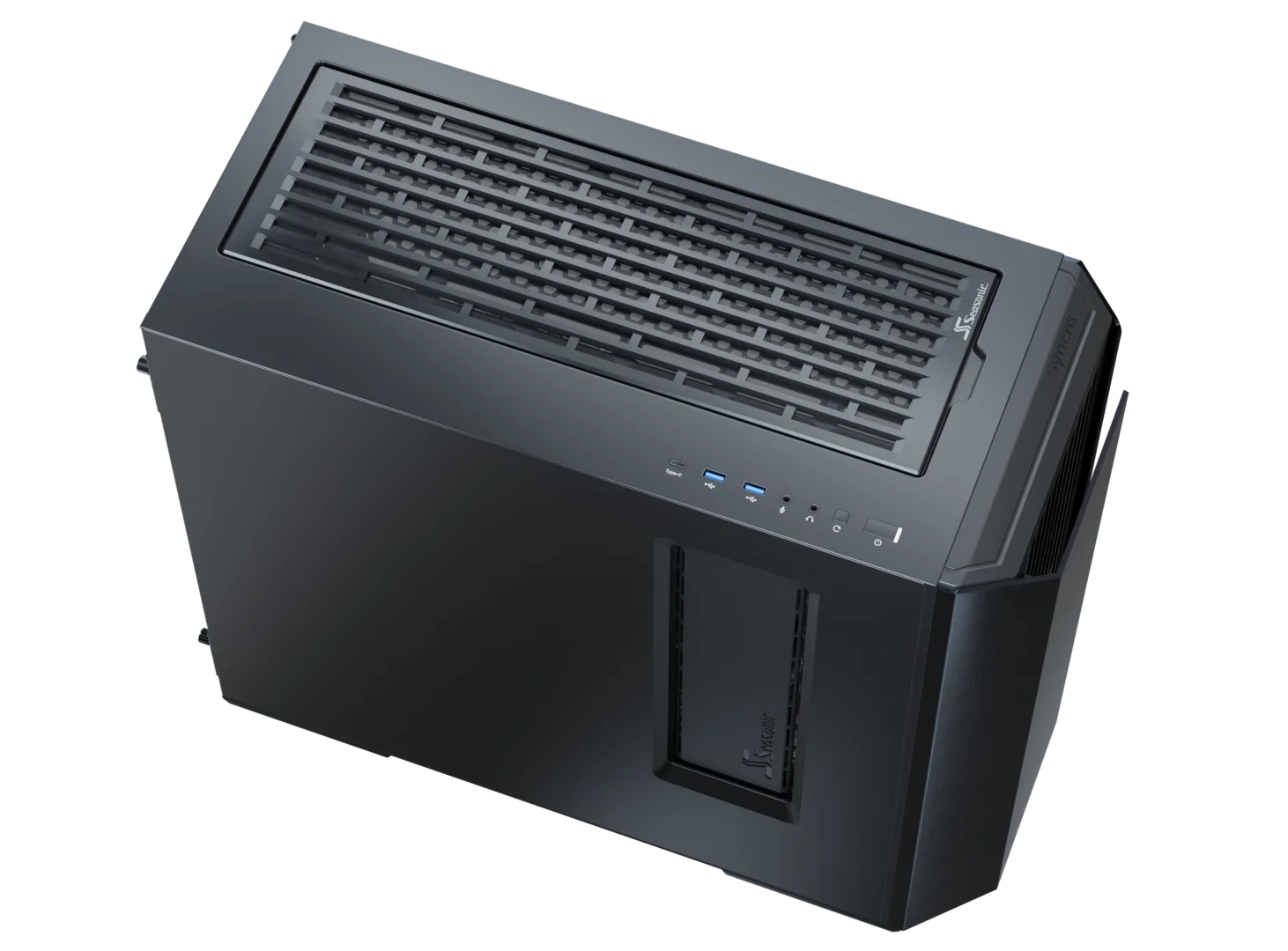

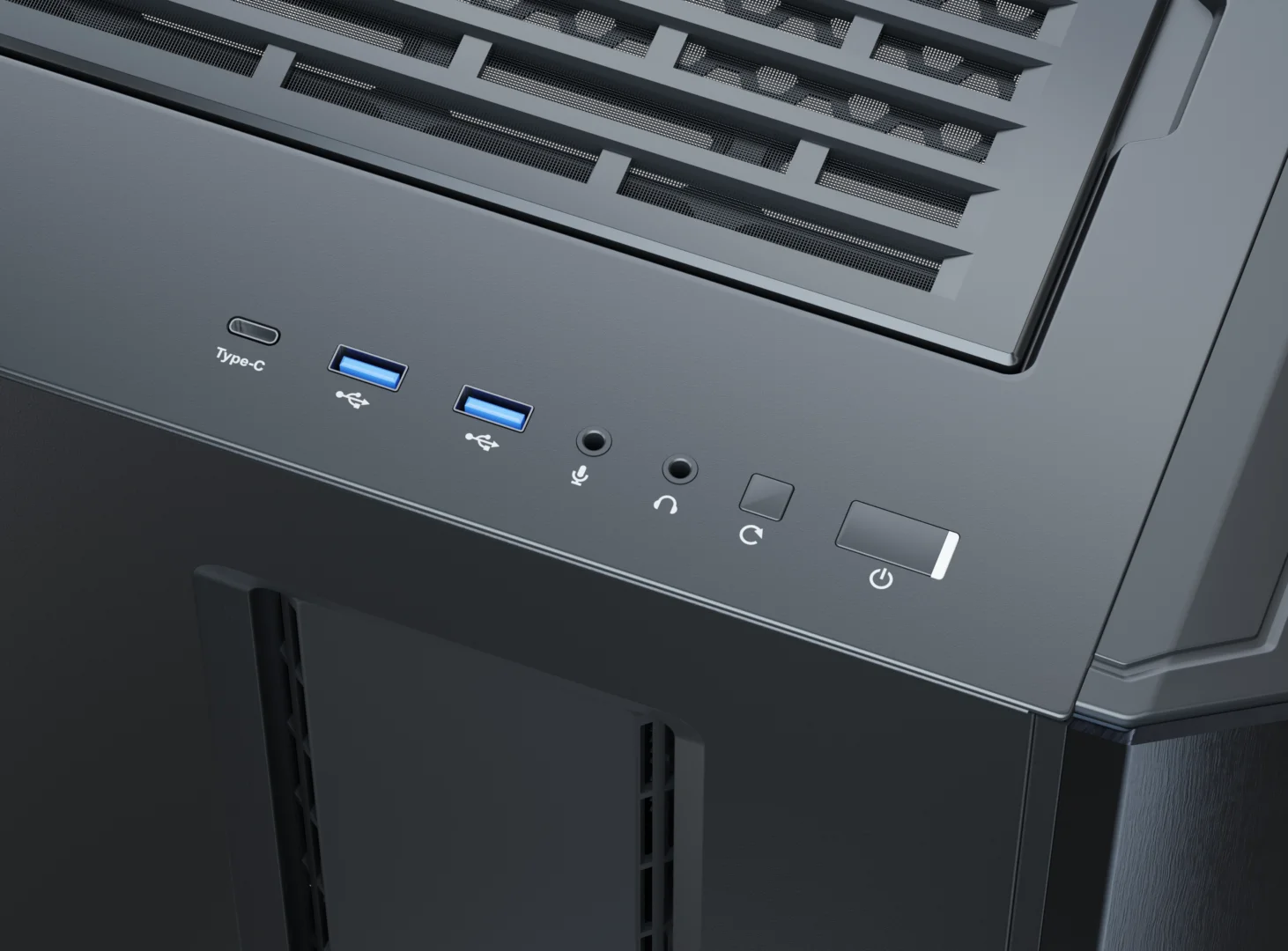

| Access and Control | ||
| Power | 1 | |
| Reset | 1 | |
| USB 3.0 | 2 | |
| HD Audio IN | 1 | |
| HD Audio OUT | 1 | |
| USB Type-C | 1 | |
| PCIe and Slots Drive Bays | ||
| PCIe Slots | 7 | |
| 3.5" HDD Bays (can be used for 2.5" SSD) | 2 | |
| 2.5" SSD Brackets | 3 | |
| Fan Capacity | 120 mm | 140 mm |
| Front | 3 | 3 |
| Top | 3 | 3 |
| PSU Shroud | 1 | 0 |
| Rear | 1 | 1 |
| Radiator Capacity | ||
| Front | Up to 360 mm | |
| Top | Up to 360 mm | |
| Rear | Up to 120 mm | |
| Parts and Accessories | ||
| 120 mm Seasonic-Nidec Fans | 4 | |
| 3-to-1 PWM fan splitter (pre-installed) | 1 | |
| 3.5" HDD Drive Bays* | 2 | |
| 2.5" SSD Brackets | 3 | |
| Removable Dust Filters | 3 | |

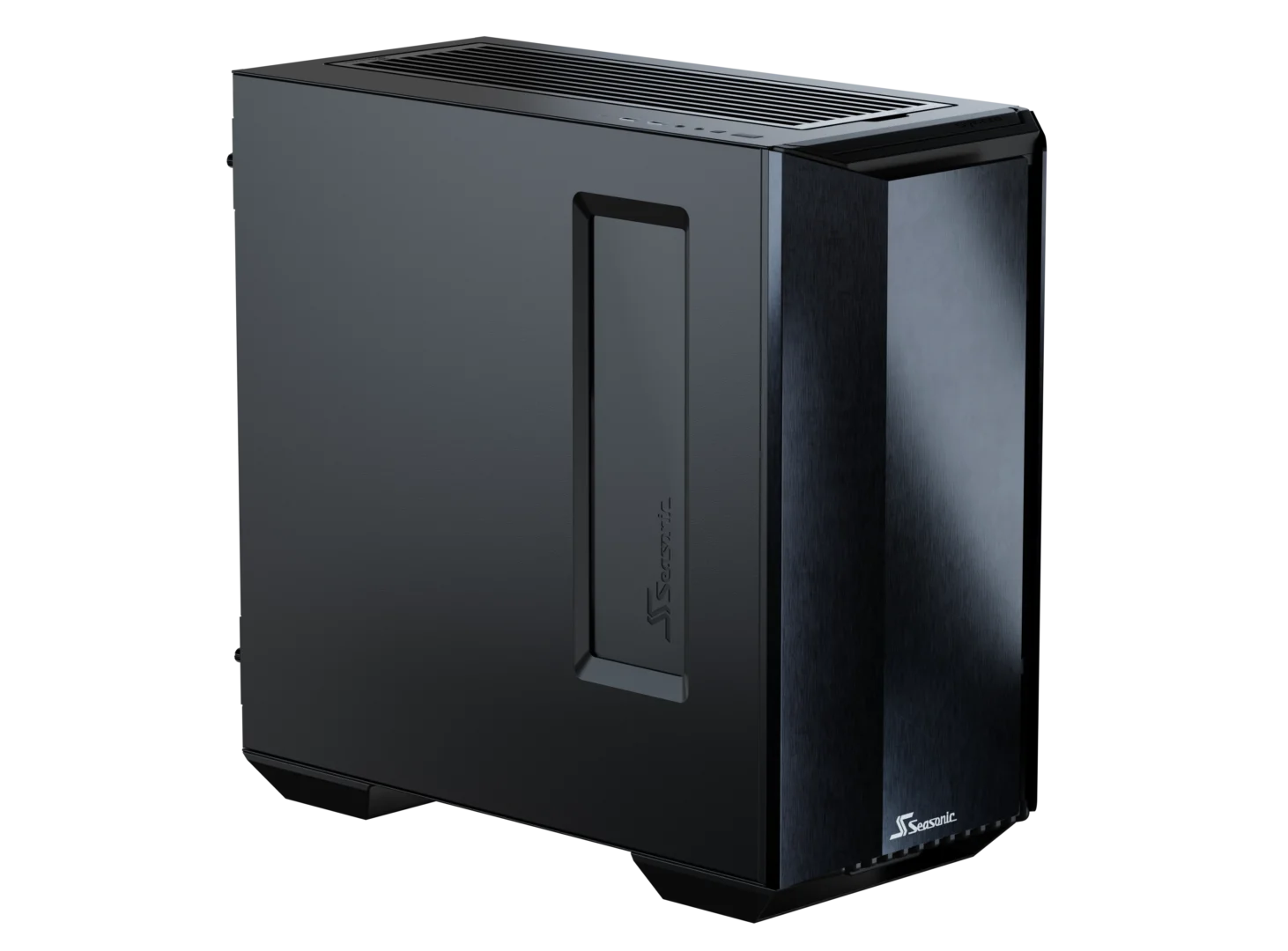

| Cable Management Cover | 1 | |
| PSU Shroud | 1 | |
| Motherboard and 2.5" SSD Screws | 20 | |
| Motherboard Standoff | 4 | |
| 3.5" HDD Screws | 18 | |
| Power Supply Screws | 4 | |
| Reverse Fan Screws | 4 | |
| Cable Tie | 6 | |
| User Manual | 1 | |
| Fabric Gloves (Pair) | 1 | |
| Soft Cloth | 1 | |
| Warranty | ||
| SYNCRO Q704 | 2 Years |
-
