S12III SERIES
The S12III Series is available in the standard ATX Form Factor and in wattages that are common for a PC system. The Seasonic S12III Series achieves the 80 PLUS® Bronze standard, providing at least 82%, 85%, and 82% power usage efficiency at 20%, 50%, and 100% operating loads, respectively.
This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to reduce energy waste, resulting in savings on energy costs for users. Additionally, the S12III units utilize the LLC resonant converter design and the industry’s leading Smart and Silent Fan Control (S2FC) for optimal performance and quiet operation.
-
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.80 PLUS® Bronze Certified
-
Warranty
5 Years
-
CablingFixed cables
-
140 mm (L) x 150 mm (W) x 86 mm (H)Dimensions
-
ATX Specifications
ATX 12 V
-
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill. -
5 Years
Warranty -
Fixed cables
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 12 V
ATX Specifications
-
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill. -
5 Years
Warranty -
Fixed cables
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 12 V
ATX Specifications
-
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill. -
5 Years
Warranty -
Fixed cables
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 12 V
ATX Specifications
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.
5 Years
Warranty
Fixed cables
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12 V
ATX Specifications
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.
5 Years
Warranty
Fixed cables
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12 V
ATX Specifications
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.
5 Years
Warranty
Fixed cables
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12 V
ATX Specifications
80 PLUS® Bronze Certified
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.
5 Years
Warranty
Fixed cables
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12 V
ATX Specifications
Cybenetics - S12III-650
S2FC - Smart And Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

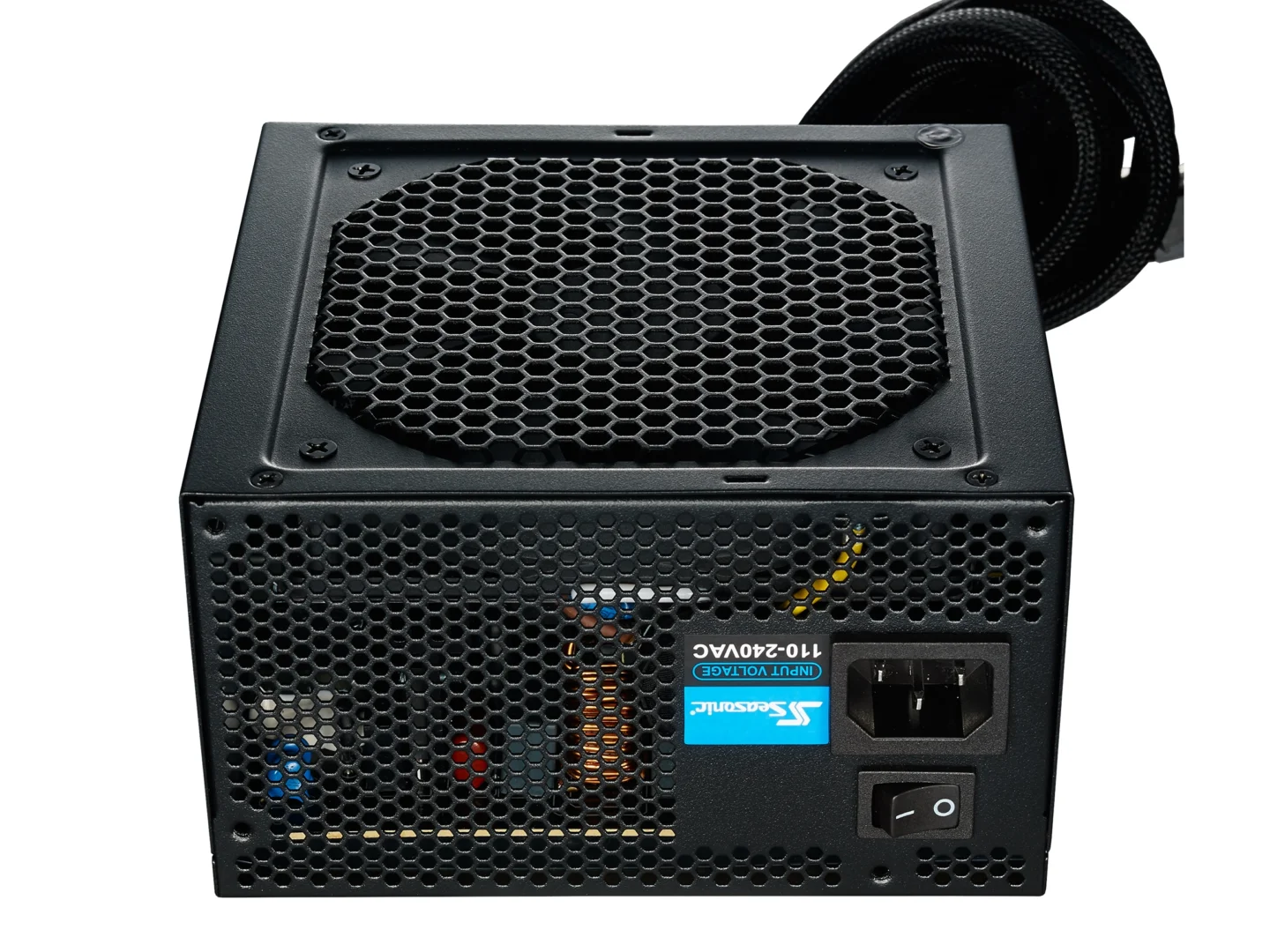

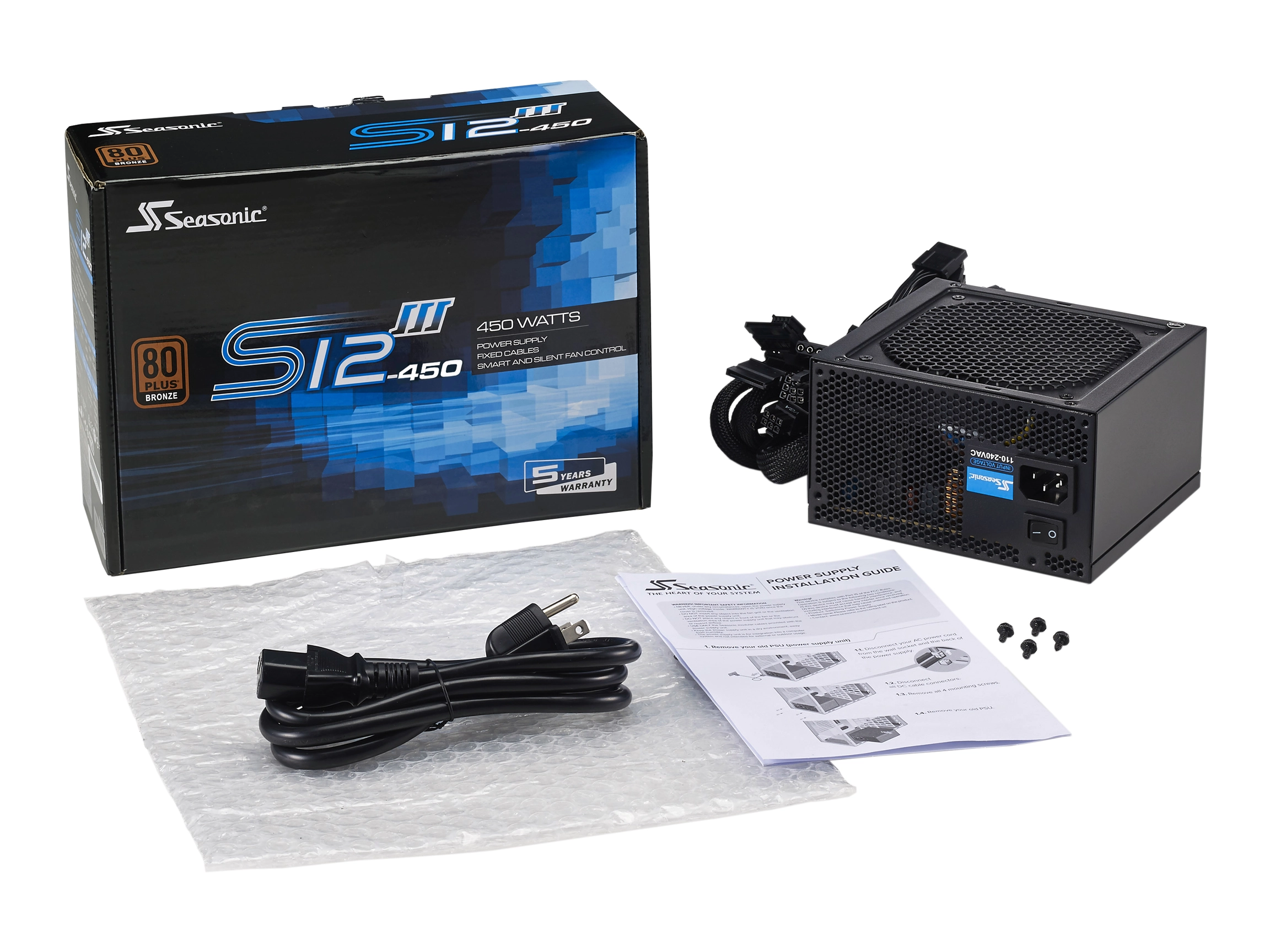

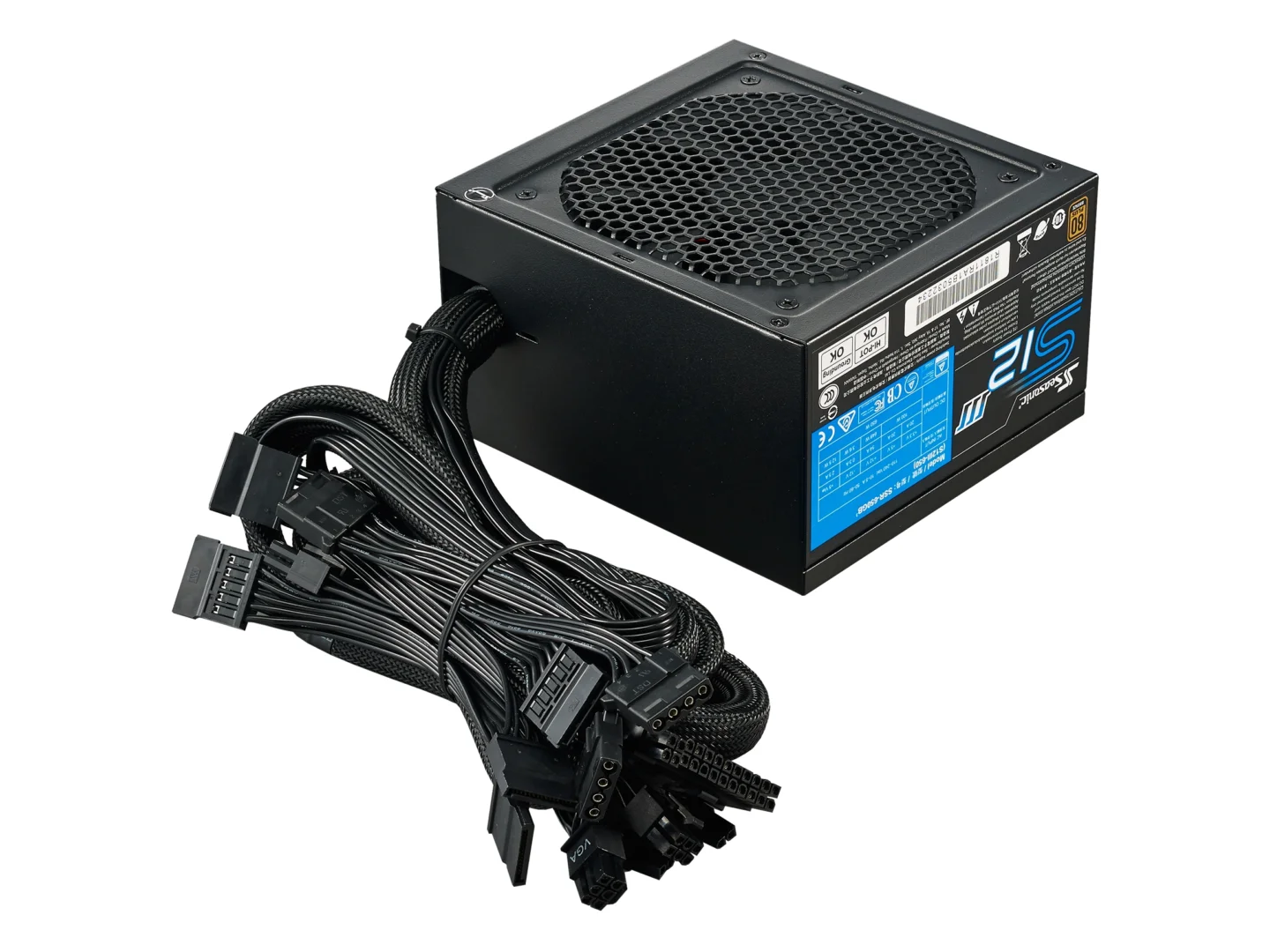

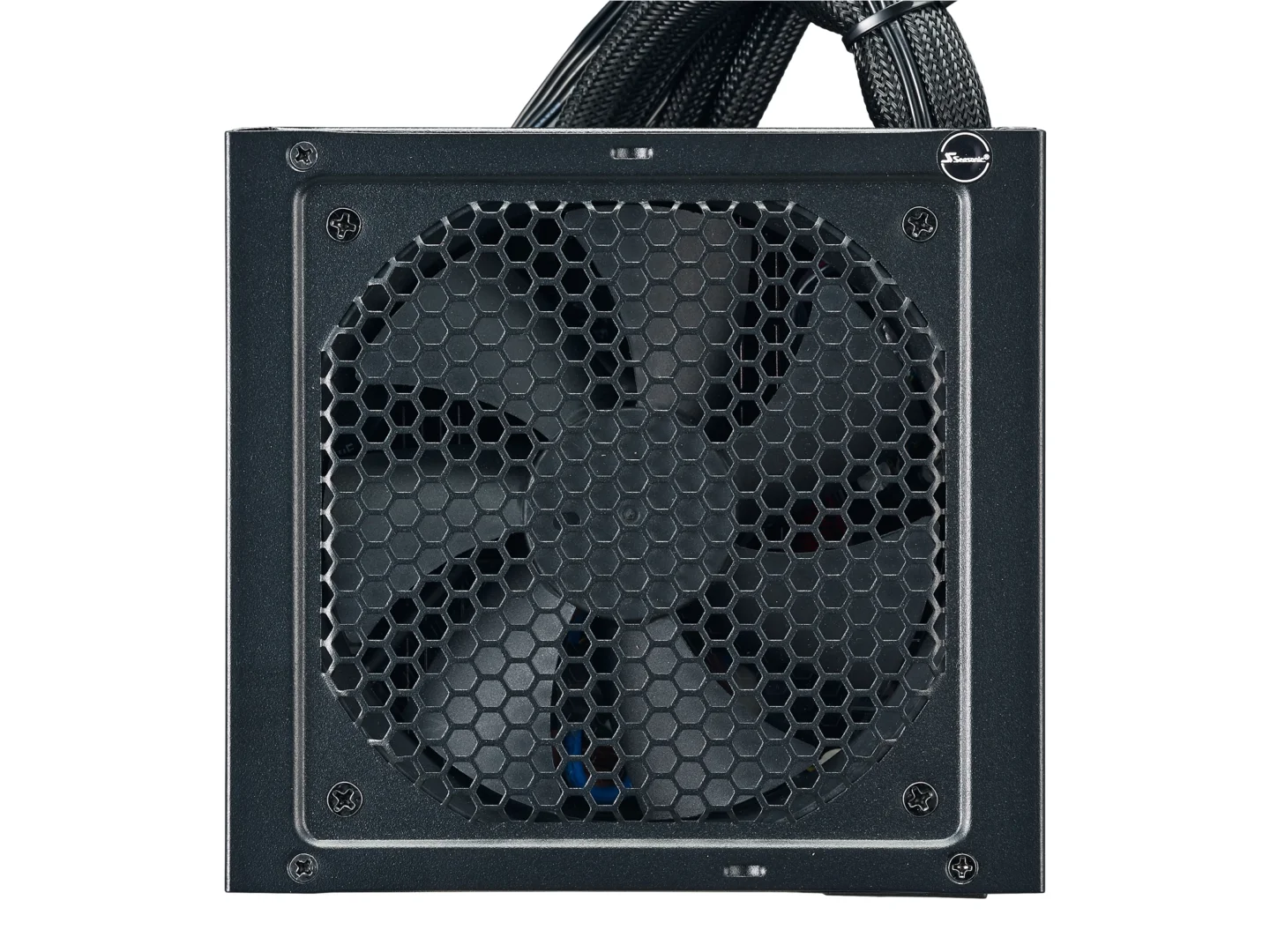

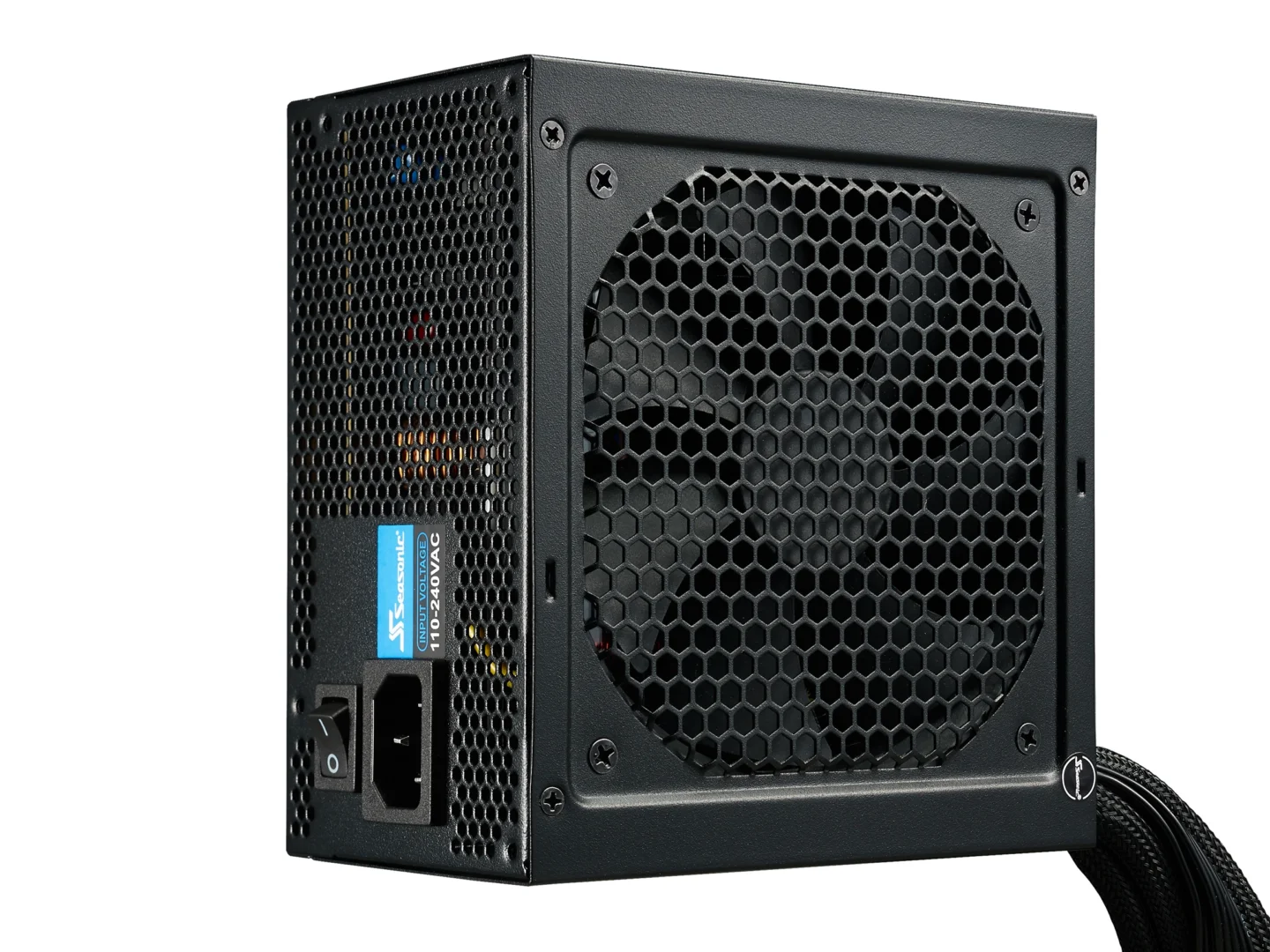

Gallery
650 W
550 W
500 W
450 W
0 /
0
0 /
0
0 /
0
0 /
0
Specifications
650 W
550 W
500 W
450 W
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Cybenetics Efficiency Level | Bronze | |
| Cybenetics Noise Level | Standard+ | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S2FC | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 30,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fixed Cables |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, Gost-R, CB, BSMI, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, REACH | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 110 V - 240 V | |||||
| 10 - 5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 2.5 A | |
| 100 W | 648 W | 3.6 W | 12.5 W | |||
| Total continuous power | 650 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S2FC | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 30,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fixed Cables |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, Gost-R, UkrTEST, CB, BSMI, Semko, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, REACH | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 110 V - 240 V | |||||
| 8 - 4 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 45.5 A | 0.3 A | 2.5 A | |
| 100 W | 546 W | 3.6 W | 12.5 W | |||
| Total continuous power | 550 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S2FC | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 30,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fixed Cables |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, Gost-R, CB, BSMI, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, REACH | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 110 V - 240 V | |||||
| 8 - 4 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 18 A | 18 A | 40 A | 0.3 A | 2.5 A | |
| 90 W | 480 W | 3.6 W | 12.5 W | |||
| Total continuous power | 500 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S2FC | |
| Fan Bearing | Sleeve Bearing | |
| Life Expectancy | 30,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fixed Cables |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, Gost-R, CB, BSMI, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, REACH | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 110 V - 240 V | |||||
| 6 - 3 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 18 A | 18 A | 35 A | 0.3 A | 2.5 A | |
| 90 W | 420 W | 3.6 W | 12.5 W | |||
| Total continuous power | 450 W | |||||
Cables
650 W
550 W
500 W
450 W
550 mm
MB (24/20 pins)
1 connector
1 cable
attached
600 mm
CPU (8/4 pins)
1 connector
1 cable
attached
700 mm
PCIe (8/6 pins)
2 connectors
2 cables
attached
690 mm
SATA
3 connectors
2 cables
attached
810 mm
Molex/Floppy
4 connectors
1 cable
attached
550 mm
MB (24/20 pins)
1 connector
1 cable
attached
600 mm
CPU (8/4 pins)
1 connector
1 cable
attached
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
attached
690 mm
SATA
3 connectors
2 cables
attached
810 mm
Molex/Floppy
4 connectors
1 cable
attached
550 mm
MB (24/20 pins)
1 connector
1 cable
attached
600 mm
CPU (8/4 pins)
1 connector
1 cable
attached
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
attached
520 mm
SATA
2 connectors
2 cables
attached
810 mm
Molex/Floppy
4 connectors
1 cable
attached
550 mm
MB (24/20 pins)
1 connector
1 cable
attached
600 mm
CPU (8/4 pins)
1 connector
1 cable
attached
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
attached
520 mm
SATA
2 connectors
2 cables
attached
810 mm
Molex/Floppy
4 connectors
1 cable
attached
-
