PRIME FANLESS PX
500 W
450 W
PRIME Fanless PX
The PRIME Fanless PX series utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Platinum efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
-
The PRIME Fanless PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.80 PLUS® PLATINUM
-
Warranty
12 Years
-
CablingFully Modular
-
140 mm (L) x 150 mm (W) x 86 mm (H)Dimensions
-
Design
True Fanless
-
80 PLUS® PLATINUM
The PRIME Fanless PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load. -
12 Years
Warranty -
Fully Modular
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
True Fanless
Design
80 PLUS® PLATINUM
12 Years
Fully Modular
Dimensions
True Fanless
80 PLUS® PLATINUM
12 Years
Fully Modular
Dimensions
True Fanless

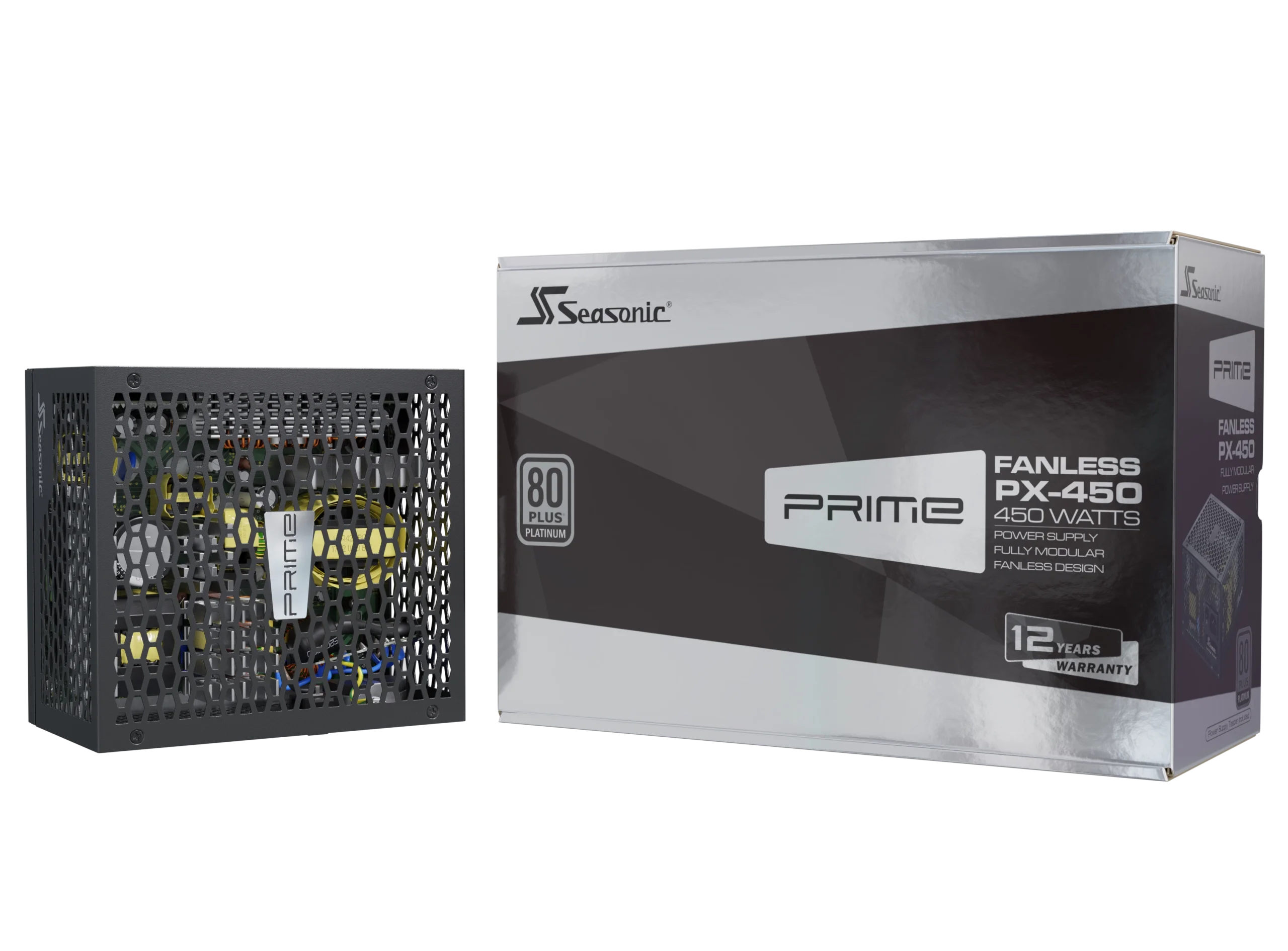

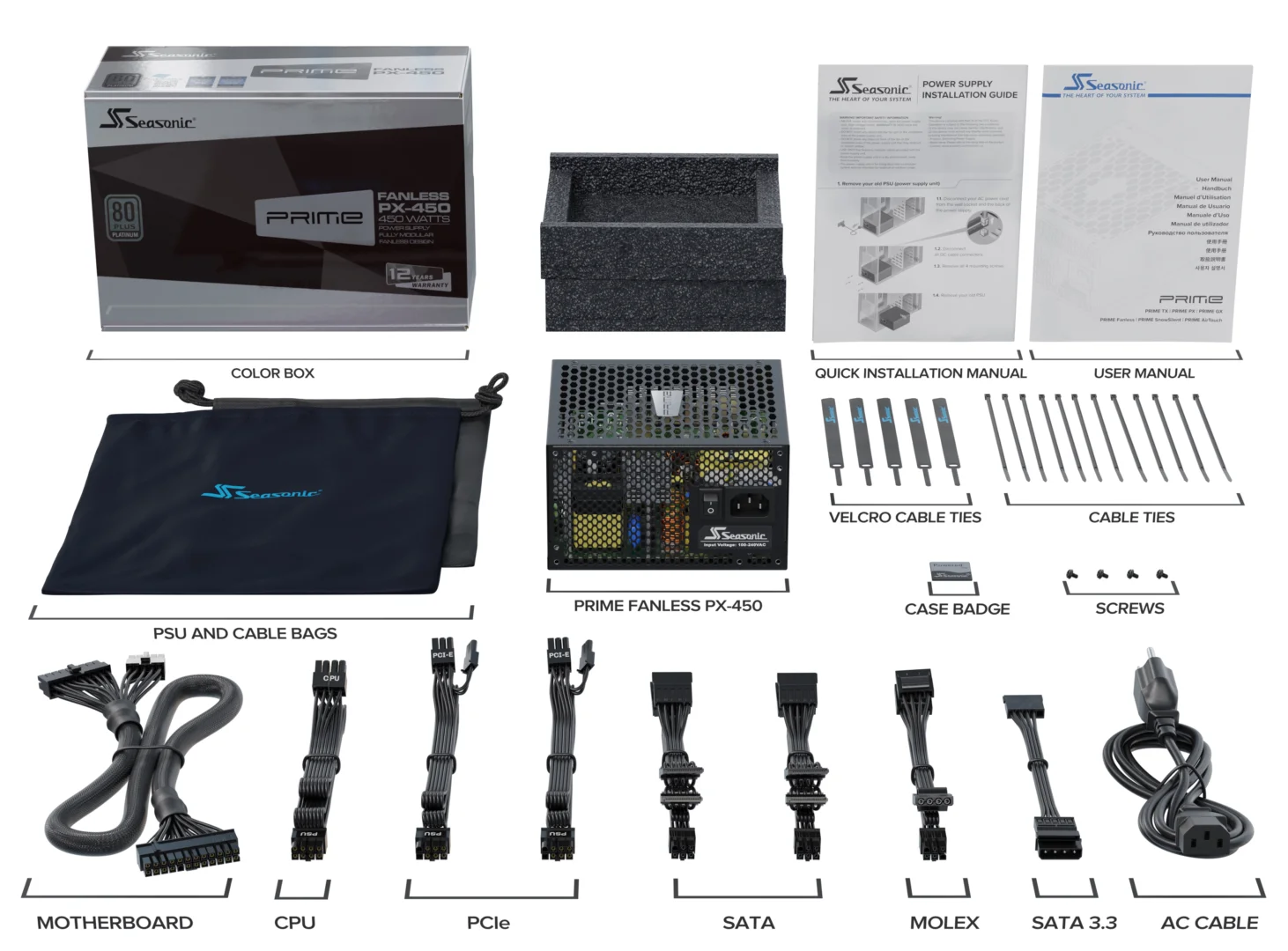

PRIME Fanless PX-500 Unboxing
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

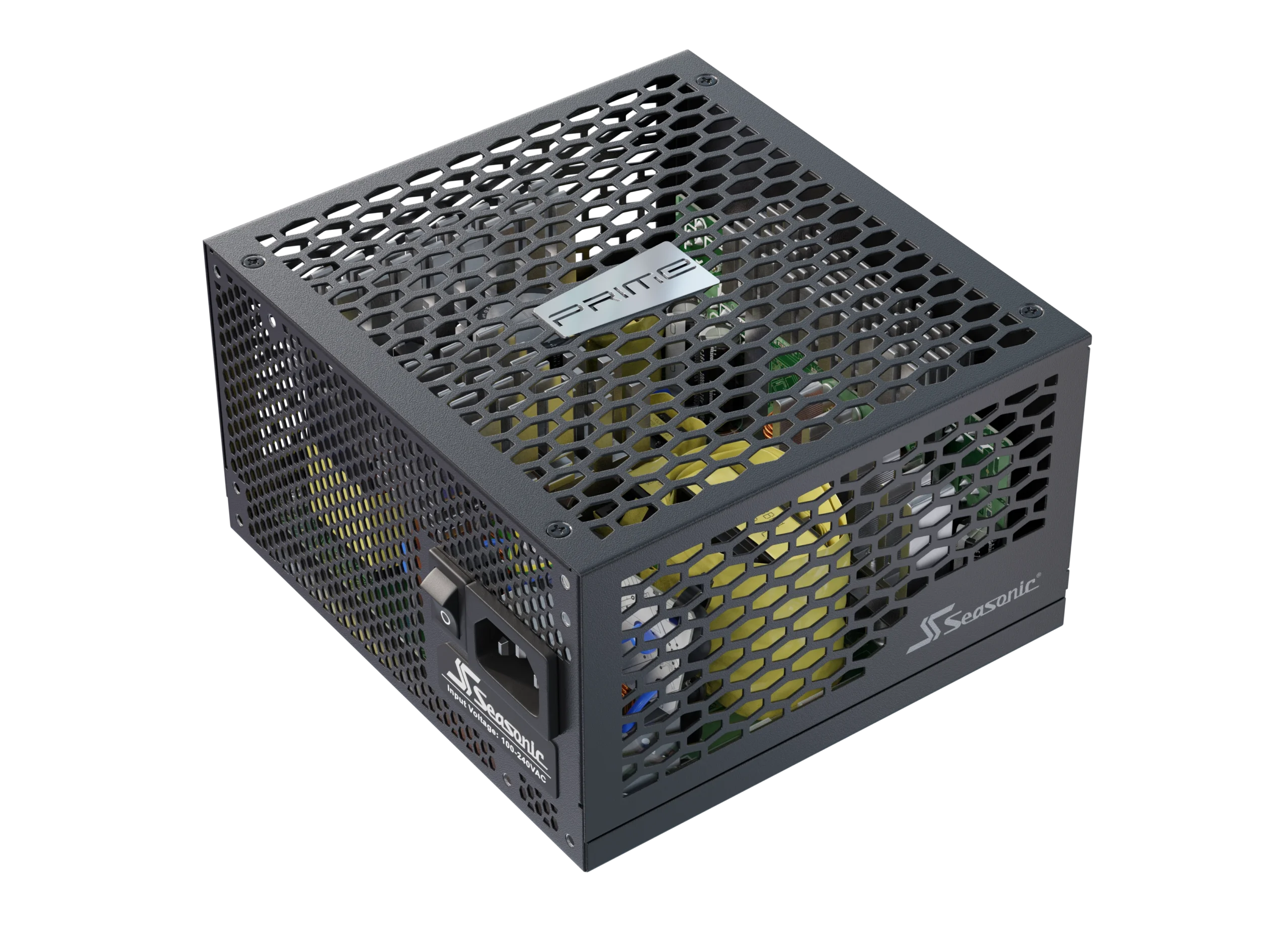

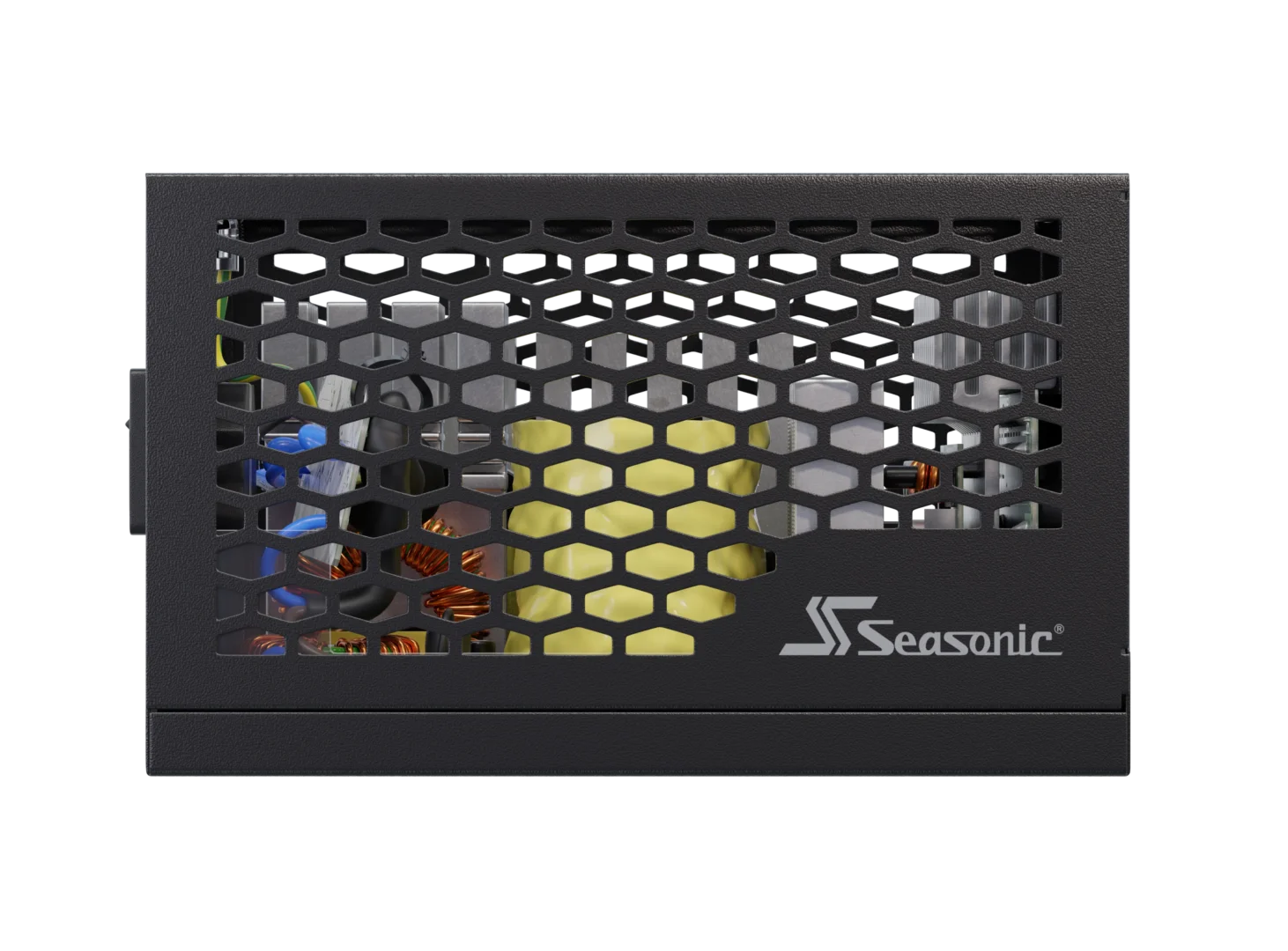

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.

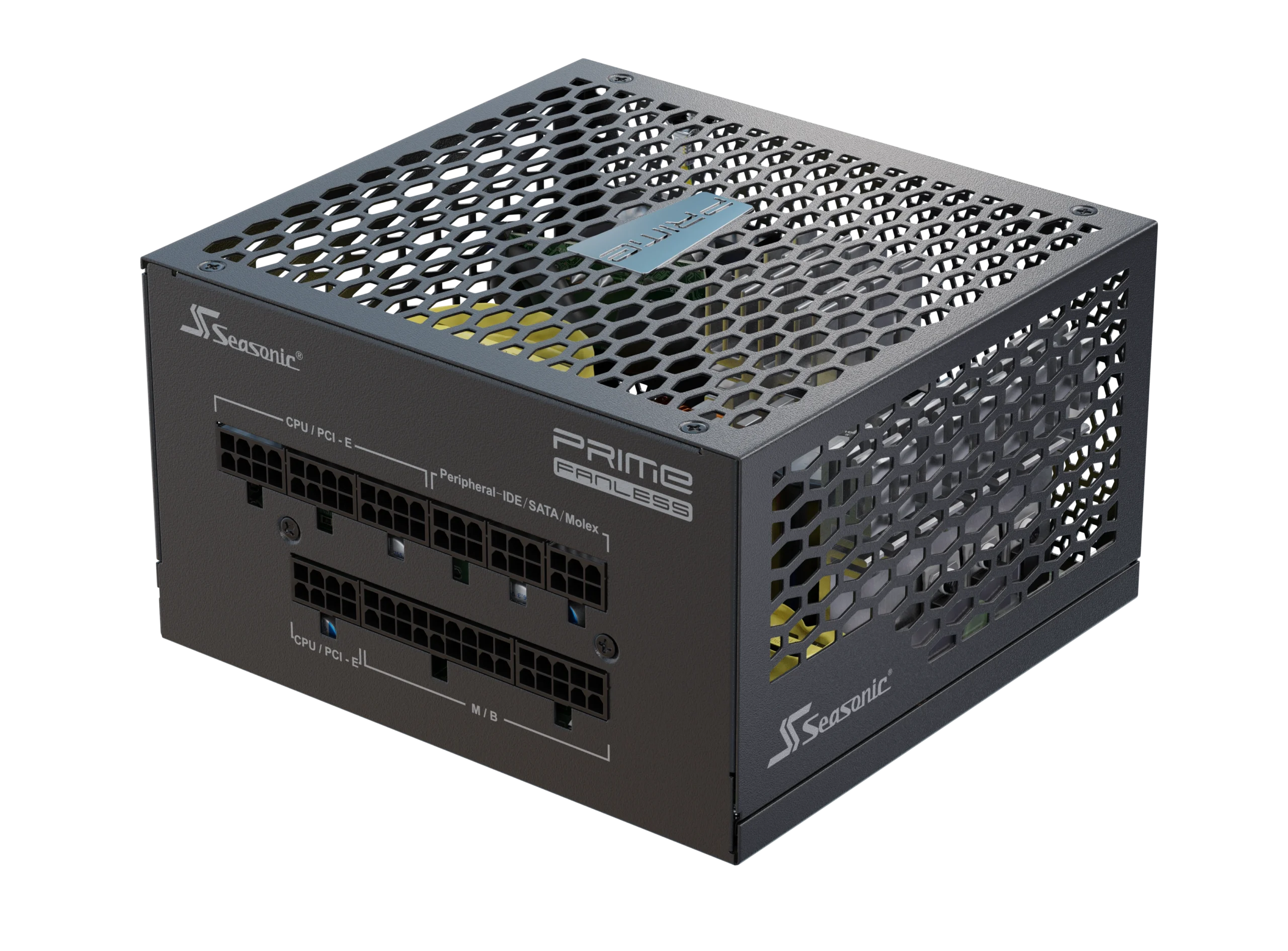

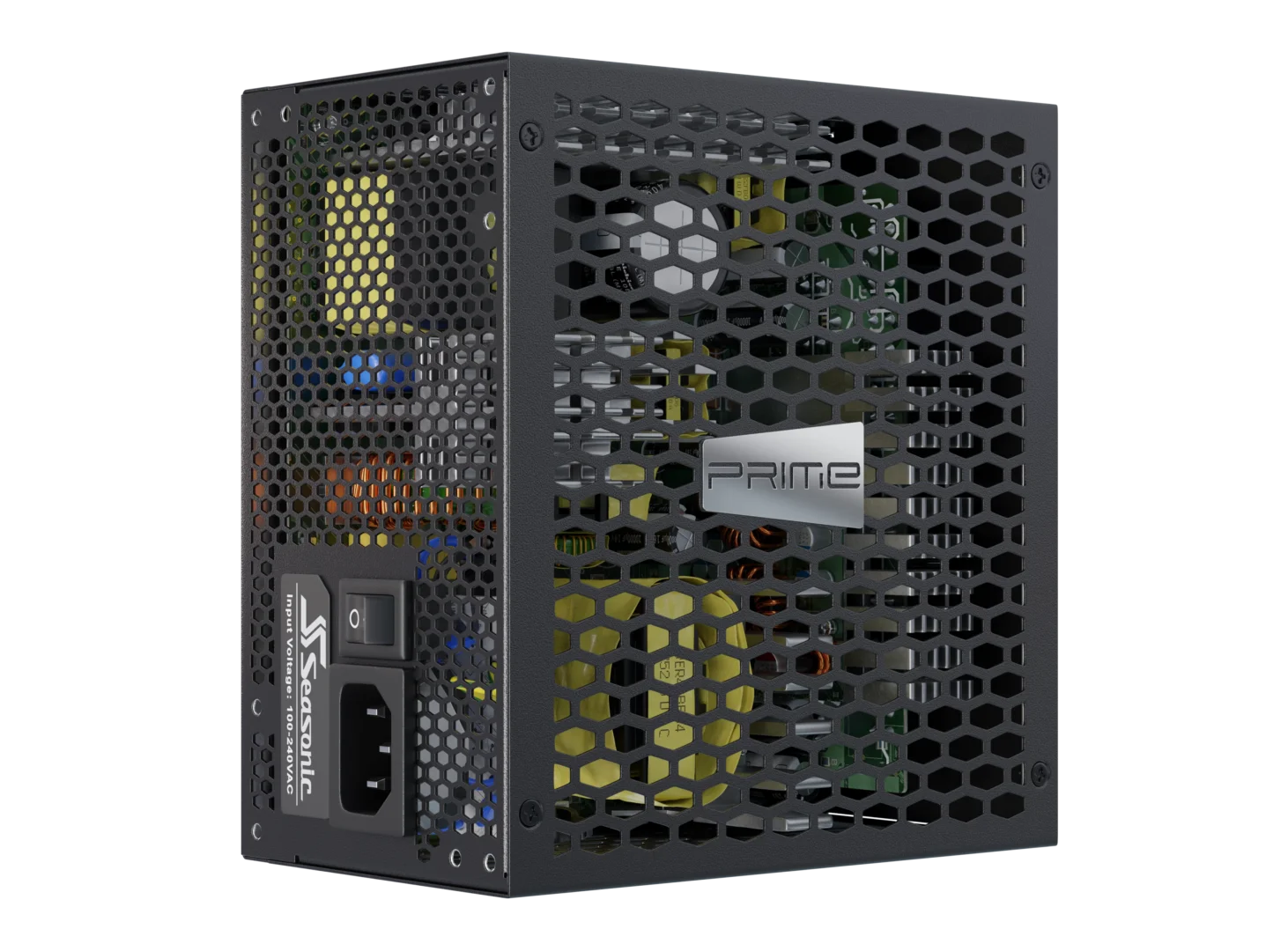

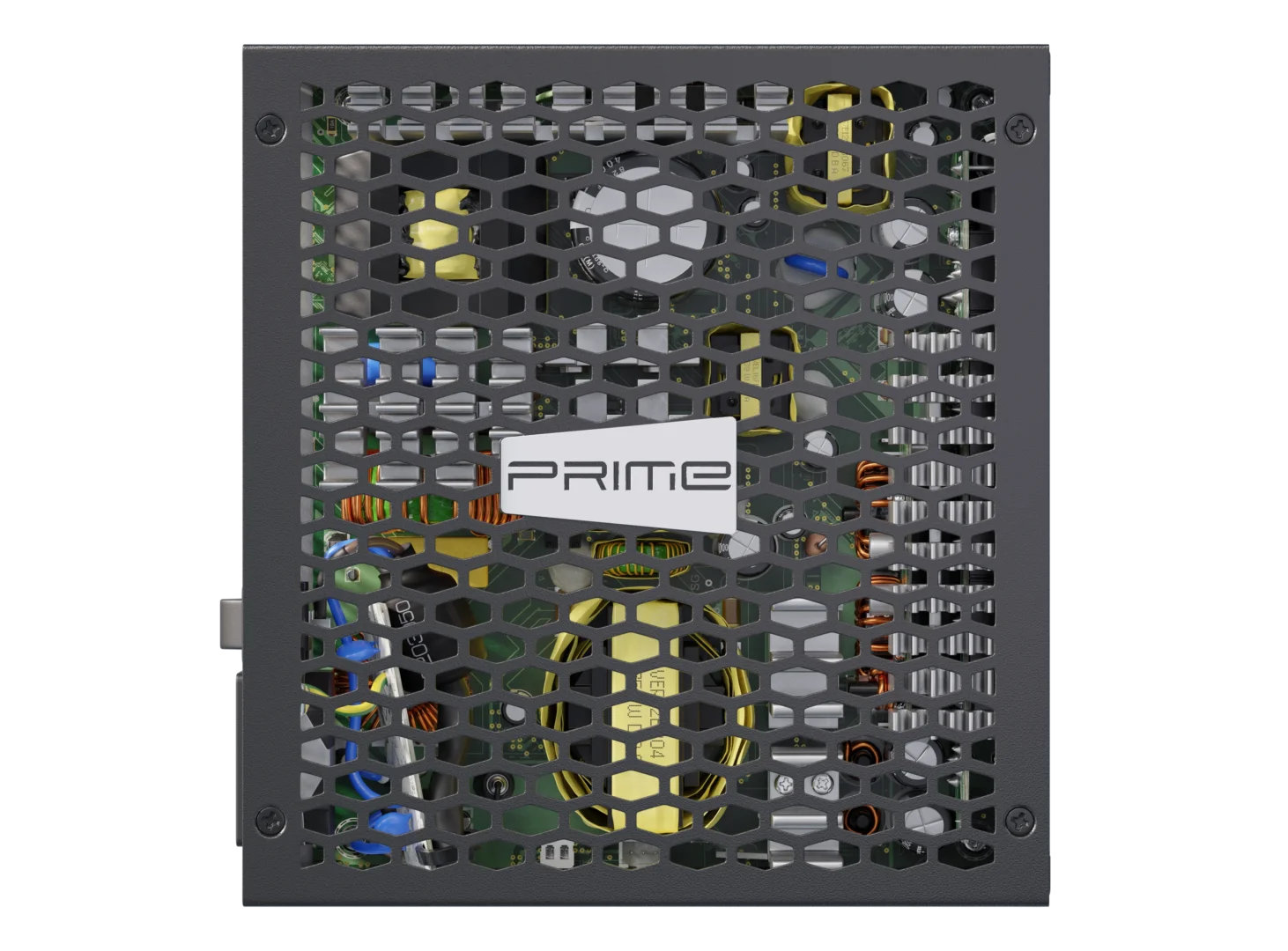

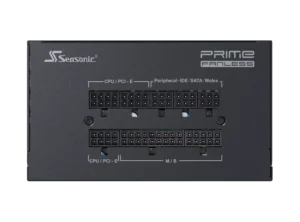

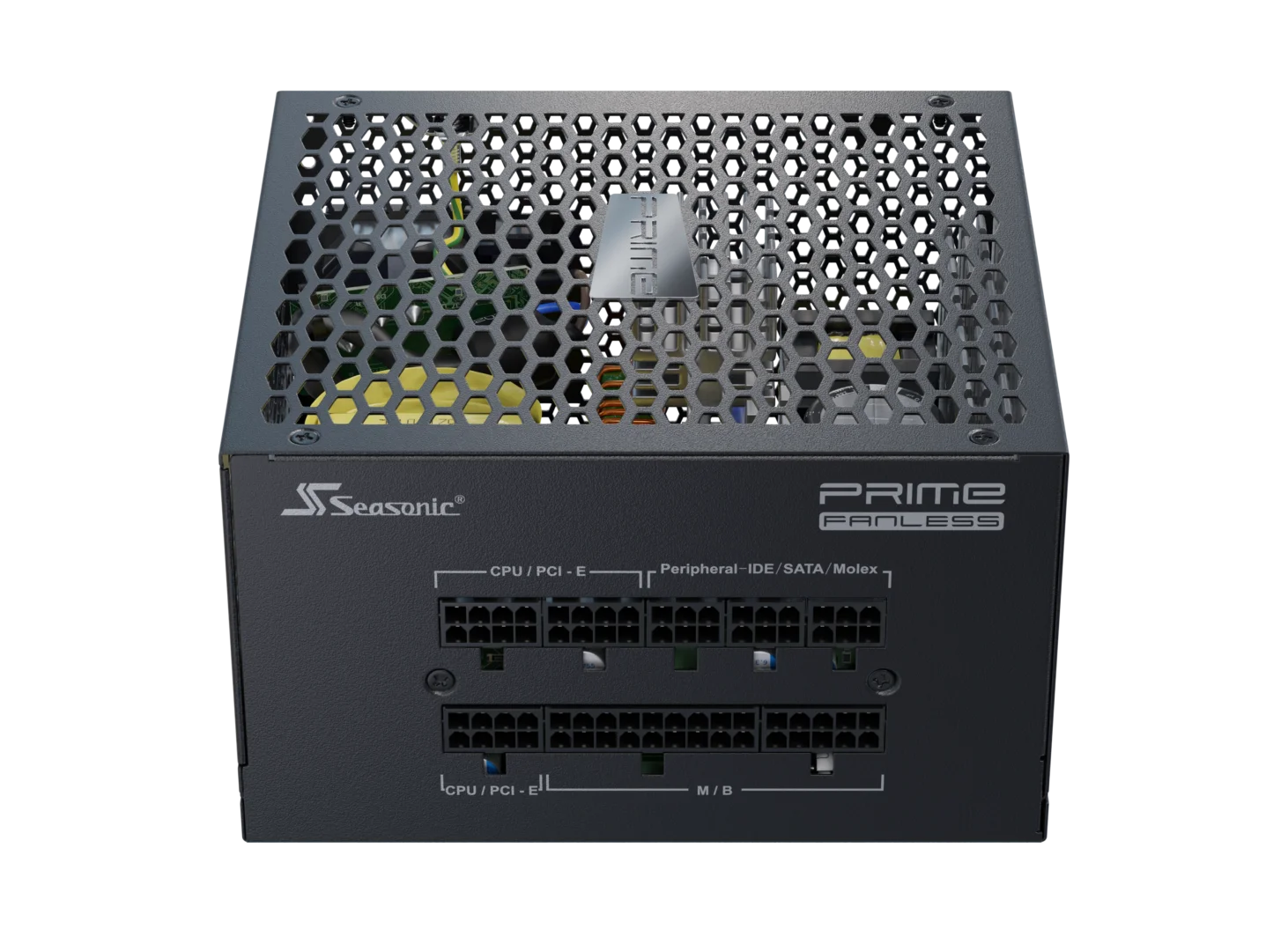

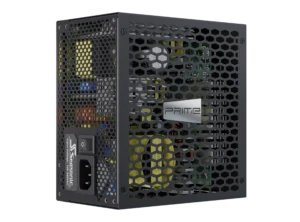

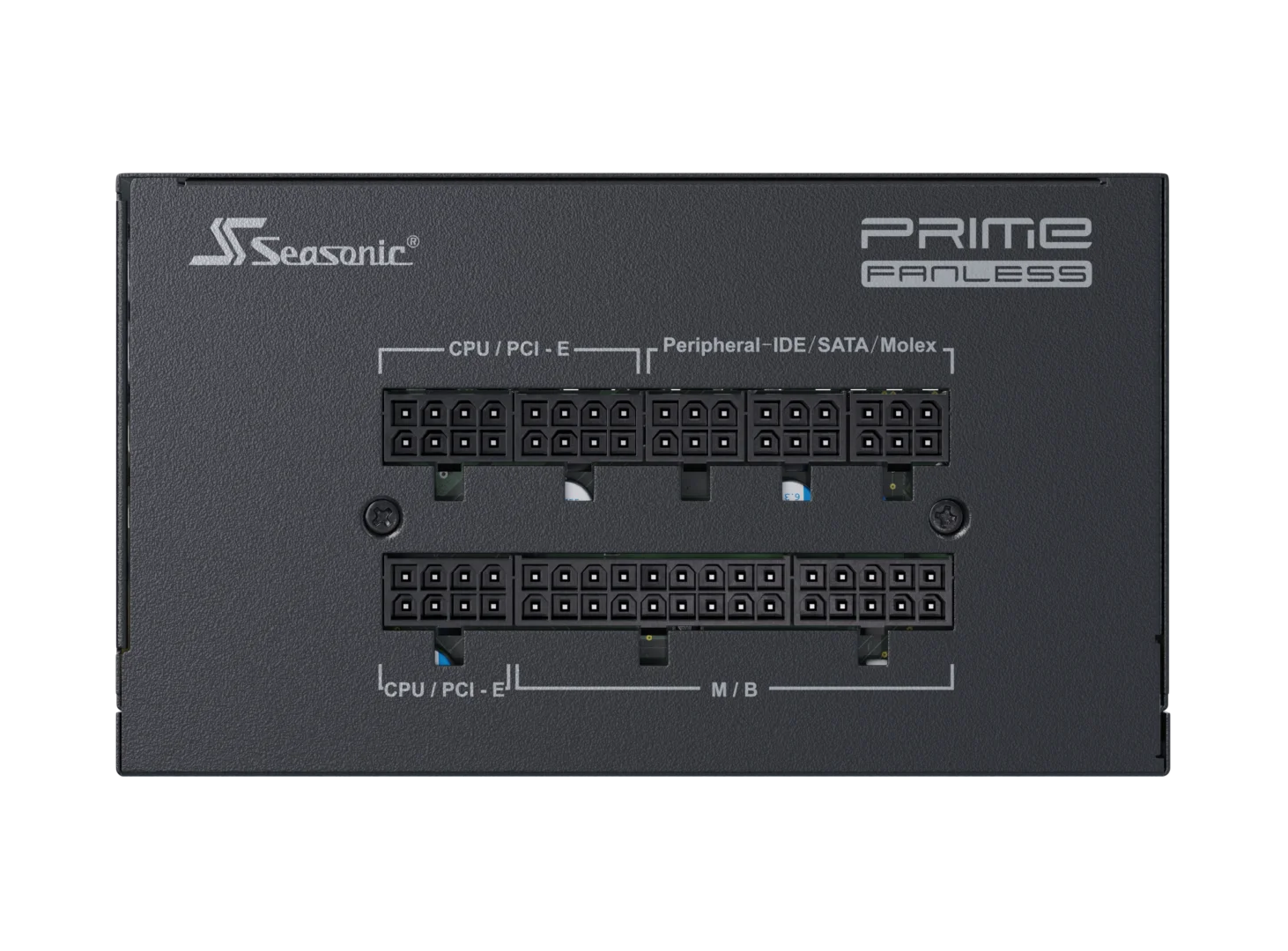

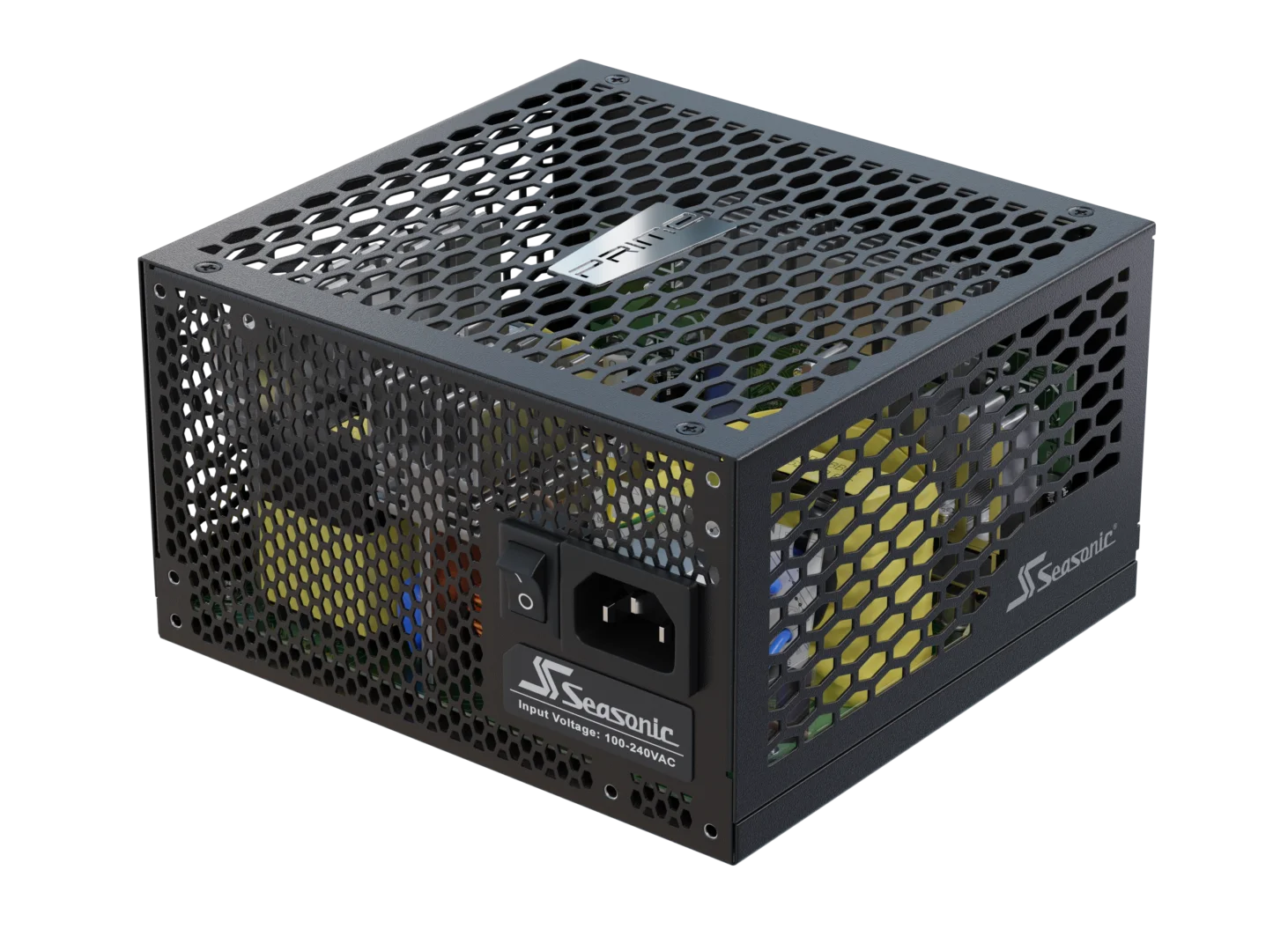

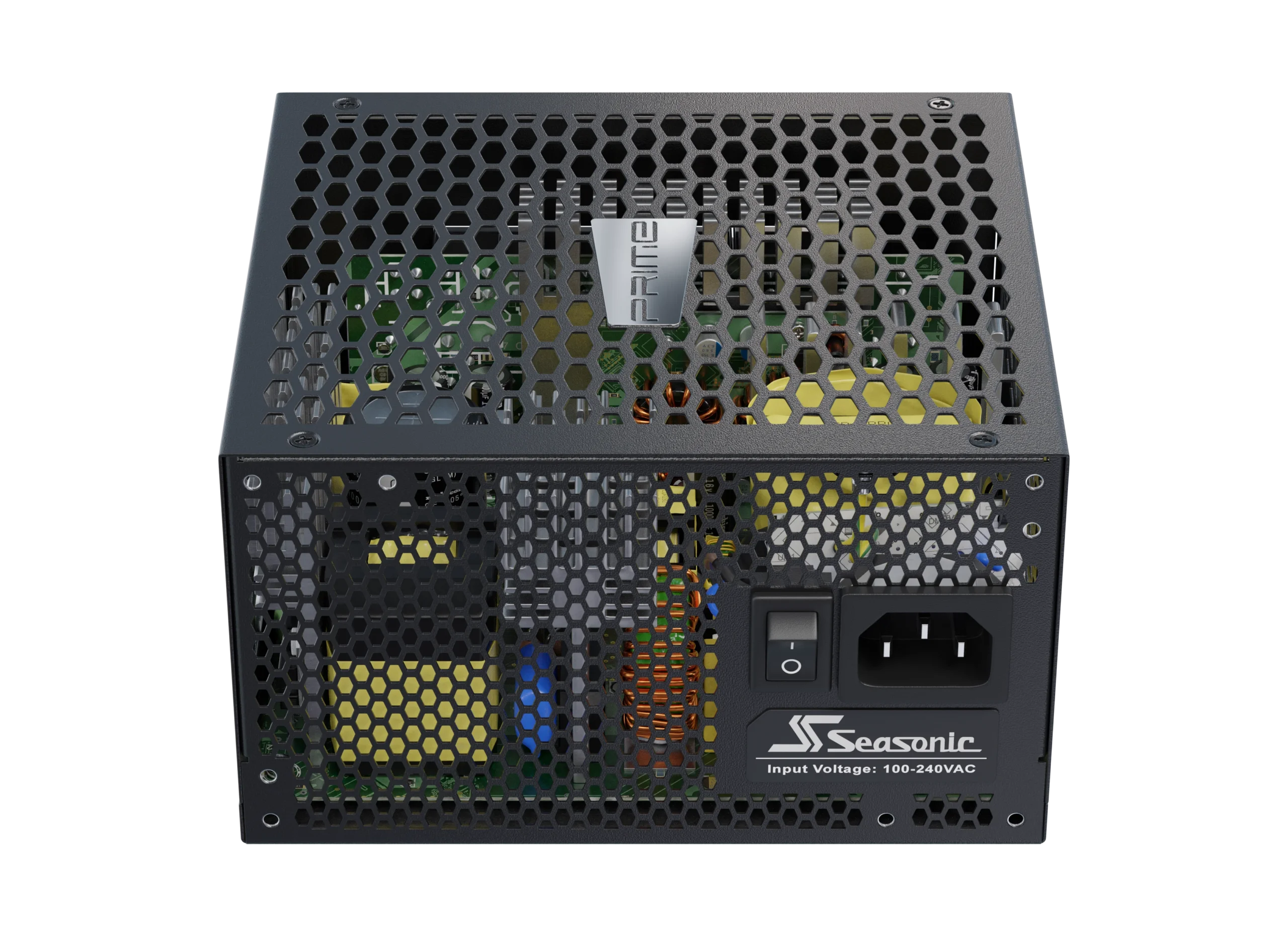

Gallery
500 W
450 W
Specifications
500 W
450 W
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Platinum | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Webbed cables (MB, CPU, PCIe) - Flat Black Cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 7 - 4 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A | |
| 100 W | 492 W | 3.6 W | 15 W | |||
| Total continuous power | 500 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Platinum | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Webbed cables (MB, CPU, PCIe) - Flat Black Cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 7 - 4 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A | |
| 100 W | 492 W | 3.6 W | 15 W | |||
| Total continuous power | 500 W | |||||

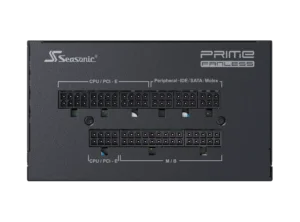

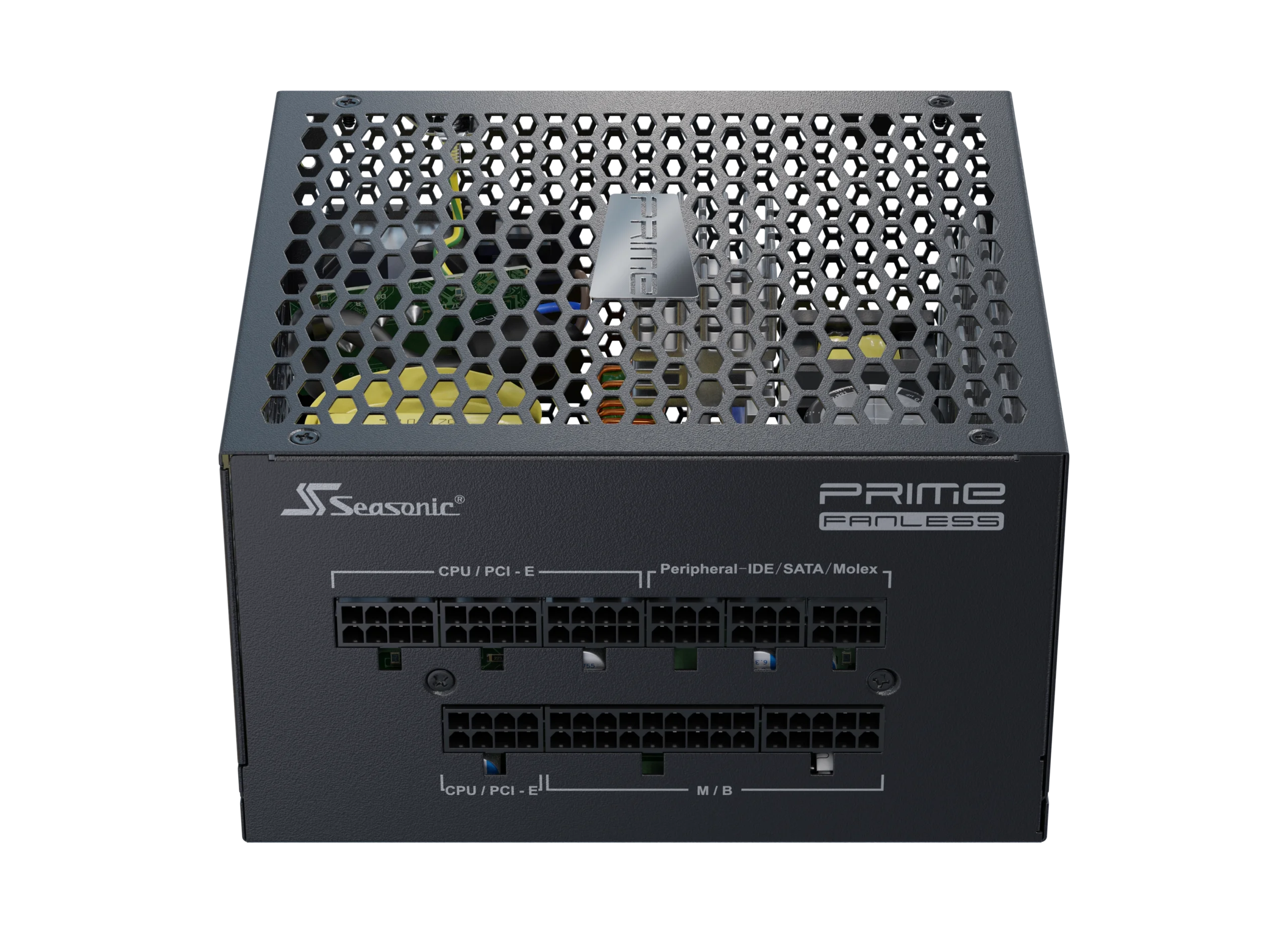

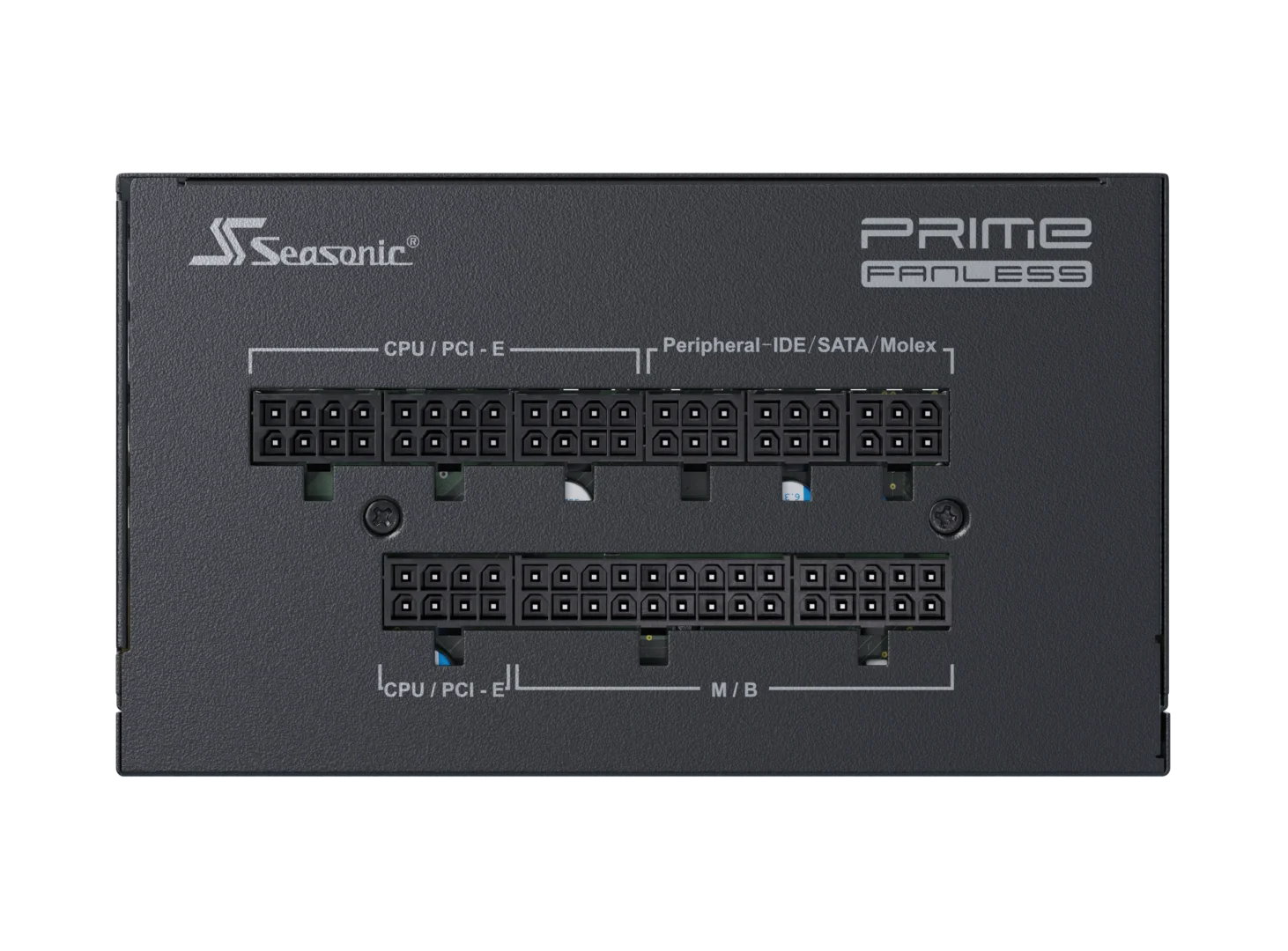

Cables
500 W
450 W
MB (24/20 pins)
CPU (8/4 pins)
PCIe (8/6 pins)
SATA
SATA
Molex
Molex to SATA 3.3 Adapter
MB (24/20 pins)
CPU (8/4 pins)
PCIe (8/6 pins)
SATA
SATA
Molex
Molex to SATA 3.3 Adapter
-
