Seasonic Native 12V-2×6 Cable
A Single Connector To Power Them All
Native 12V-2x6 Cable
Seasonic introduced the native 12V-2×6 600 W graphics card cable to power high-performance GPU / graphic cards. This cable can be used with any of our ATX 3.0 or 3.1 power supplies released on the market. Please see below for important compatibility information.
The new 12V-2×6 cable (ATX 3.1) is fully backward compatible with the previous 12VHPWR connector (from ATX 3.0). This means you can safely use a 12V-2×6 cable with devices designed for 12VHPWR.
A Single Connector To Power Them All
With the arrival of the new ATX 3.1 / PCIe 5.1 specifications, some graphic cards will now be powered by the new 12V-2x6 connector. Offering up to 600 W of power, the Seasonic native 12V-2x6 cable has been crafted with high quality materials, such as high current terminal connectors and 16 AWG wires to ensure highest performance and safety in usage.
Please see Sea Sonic's compatibility recommendations below:
Please see Sea Sonic's compatibility recommendations below:
Compatible with any Seasonic ATX 3.0 or 3.1 power supplies
The native 12V-2x6 90-Degree cable is rated at 600 W.
This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W.
If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W.
If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.
Compatible series (650 W and higher)
Seasonic PRIME TX ATX 3.0 or 3.1
Seasonic PRIME PX ATX 3.0 or 3.1
VERTEX GX, PX, GX White and Sakura
FOCUS GX ATX 3.0 or 3.1 and White ATX 3.0 or 3.1
CORE GX ATX 3.1 and White ATX 3.1
Not compatible series
Any Seasonic ATX 2 Power Supplies
12V-2x6 (H++) Cables
Seasonic 12V-2x6 (H++) Cables to Power the Latest Graphics Cards
Recommended Installation of the Native 90° 12V-2X6 (H++) Cable
- The 12V-2x6 cable is designed to work perfectly when installed correctly. The usage or this cable is exclusively beneficial when both the power supply and the graphics card are equipped with matching 12V-2x6 connectors. To ensure the safe and effective use of the cable, please follow these recommendations:
- Both 12V-2x6 connectors must be plugged at all times.
- Ensure that all connectors are INSERTED, CLICK-LOCKED, and SEATED properly.
- Avoid bending or applying force to the cable too close to the connector.
- Once the cable is plugged into place, DO NOT bend it in any direction.
| Specifications | |
|---|---|
| Connectors | 1x 12V-2x6 to 1x 12V-2x6 - High Current Terminal connectors |
| Gauge | 16 AWG |

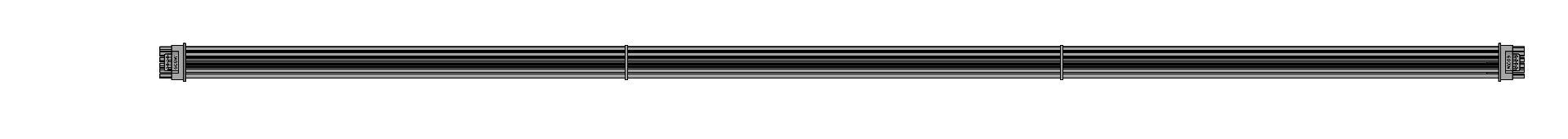

| Length | 700 mm |
| Warranty | 2 Years |
| Color | Black |
| Connector(s) per cable | 1 |
| Total Length (mm) | 700 |
| Number(s) of cable(s) included | 1 |
 |
|
-
