Learn all the key details about the Seasonic PRIME TX Series and how it powers high-performance gaming rigs.

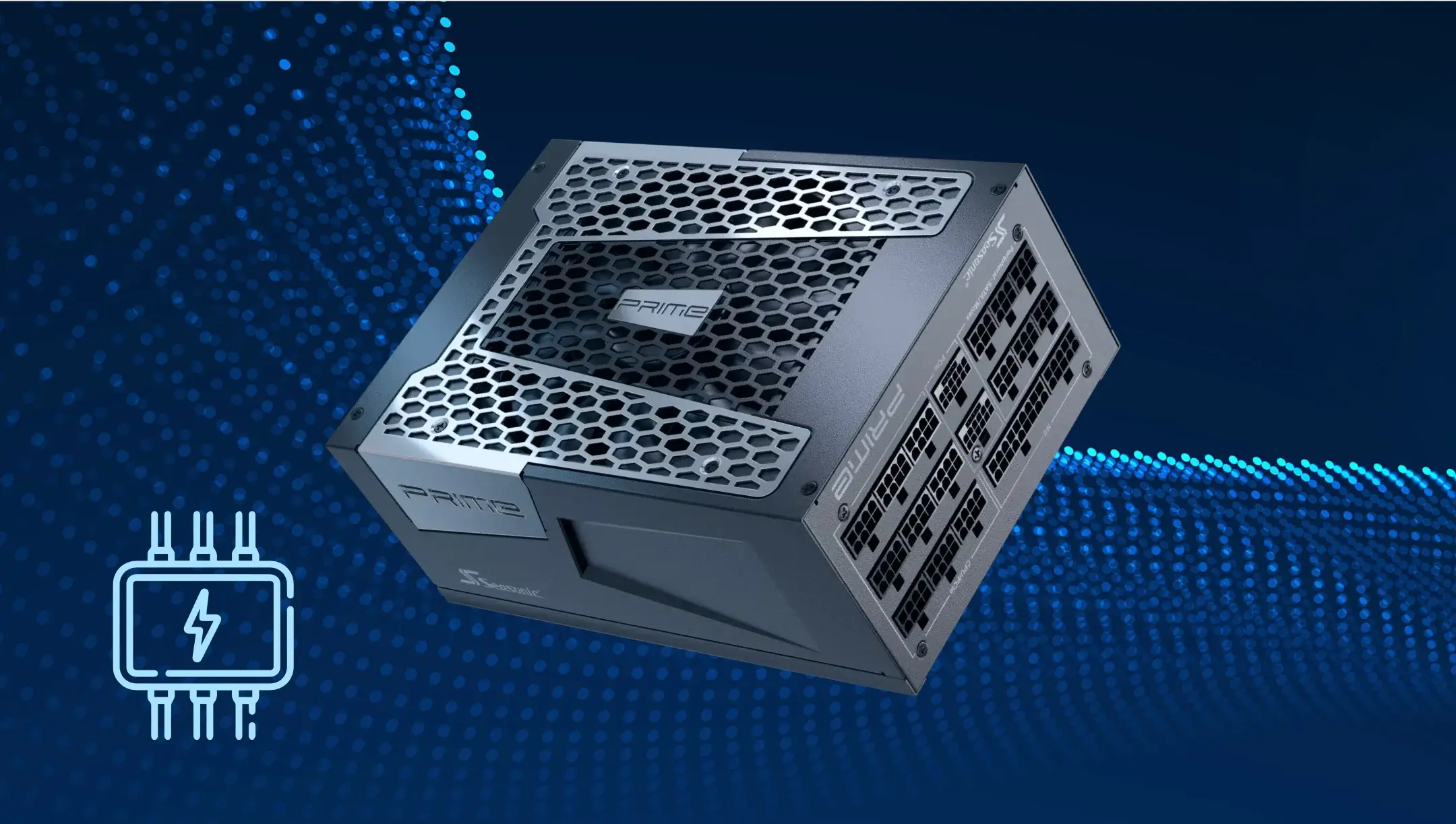

What makes the Seasonic PRIME TX special?

The Seasonic PRIME TX Series offers premium power supplies that provide exceptional efficiency and performance for any task, no matter how demanding. While powerful PSUs are often assumed to consume more energy, the 80 PLUS® Titanium certification ensures efficient power usage and whisper-quiet operation, even under heavy loads. This makes them ideal for gamers playing resource-intensive games or professional users tackling tasks that demand high-performance computations.

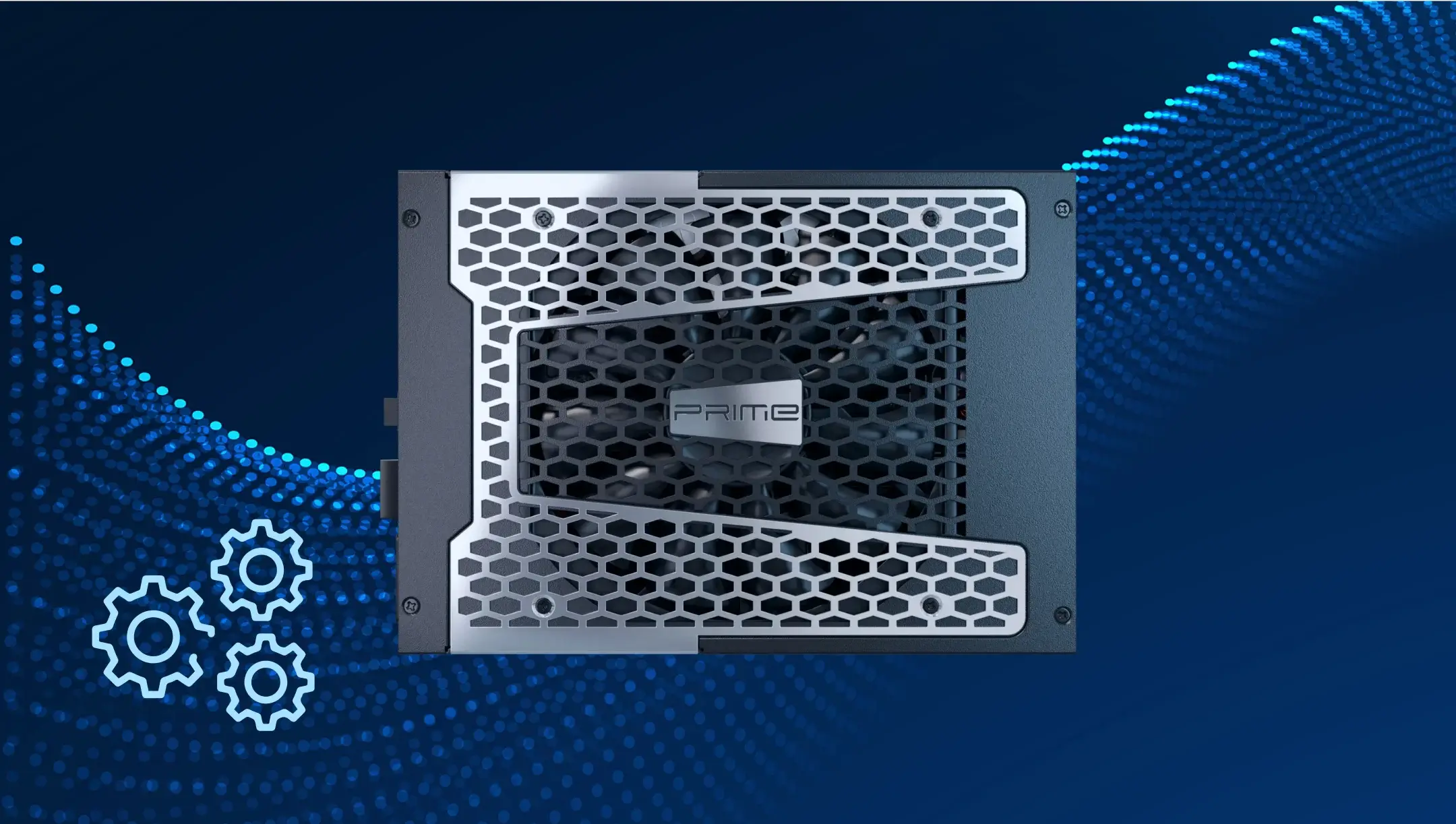

The design of the Seasonic PRIME TX PSUs prioritizes protection, compatibility, longevity, and efficient system cooling. Strategic material selection, heat-dissipating component placement, and optimized internal layout ensure low temperatures and excellent airflow. Beyond functionality, the design balances technical precision with aesthetics, featuring an optimized ventilation grille and component arrangement to minimize heat loss at high power levels.

Prioritizing both power and comfort, Seasonic engineers developed the following internal system for the PRIME TX power supplies:

1. High-quality Japanese electrolytic capacitors with a temperature rating of 105 °C for key components.
2. Power circuit – Full-Bridge LLC resonant primary stage; secondary – synchronous rectifiers at +12 V; +3.3 V, and +5 V – via DC-DC converters.
3. Fully modular cable system.
4. Sufficient number of PCIe, EPS, and SATA connectors to cover configurations with a large number of PC components.
5. Built-in 135 mm fan with Fluid Dynamic Bearing (FDB).
6. Full compliance with ATX 3.1 and PCIe 5.1 standards in new shipments, with a new type of 12V-2×6 connector included in the box.
7. Integrated protections, including OPP, OVP, UVP, OCP, OTP, and SCP, ensure reliability by preventing failures in critical scenarios.
8. Input voltage: 100-240 VAC, 50-60 Hz, can be used safely anywhere in the world.
9. Current: depending on voltage, approximately 15-10 A at ~115-240V.
10. Warranty from Seasonic – 12 years.

What power supplies do gamers choose for their PCs?

Professional gamers, some of the most demanding PC users, require PSUs that provide consistent power, exceptional stability, and peak efficiency. These qualities ensure smooth gameplay, responsive controls, and clear visuals for extended gaming sessions. Based on these needs and gaming styles, we recommend the following Seasonic PSUs.

1. If you play AAA projects with ray tracing, stream, and have an RTX 4090/5090 GPU or its equivalent, your best option is to choose a PSU from the PRIME TX series. For example, the Seasonic PRIME TX-1300 ATX 3.1 or the Seasonic PRIME TX-1600 ATX 3.1. units deliver everything that gamers need: sufficient power reserve, modern connectors, and stable performance at a variety of load levels.
2. For silent late-night gaming or streaming, opt for the Seasonic PRIME PX or PRIME TX series with Fanless or Hybrid Cooling modes. These premium models deliver powerful performance with minimal noise, even at peak PC loads.
3. If you prioritize FPS and speed over aesthetics, go for the Seasonic FOCUS GX-750 ATX 3.1 or GX-850 ATX 3.1. These power supplies offer ample reserve power, ideal for 144-240 Hz monitors and fast-paced games like CS2 or Apex Legends.
4. For compact gaming PCs (Mini-ITX or SFX cases), choose the Seasonic FOCUS SGX or SPX series. These power supplies deliver a perfect blend of small size and strong performance, ensuring reliable stability for intense gaming without dual GPUs or heavy overclocking.

Seasonic PRIME TX power supplies match gaming features

Our Seasonic PRIME TX series power supplies excel across diverse applications, from professional workstations and rendering to high-intensity gaming. These PSUs meet every user’s performance demands, delivering features that fulfill even the most discerning gamers’ expectations by providing:

Stable +12V power

In modern games, GPUs and CPUs push their limits in complex scenes packed with objects, effects, or during high-demand streaming. The Seasonic PRIME TX series, with Micro Tolerance Load Regulation, keeps voltage fluctuations under 0.5 %, delivering lag-free performance and seamless gaming even under extreme peak loads.

Transient Response / Short-term peaks

In high-stakes gaming moments like action-packed scenes, GPUs require sudden power spikes. The Seasonic PRIME TX series PSUs deliver instant power boosts, preventing voltage or FPS drops. This ensures fluid performance, eliminating micro-delays during intense scenes.

Hybrid Fan Control / Fanless mode

In modern games, lighter games and simpler scenes impose moderate system loads, but constant fan noise can disrupt immersion. The Seasonic PRIME TX series PSUs keep the fan off up to 30 % load for silent operation, maintaining uninterrupted gaming focus. During intense scenes with peak GPU and CPU demands, the cooling system seamlessly ramps up to deliver optimal performance.

ATX 3.1 / PCIe 5.1 compatibility

The Seasonic PRIME TX ATX 3.1 PSUs, featuring 12V-2×6 connectors and native ATX 3.1 support, provide consistent power for modern GPUs and high-performance builds. Even under heavy loads with demanding components, these PSUs prevent cable overheating and voltage drops, ensuring reliable operation.

80 PLUS® Titanium high efficiency

High-graphics modern games produce substantial system heat during long sessions. Seasonic PRIME TX PSUs, with up to 94 % efficiency, channel maximum power to PC components, which prevents overheating and performance drops, ensuring a seamless gaming experience.

Seasonic PRIME TX voltage regulation for high-performance gaming

To ensure smooth gaming and protect PC components during extended sessions, Seasonic PRIME TX PSUs employ Micro Tolerance Load Regulation. This keeps +12V rail voltage fluctuations below 0.5 %, even under peak GPU and CPU loads.

Voltage stability is vital for gamers during intense, effect-heavy scenes or fast-paced action. Unstable voltage can cause FPS drops, stuttering, or input lag. Seasonic PSUs deliver clean, stable power, ensuring seamless performance without interruptions, even when components run at full capacity in demanding games.

The advantages of the Seasonic PRIME TX power supplies for a gaming PC

Gaming PCs require superior power and performance, positioning the Seasonic PRIME TX series as the ultimate choice for uninterrupted gaming marathons because:

1. 80 PLUS® Titanium certification provides up to 94 % efficiency at 50 % system load.
2. With Micro Tolerance Load Regulation, voltage fluctuations are less than 0.5 %, which is crucial for powering high-performance components such as RTX 5090 GPUs.
3. Seasonic’s Hybrid Fan Control and Fanless models ensure minimal noise, even during high loads. Regardless of the game, these PSUs provide a quiet gaming experience while maintaining consistent cooling for PC components.
4. High-quality components, such as Nippon Chemi-Con capacitors, ensure stable power delivery and extended system lifespan. These capacitors store and release electrical charge to maintain a consistent voltage on the +12V line, effectively handling fluctuations or sudden GPU/CPU power spikes.
5. The Seasonic PRIME TX-1300 ATX 3.1 or the PRIME TX-1600 ATX 3.1 models effortlessly support dual graphics card configurations, making them ideal for gaming enthusiasts seeking maximum FPS in demanding games. They also provide a reliable foundation for future system rebuilds or upgrades.
6. ATX 3.1 and PCIe 5.1 compatibility ensure seamless integration with the latest components, making your system future-proof and upgrade-ready.

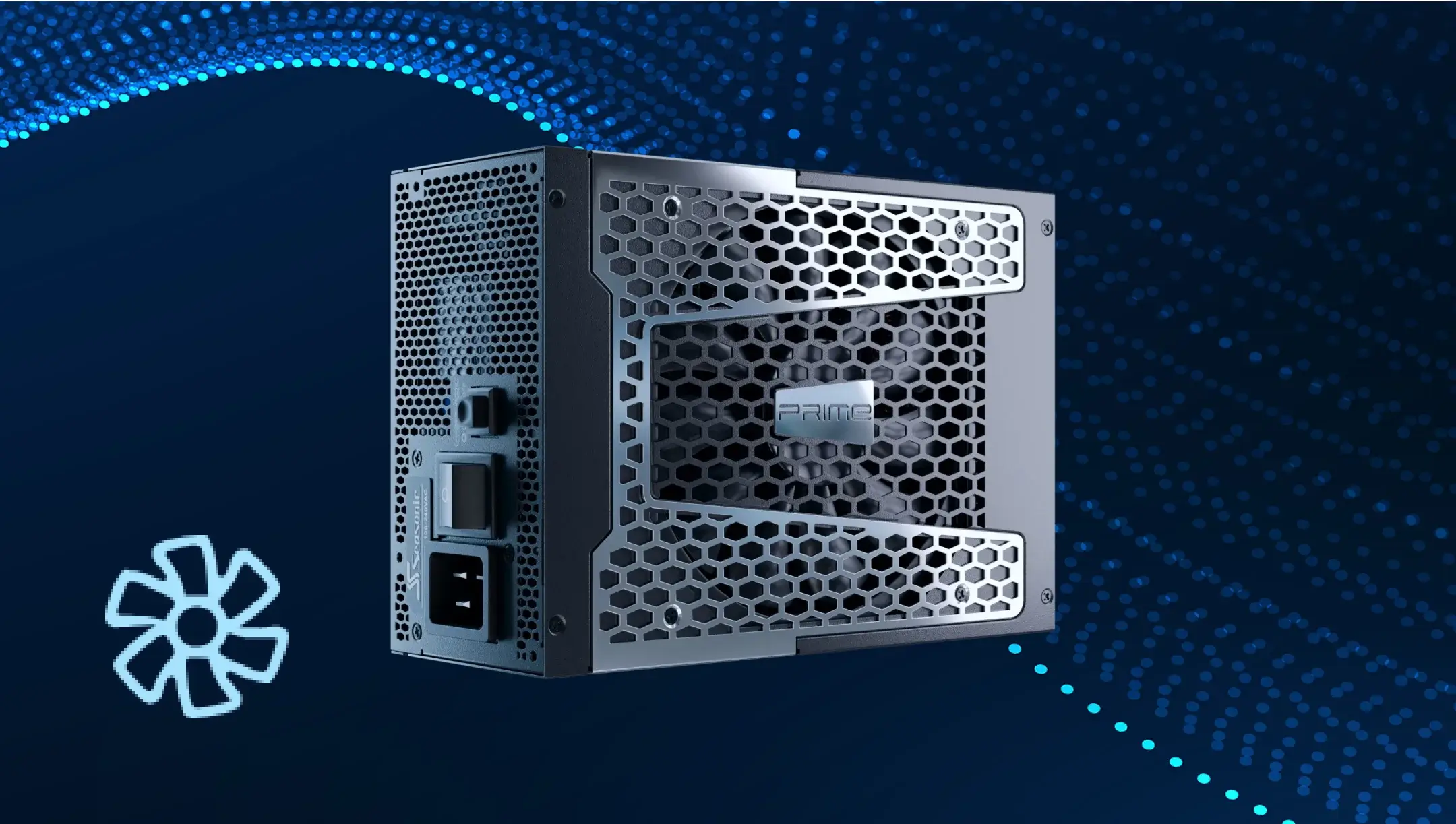

What cooling system does the PRIME TX use under heavy gaming loads?

Seasonic PRIME TX power supplies feature an advanced cooling system with Digital Hybrid Fan Control and passive cooling. Combined with premium components, these PSUs ensure consistent performance and stability during sudden load spikes.

The Digital Hybrid Fan Control allows effortless adjustment of noise levels and cooling efficiency to match your needs. For gaming, this technology ensures quiet operation while keeping components at optimal temperatures based on load. It offers three fan modes: Fanless, Silent, and Cooling.

• Fanless: The fan turns off at low loads, providing silent operation.
• Silent: The fan runs at minimum speed at medium loads.
• Cooling: The fan runs at maximum speed under high load for effective cooling.

Passive cooling in the Seasonic PRIME TX Fanless power supply uses passive cooling for heat dissipation without a fan, utilizing large aluminum radiators and an optimized power supply layout. This ensures silent, stable performance under moderate loads, which is ideal for quiet gaming or media setups.

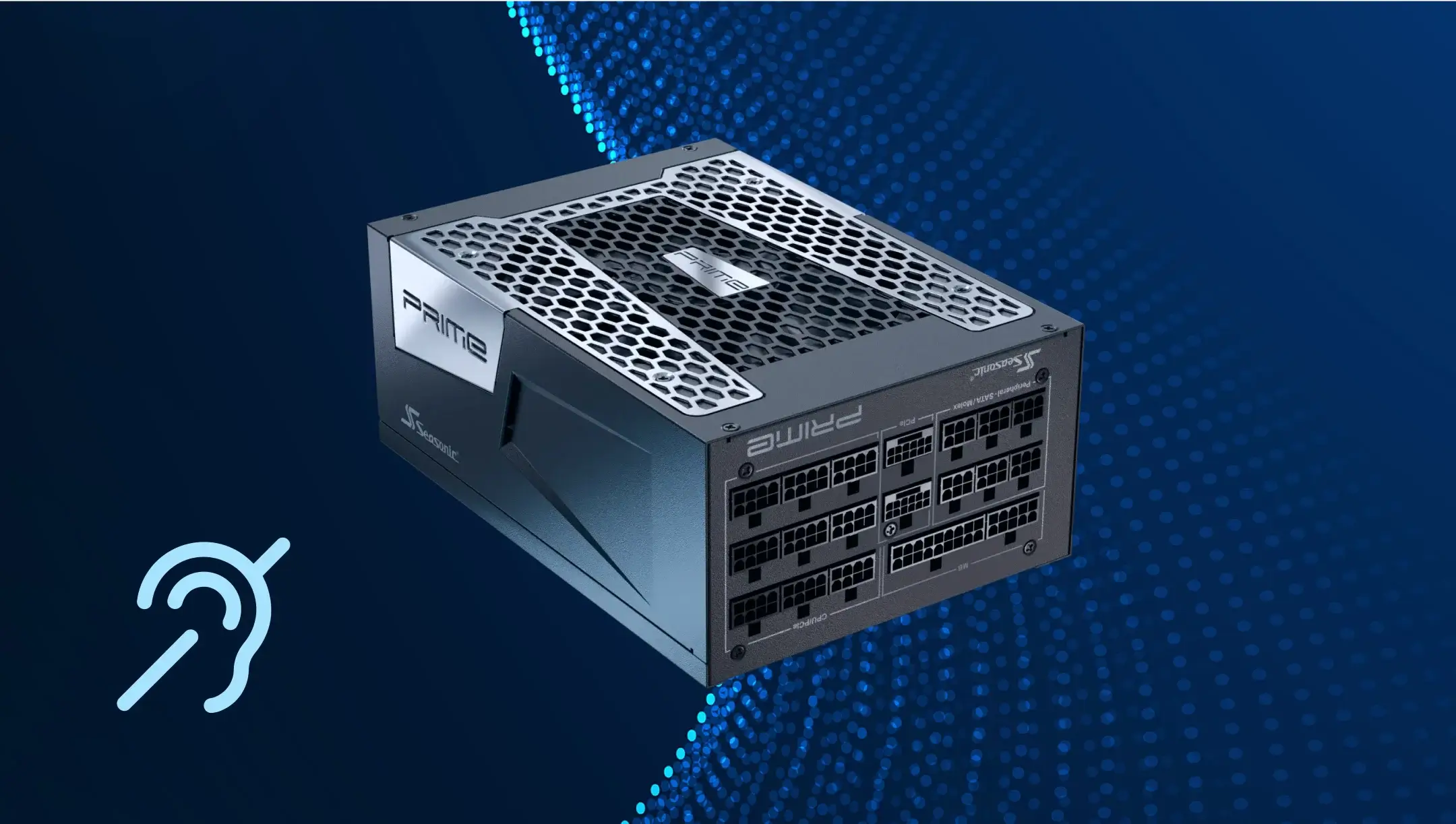

What noise control system does the PRIME TX use for gaming PCs?

The Seasonic PRIME TX features Digital Hybrid Fan Control, an advanced ventilation system that optimizes noise levels and cools components based on load and temperature.

Seasonic’s cooling technology ensures PSUs operate quietly at low to medium loads while monitoring temperatures to activate the fan when needed. This system prevents overheating during gaming, so you can focus without worry.

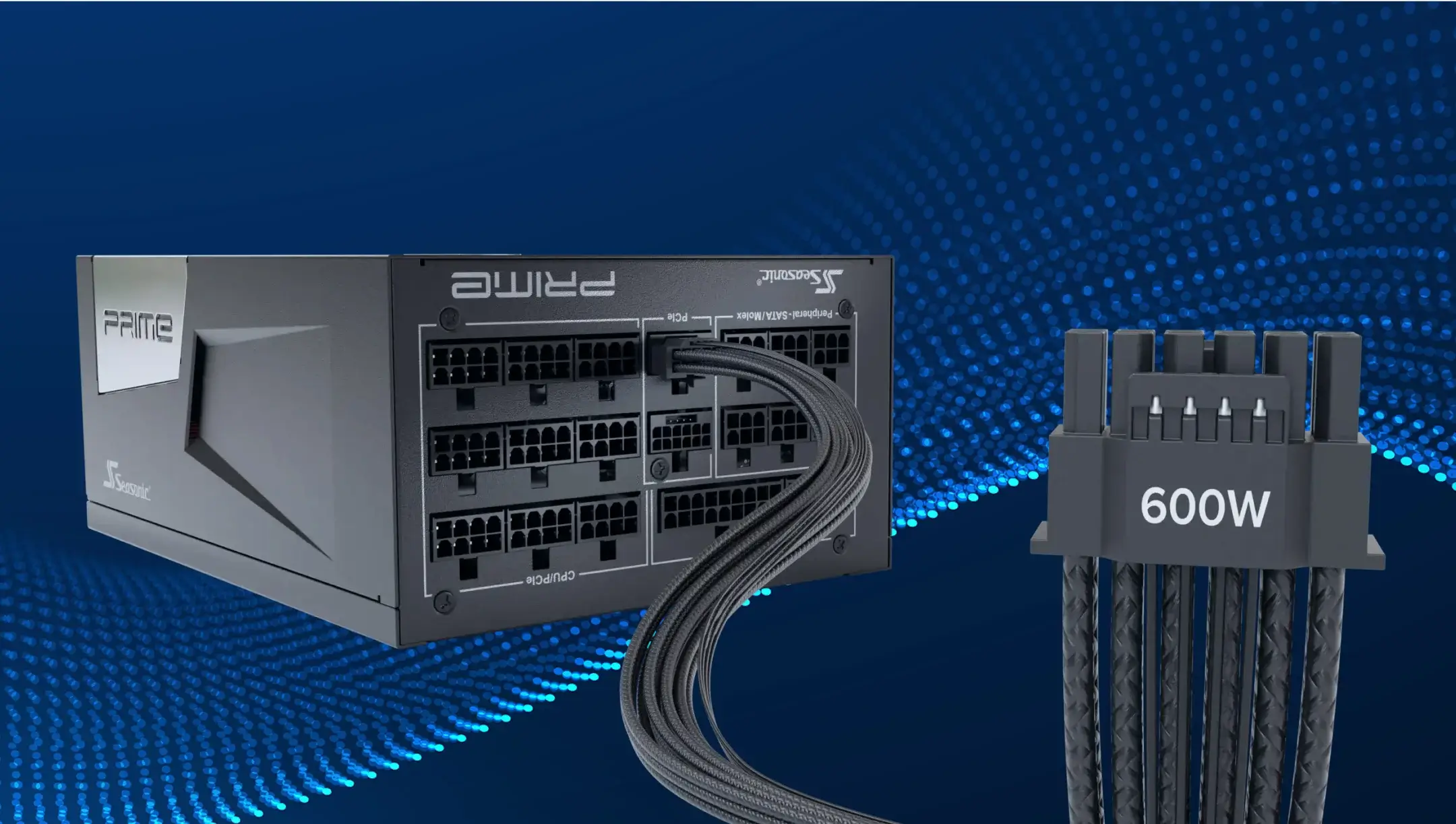

What cables and connectors does the PRIME TX use?

The Seasonic PRIME TX series offers a fully modular cable system, allowing you to connect only the cables required for your PC build. This design enhances cable management and airflow within the case, directly impacting the PSU’s technical performance and efficiency.

The Seasonic PRIME TX power supply comes with the following cables and connectors:

1. main 24-pin ATX cable for the motherboard,
2. several EPS (4+4-pin) cables for the processor,
3. large number of PCIe (6+2-pin) cables for the video card,
4. SATA connectors for convenient connection of SSDs and HDDs,
5. several Molex (4-pin) connectors for peripherals, fans, or lighting controllers.

All cables feature high-current connectors and appropriately gauged conductors to minimize voltage drops during peak loads. Their lengths are optimized for large cases, ensuring easy connection of all PC components.

How does the PRIME TX Series perform with modern GPUs, under ATX 3 and PCIe 5 standards?

For gaming PCs, support for modern GPU power requirements and ATX 3.0/3.1 and PCIe 5.0/5.1 standards is crucial. As a professional PC user, you can connect high-performance graphics cards for enhanced visuals and use the right cables for additional components. These features ensure a highly realistic gaming experience with compatible PC hardware. Additionally, the Seasonic PRIME TX series supports future upgrades, accommodating the latest components for long-term planning.

The robust Seasonic PRIME TX-1300 ATX 3.1 and TX-1600 ATX 3.1 models are certified to meet the latest standards and feature native 12V-2×6 connectors, allowing seamless connection of modern GPUs without extra adapters.

With stable +12V line voltage and minimal ripple, the Seasonic PRIME TX power supply effortlessly handles the peak power surges of modern GPUs. This ensures smooth performance during extended gaming sessions, free from micro-freezes.

How does the PRIME TX compare to other Seasonic series, like the VERTEX or the FOCUS?

The Seasonic PRIME TX Series stands as a premium, top-tier line, distinguished by key features that set it apart from other series like VERTEX and FOCUS.

1. The PRIME TX Series boasts superior efficiency (80 PLUS® Titanium), ensuring optimal power delivery and reduced heat waste even with the most powerful modern GPUs.
2. It has a very stable +12V line voltage with low ripple, essential for handling peak consumption surges.
3. The PRIME TX Series features premium, fully modular cables with high-current connectors, native 12V-2×6 support for the latest GPUs, and full compatibility with the latest ATX 3.1 and PCIe 5.1 standards. This makes it a comprehensive, future-proof power supply solution for cutting-edge gaming and professional systems.

The Seasonic VERTEX Series, certified 80 PLUS® Gold or Platinum (model-dependent), offers solid power reserves and stability for peak loads, though slightly less robust than premium lines. Equipped with connectors suitable for modern GPUs, it supports gaming systems effectively, particularly for less power-intensive games or builds with moderate performance demands.

The Seasonic FOCUS Series, being a cost-effective mid-range option with 80 PLUS® Gold certification, features partially modular cables and reliable stability for standard mid-tier gaming PCs. While efficient for moderate loads, its lower power reserve reduces performance under heavy demands. Additionally, not all FOCUS models include 12V-2×6 connectors, potentially limiting compatibility with the latest GPUs.

What safety features ensure the stability of gaming systems?

The Seasonic PRIME TX series includes advanced protective features to ensure safe and reliable operation for gaming systems. Key protections include:

1. The Seasonic PRIME TX series includes advanced Over Voltage Protection (OVP), which immediately halts the power supply if voltage exceeds safe limits. This critical feature shields essential components like the CPU and GPU from potential damage.
2. UVP (Under Voltage Protection) prevents unstable operation when the voltage drops.
3. OCP (Over Current Protection) limits the current on each +12V line, avoiding overheating of the wires and connectors.
4. SCP (Short Circuit Protection), which instantly shuts down the PSU in case of a short circuit.
5. OPP (Over Power Protection) for overload protection.
6. OTP (Over Temperature Protection), which activates to prevent damage by shutting down the power supply when excessive temperatures are detected.

What do Seasonic experts say about the PRIME TX for gaming PCs?

Seasonic engineers position the PRIME TX series as a top-tier solution for gaming PCs, offering a powerful combination of exceptional efficiency, rock-solid stability, and full compatibility with the latest power standards in one premium package.

The Seasonic PRIME TX Series is fully compatible with ATX 3.1 and PCIe 5.1 standards, enabling seamless powering of modern GPUs with minimal voltage loss and no additional adapters. Its premium, fully modular cables and optimized layout simplify assembly while maximizing airflow. Digital Hybrid Fan Control delivers whisper-quiet operation at moderate loads and efficient cooling during peak performance. This ensures uninterrupted gaming enjoyment with robust support for all performance scenarios.

From a professional standpoint, Seasonic’s PRIME TX power supplies empower gamers and enthusiasts to operate high-performance systems with unwavering stability and no risk of component overheating. Meticulously engineered with cutting-edge technologies, these PSUs handle the demands of your setup effortlessly.

Conclusion

Gaming PCs demand stability and performance comparable to professional workstations. With thriving gaming tournaments and the rise of streaming, users require robust hardware to support these activities effectively.

Seasonic PRIME TX series power supplies are engineered to excel in demanding gaming scenarios, seamlessly supporting modern PC builds and high-performance games. Above all, they deliver reliable power to cutting-edge components, eliminating technical issues during operation. This all-in-one solution ensures smooth gameplay and the exceptional experience gamers expect.
