We dive deep into the Seasonic PRIME TX series, exploring its advanced cable management, intelligent cooling, and cutting-edge technical solutions that power high-performance large form factor PCs.

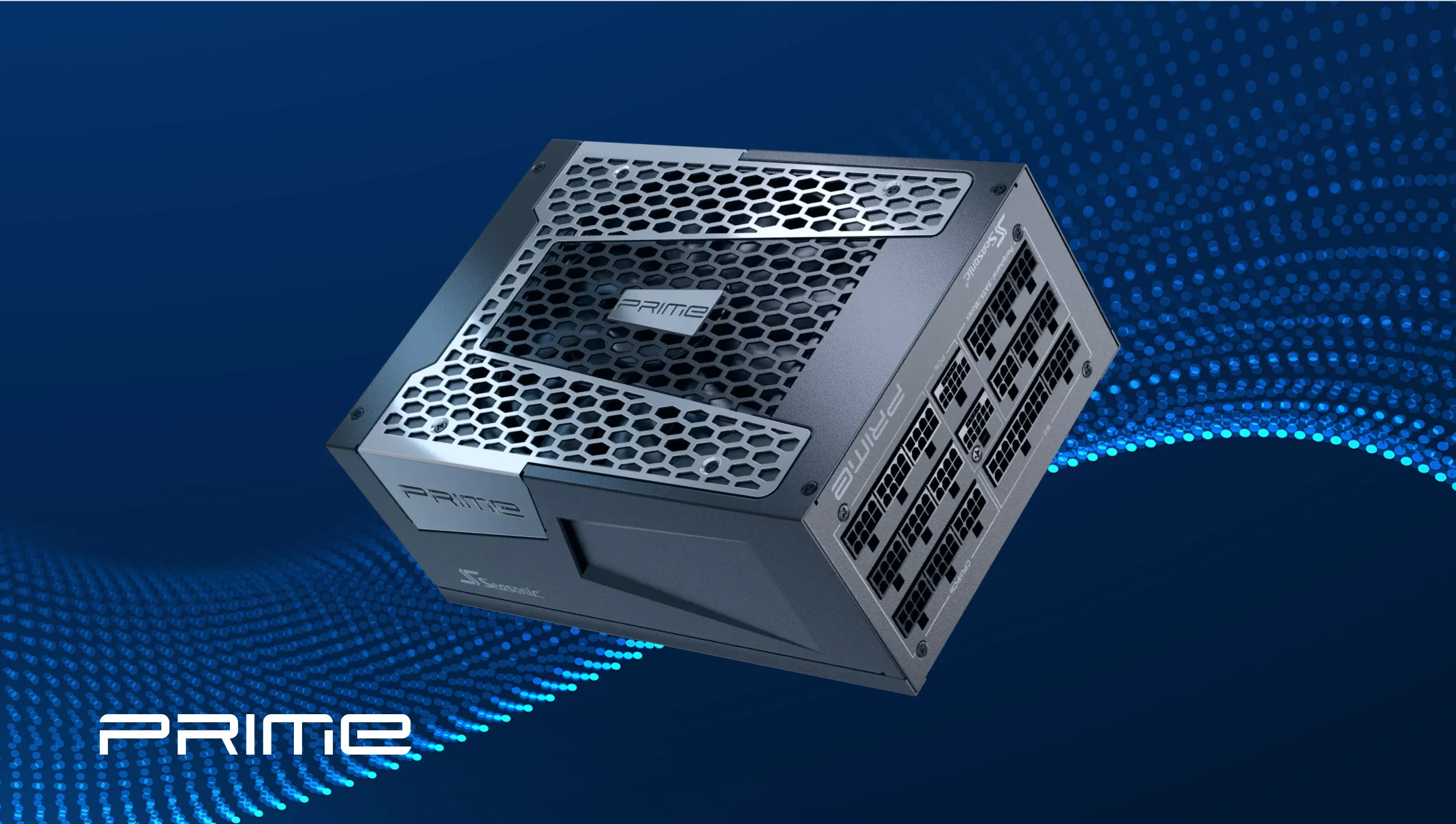

Power supplies for large form factor PCs. General information.

Large form factor power supplies are commonly used in high-performance workstations, including servers, AI/ML systems, professional media studios, and multi-GPU gaming PCs. These powerful systems demand exceptional stability and reliable, uninterrupted operation, making robust power supplies critical for optimal performance. These high-performance systems require exceptional stability and reliable, uninterrupted operation. Large form factor power supplies (LFF PSUs), designed specifically for large PC cases, are engineered to meet the demanding power needs of these systems.

High-capacity power supplies provide stable power to all system components, including high-performance CPUs, multiple graphics cards, disk arrays, and peripherals. To power such massive systems and large form factor PCs, the power supply unit is equipped with the following important features:

1. For multiprocessor systems and multiple GPUs, power supply units range from 1300 W to 1600 W and above. The Seasonic PRIME TX-1600 ATX 3.1 fulfills this requirement to the fullest.
2. 80 PLUS® certifications guarantee high efficiency at different loads. Platinum or Titanium units are typically chosen for high-performance LFF systems.
3. Full modularity provides easy cable management and improves airflow inside the case.
4. High-performance systems often require cables for EPS12V, PCIe, SATA, and Molex connections with sufficient lines and power. LFF PSUs are supplied with the appropriate cables and connectors to support modern hardware.
5. Large form factor power supplies are often equipped with large 120-140 mm fans and hybrid cooling systems. Since the form factor is large, noise may be generated in situations of maximum load, such as during gaming or rendering, but modern cooling technologies can handle this.
6. Additionally, but no less important, features include a full set of protections: OVP (Over Voltage), UVP (Under Voltage), OCP (Over Current), SCP (Short Circuit), and OTP (Over Temperature).

Why do large PC cases require specialized power supply solutions?

Large PC cases are designed to accommodate high-performance components that consume significant power and generate a lot of heat. They are used in completely different industries and for various types of tasks: rendering, gaming, server support, etc. Standard ATX PSUs are not always capable of providing stable power and adequate power reserves. Here, a powerhouse with greater size and power reserves is required.

LFF (Large Form Factor) systems can have multiple GPUs, multi-core processors, numerous storage devices, and peripherals, which create peak loads and require high output voltage accuracy and low ripple. Imagine a powerful workstation that uses all the PC’s internals to the fullest extent possible. It’s like a mini-factory that produces a lot of heat and powers the system up. This is exactly what large PSUs are designed for. They come equipped with a modular cable system, improved cooling technologies, and high efficiency certifications (80 PLUS® Platinum/Titanium). These guarantee stable large form factor PC operation even in critical scenarios.

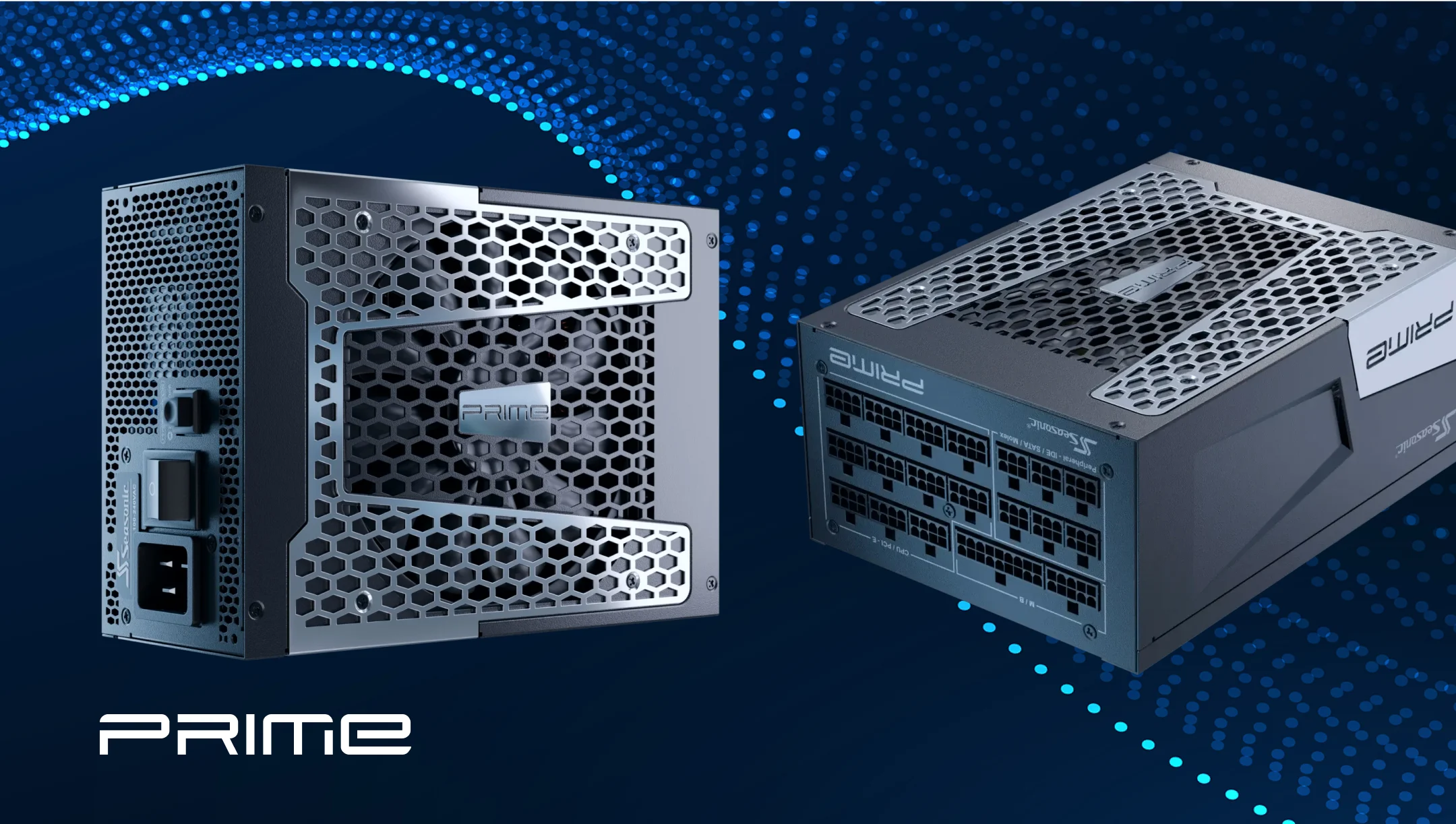

Seasonic PRIME models for large tower systems and workstations

Seasonic PRIME series power supplies are high-performance, premium-class power solutions that perfectly fit large tower systems and workstations. They are designed specifically to provide stable power to PC components with high energy consumption. The PRIME series of power supplies supports the ATX form factor, capable of outputting 850 W – 2200 W. Such power capacity makes them suitable for multi-core processors, multi-GPU configurations, and large disk arrays.

Features of PRIME PSUs for LFF systems include:

1. High efficiency supported with 80 PLUS® Platinum and Titanium certification.
2. Stable output voltages with low ripple (<30 mV on +12V). These are critical metrics for GPUs and CPUs under peak loads.
3. Modular cable system with support for EPS 12V, PCIe 6+2-pin,12V-2×6, SATA, and Molex.
4. Hybrid Silent Fan Control and large 135 mm fans for efficient cooling with minimal noise.

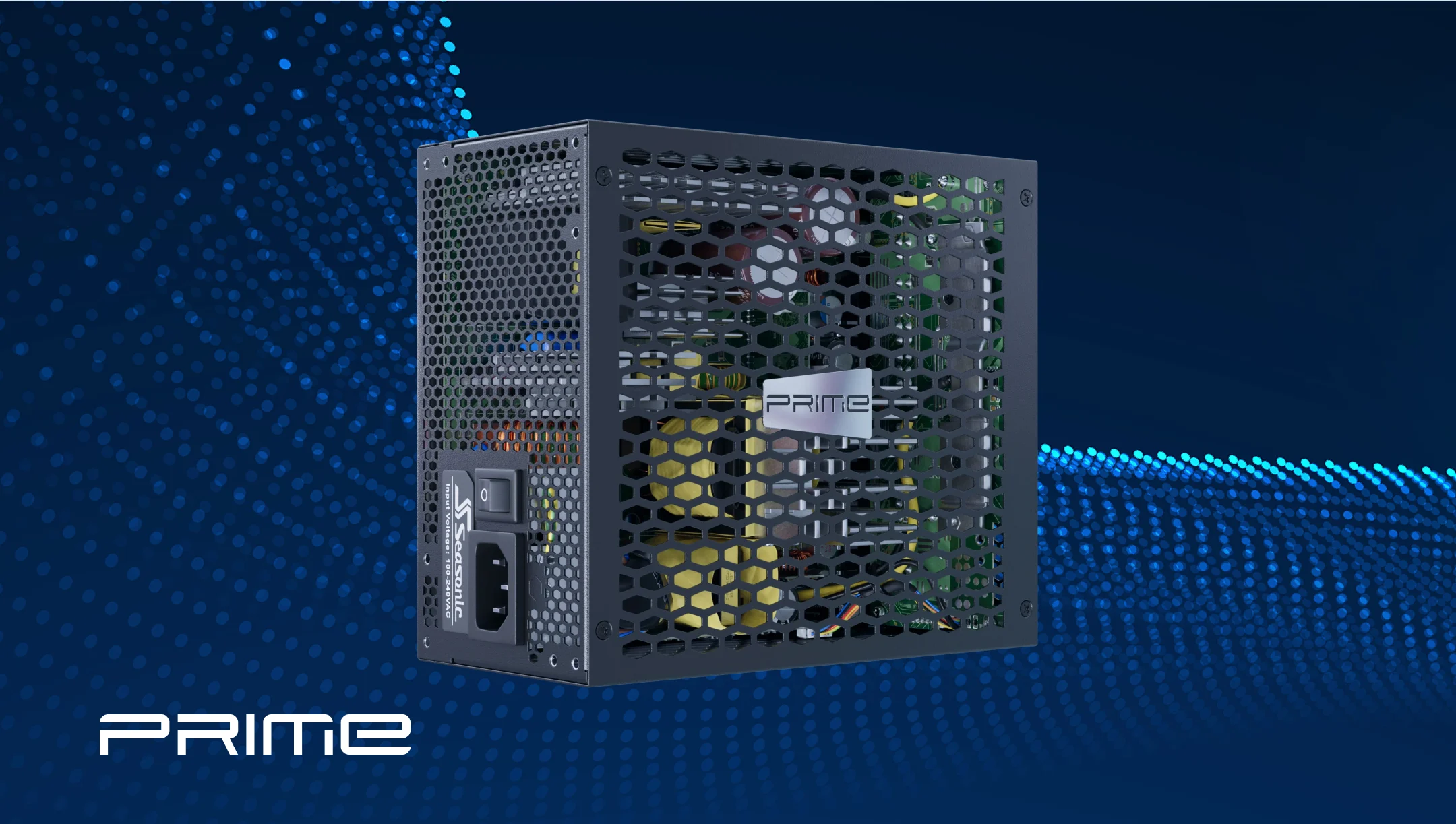

How does cable management improve airflow and the appearance of large cases?

In large cases, effective cable management is critical as it affects the aerodynamics of the inner space and the system’s thermal performance. Compact and neat cable placement reduces airflow turbulence, ensuring a direct path for cold air to key components (CPU, GPU, VRM, storage devices) and fast thermal relief at key hotspots. For example, when certain components are operating at maximum load, they heat up faster, and the cable management task is to allow air access to remove heat from these areas.

Smart cable management reduces local temperatures and increases fan efficiency, as optimized airflow contributes to the overall cooling of PC components during peak loads. Altogether, this provides complete system stability.

In addition, modular cable organization not only optimizes airflow, but also:

1. improve the aesthetic case perception,
2. simplify access to components for upgrades or maintenance,
3. reduce the risk of damage to cables or contacts.

In technical terms, this is a combination of a thermodynamically optimized airflow path and an engineering-correct organization of the cable infrastructure. These technical characteristics are critically important for large tower systems and high-end workstations.

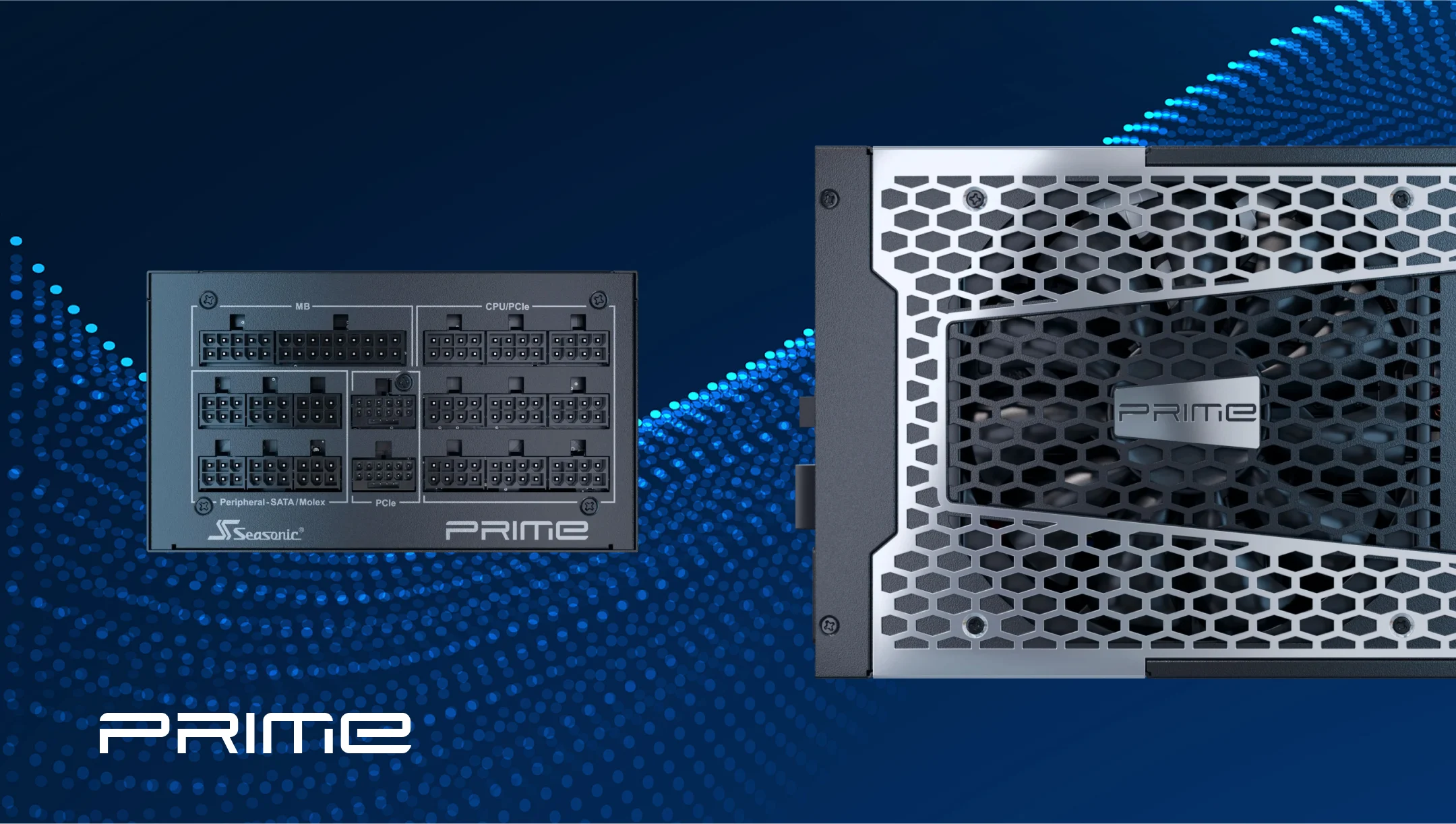

What modular cable options does the PRIME series offer?

Seasonic PRIME series modular cables are designed for high-performance PCs, including gaming and professional workstations. Featuring ATX PRIME 3.1 and PCIe 5.1 standards, they deliver stable power to the latest graphics cards.

The modular cables that come with PRIME series PSUs include the following:

1. 24-pin ATX: core power cable for the motherboard.
2. 8-pin/4+4-pin EPS: for powering the processor.
3. 6+2-pin PCIe: for powering graphics cards.
4. SATA/Molex: for powering storage devices and peripherals.
5. 12VHPWR: cable for new GPUs that support the PCIe 5.0 standard.

All cables are made of high-quality materials, such as 16AWG copper wires. They are compatible with modern high-performance components, so that every user can connect the necessary components to support their PC.

Please note that for optimal system performance, it’s recommended to use original Seasonic cables. This will help you avoid situations that make it hard to plug components into the power supply. When choosing cables, also check their compatibility with a specific power supply model. Pay attention to this because even within the same series, there may be differences in connectors and configurations.

You can refer to our cable compatibility page for more information on Seasonic power supplies: www.seasonic.com/cable-compatibility.

How does the PRIME series ensure stability under heavy loads?

The Seasonic PRIME series is fully suitable for server-class tasks, high-end workstations, and multi-GPU systems. Each power supply in the PRIME line combines several critical engineering solutions in its design that directly affect its stable operation. We use:

1. fully digital voltage regulation (Micro Tolerance Load Regulation, ±0.5%), which minimizes deviations even during peak consumption surges;
2. high-quality Japanese capacitors that withstand temperatures up to 105 °C and guarantee durability and low ripple;
3. +12V power line with high current output, which is critical for powering modern graphics cards and processors;
4. protective mechanisms (OCP, OVP, UVP, SCP, OTP) to prevent system instability during overload.

In tests conducted by independent laboratories, Seasonic PRIME power supplies demonstrate extremely low ripple (<20–30 mV at +12V) and voltage stability even at 90–100% load.

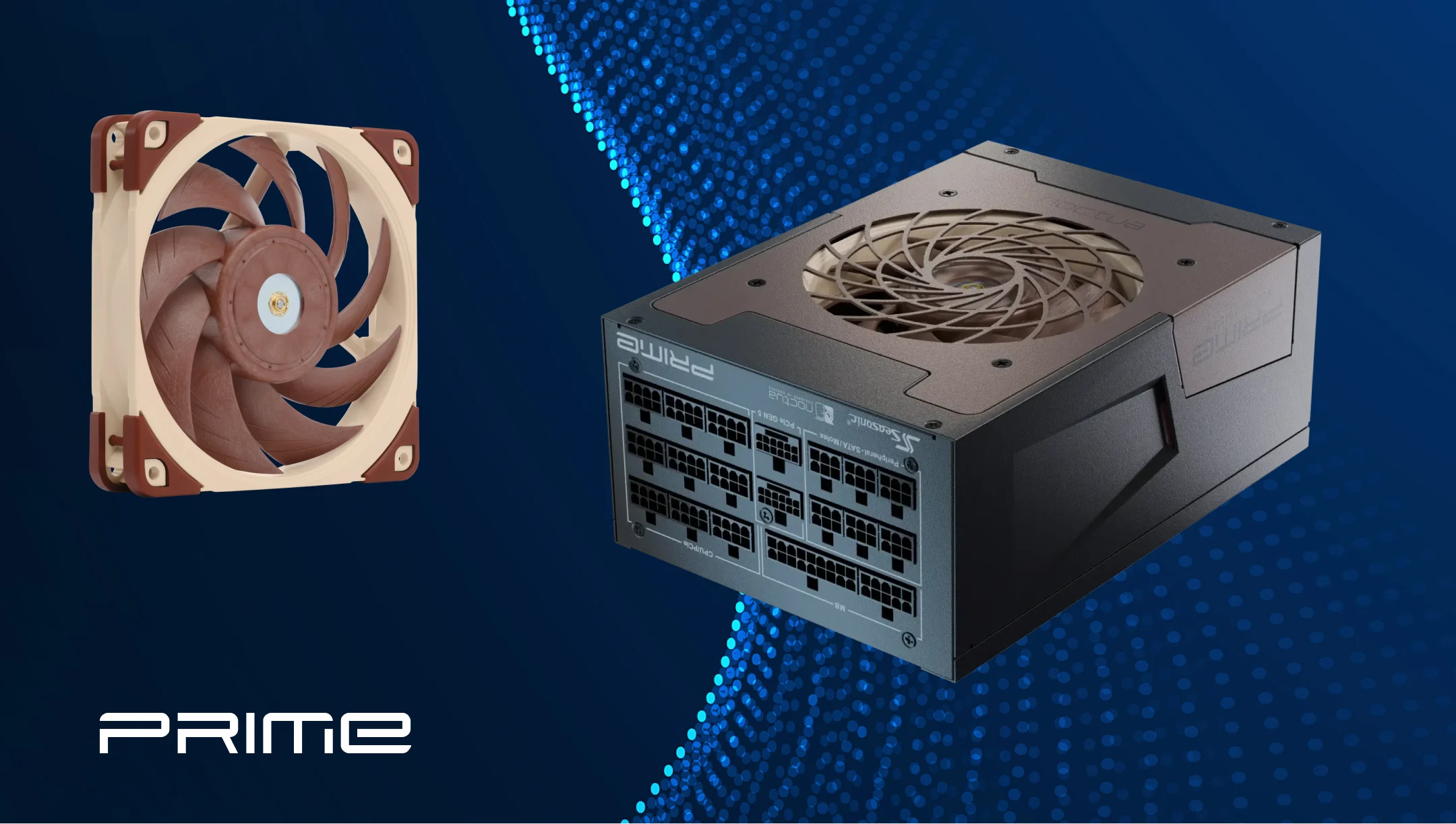

What cooling technologies are integrated into the PRIME series for large form factor PCs?

The Seasonic PRIME series for large PC cases incorporates several engineering solutions for effective heat dissipation. The basis is Hybrid Silent Fan Control. This is an intelligent speed control system that operates in three modes: fanless, low RPM, and active. At low and medium loads, the unit switches to passive mode. At high loads, the fan automatically spins faster, ensuring sufficient airflow.

The built-in 135 mm diameter Fluid Dynamic Bearing fans have low noise levels and increased service life with technology that lubricates moving parts for longer-lasting fans. And at the top of that, the PRIME power supply unit housing has Honeycomb-style ventilation grilles that minimize turbulence and increase airflow efficiency.

What components distinguish Seasonic PRIME power supplies from the competition?

Seasonic engineers take a comprehensive approach to addressing power supply unit performance issues. For the PRIME line, we’ve combined high-quality components and engineering solutions focused on stability, efficiency, and durability for each power supply unit. Here is a full list:

1. Japanese 105°C capacitors are a key component that ensures low ripple and PSU longevity even under high loads.
2. Fully Digital Voltage Regulation that guarantees ±0.5% accuracy at +12V.
3. DC-to-DC converters stabilize the +3.3V and +5V lines, reducing deviations and ripple.
4. Hybrid Silent Fan Control with 135 mm FDB fans. They combine silent mode, passive cooling, and high-efficiency active mode.
5. High-quality modular cables, compatible with PCIe 5.1, 12V-2×6, and EPS12V.
6. Comprehensive set of protection (OVP, UVP, OCP, SCP, OTP) for system stability in case of any critical situation.
7. 80 PLUS® Platinum and Titanium certification to minimize energy loss and increase PSU productivity.

What warranty and customer support options are available for PRIME series power supplies?

At Seasonic, we think not only about the technical components and innovative solutions for our power supplies, but also about professional support for our customers after purchase. With the PRIME series of power supplies, we offer some of the best warranties and support conditions on the market, which only emphasizes our focus on PSUs’ durability and reliability.

PRIME series power supplies come with a 12-year warranty, one of the longest in the industry. Comprehensive support for our customers, including on our official website, offers:

1. Instructions for troubleshooting common issues.
2. Information about the product return and exchange process.
3. Official video reviews and instructions.
4. Support team availability to resolve individual requests.

How does the PRIME series prepare your system for future hardware upgrades?

The Seasonic PRIME series creates a technological foundation for safe and convenient system upgrades in the future, without switching out the power supply unit. This is achieved through the use of an upgrade-oriented architecture that combines three key aspects.

High power reserve and peak current output.

Future configurations with new CPUs and GPUs will still work without voltage degradation thanks to our power supply.

Next-generation power standards.

You can connect the latest graphics cards and motherboards with Seasonic power supplies thanks to their 12V-2×6 and PCIe 5.1 compatibility.

Modular and flexible cable system.

This means you can easily add new cables or change configurations for different upgrades, ensuring optimal airflow and neat assembly.

Conclusion

Large form factor PCs require more powerful PSUs to keep up with the high-end components and deliver as much power as they need for stable work. Our engineers have implemented modern solutions that help achieve these goals and ensure that PC components are powerful enough to perform any demanding tasks. We designed and implemented tech solutions that handle cooling, protection, and PSU longevity, while also ensuring an attractive design and optimized case airflow.

Equipped with innovative technology, Seasonic PRIME PSUs deliver exceptional performance and stable operation around the clock under any load.
