Learn how Seasonic’s Hybrid Fan Control helps reduce noise in the PRIME TX Series. Also, we covered all the features of this technology that give your PC quiet operation and stable performance all at once.
What is hybrid fan control?
Hybrid fan control is a function that controls the power supply unit’s cooler. It works as follows. When the computer is operating at low load and the PSU is not heating up, the fan does not spin at all. When the load or temperature goes up, the fan automatically turns on and spins faster or slower to keep cool.
This mechanism ensures quiet PC operation and reduces fan wear.
A few details about hybrid fans in the context of their operation in Seasonic PSUs.
- In the S³FC (Hybrid Silent Fan Control) settings, the starting fan point can vary – anywhere from 20% up to 50% load, depending on the model. After that, auto-speed control is activated depending on the temperature.
- Seasonic PRIME PX 1000 power supplies only turn on the fan at a certain load (for example, >40%, i.e., over 400 W). They then adjust to the temperature in the case and respond accordingly.
How does it work?
Hybrid-controlled power supplies typically operate in three modes:
- fanless mode (fan off),
- silent mode (low speed),
- cooling mode (active cooling with increased speed).
In fanless mode, the fan does not rotate when the load is low (for example, up to ~20% of power). Silent mode means that the fan rotates at minimum speed when the load on the system is moderate. Cooling mode is when the fan rotates faster at increased load or temperature.
Hybrid fan control also depends on the type of PSU. In some units (for example, Seasonic PRIME PX 1000 or Seasonic PRIME TX Series), the fan only starts spinning after reaching a power threshold. But if the temperature gets too high, the fan can turn on even earlier, even at lower loads.
For convenience, power supplies are equipped with mechanisms for switching between modes. Some units have a physical switch. Switch not pressed = Hybrid Mode ON (fan stops spinning at low load). Switch pressed = Hybrid Mode OFF (fan always spins).
The switch lets users decide if the fan should shut off at low loads or keep spinning. Overall, this solution brings the balance of quiet operation, cooling, and fan components’ longevity.
Where is hybrid fan control used?
Hybrid fan control is used in two cases: for PSUs and GPUs. We’ve covered this question in terms of using it in PSUs.
This is how it works. Sensors inside the PSU measure load and temperature. Depending on whether the data meets or exceeds the set standards, the mechanism is activated. When certain thresholds are exceeded, the fan is turned off. This optimizes the noise of the power supply unit, affects its efficiency, and extends the longevity of its components.
Seasonic is one of the leading companies actively implementing a hybrid fan control system. This option is available in the premium Seasonic PRIME, VERTEX, and FOCUS series. Power supplies with hybrid fan control have already been proven to be efficient and reliable by PC enthusiasts. As they said, the hybrid mode allows the fan on the power supply to turn off completely if the PSU is not generating enough heat to require the fan to spin.
It’s also worth mentioning that Sea Sonic was the first brand to release a retail product with Hybrid Mode in late 2009, with the X-Series.

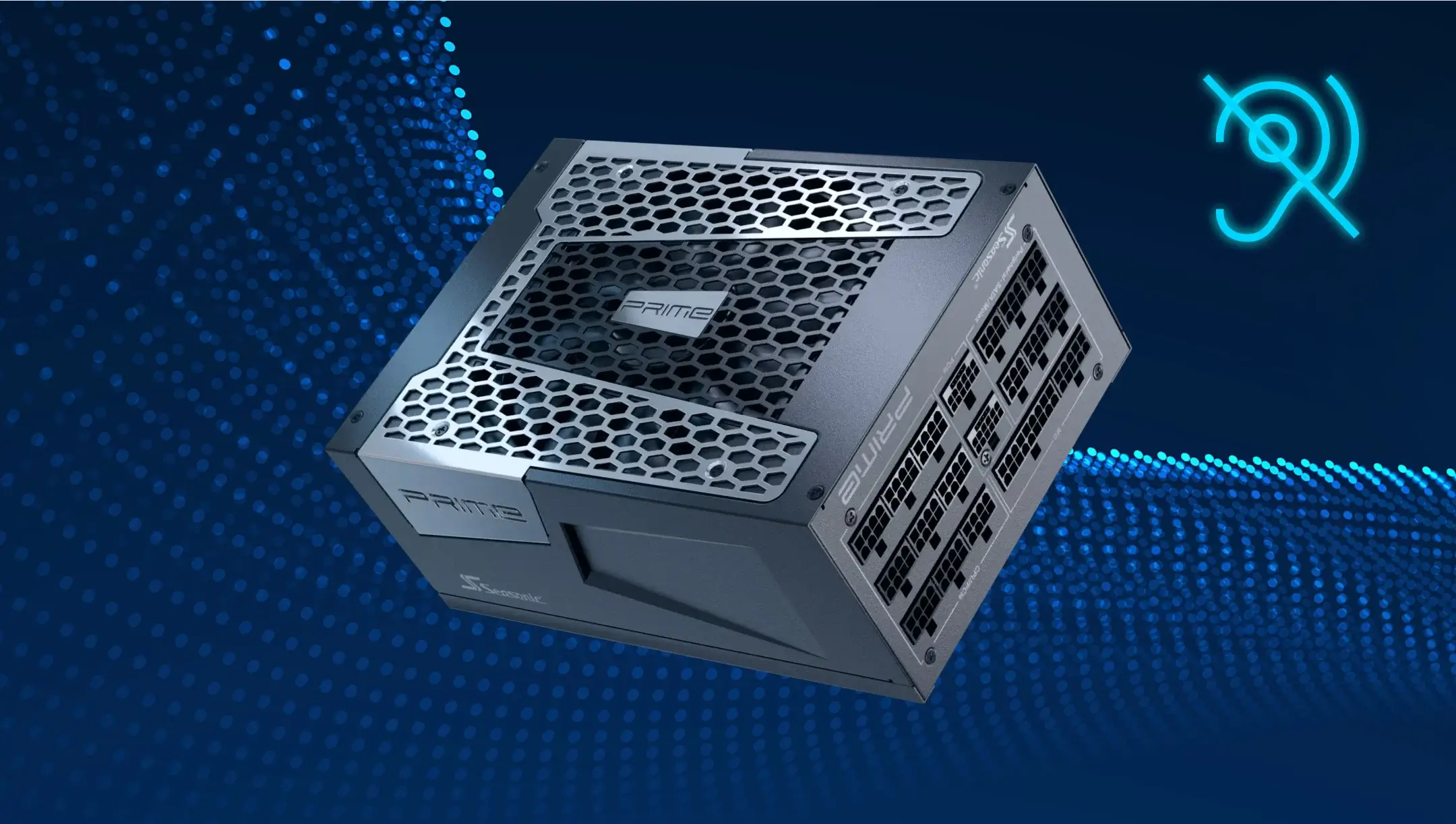

Why is noise reduction important for high-performance PCs?
It’s essential for high-performance PCs for a few reasons.
Temperature control and cooling
Powerful CPUs and GPUs produce plenty of heat. To keep them cool, fans often spin at high speeds, which means more noise. Quiet or hybrid fans modes solve both problems at once. They maintain optimal temperatures without turning your PC into a wind tunnel. As a result, no overheating and whisper-quiet performance, even under heavy load.
Reduced vibration and component wear
Noise is often accompanied by high fan speeds and vibrations. This accelerates the wear of bearings, drives, and other parts. Therefore, quiet systems maintain the stable operation of high-performance components for longer.
Maintaining stability under load
High-performance PCs power rendering, high-settings gaming, and other power-consuming tasks. Excessive fan noise can signal that the system is overheating and may throttle the CPU/GPU, reducing performance. Therefore, effective and quiet cooling helps maintain maximum component speed.

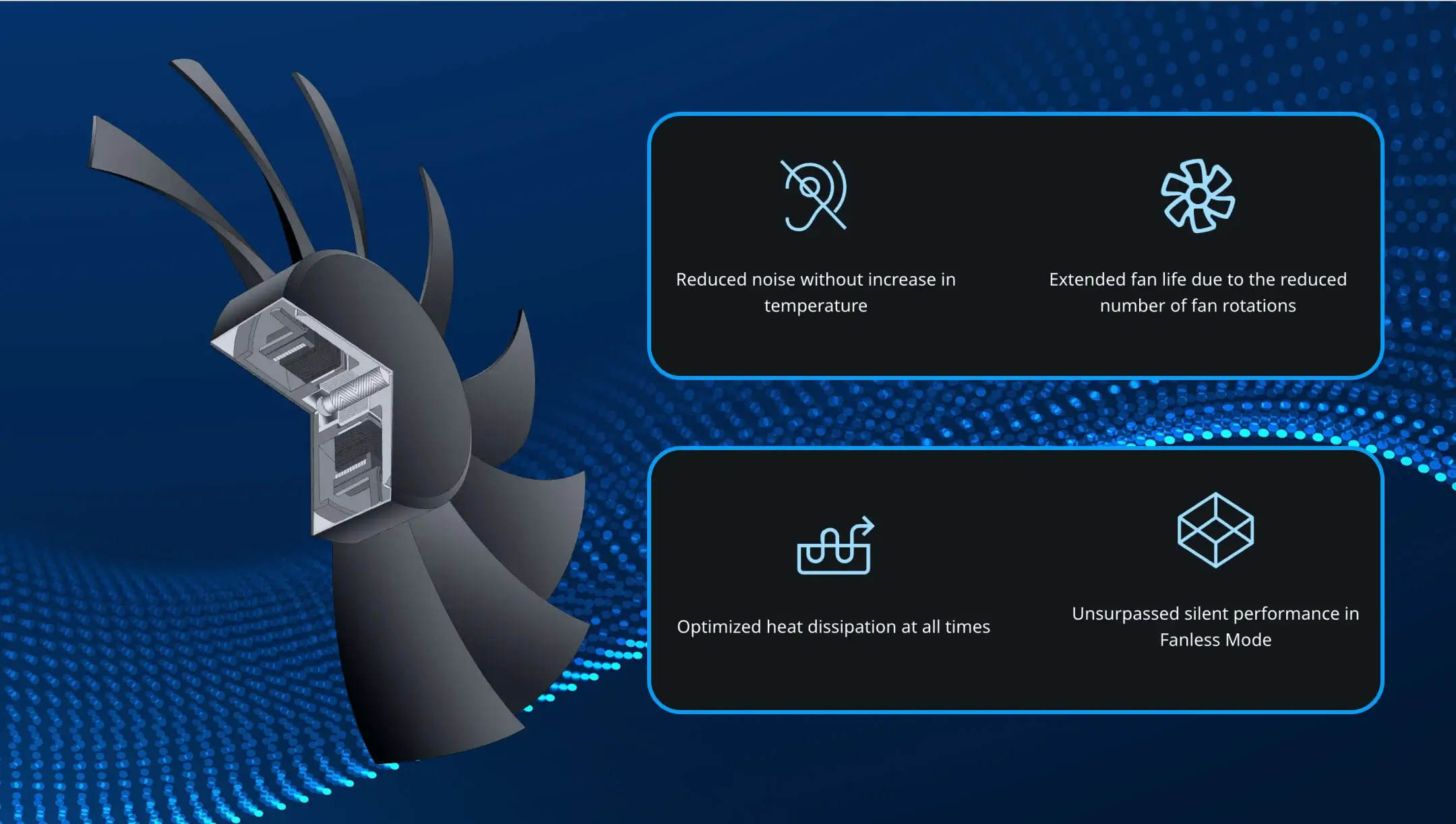

Benefits of hybrid fan control for users
Seasonic hybrid mode in the premium PSUs series offers a lot of benefits for users. Along with stable and quiet operations, there are more things they get with the hybrid fan control option.
- The hybrid mode allows the fan to be turned off at low loads or low temperatures. It only operates when required by the power supply unit’s temperature indicator. As a result, this creates almost silent PC operation when idle or performing simple tasks. You don’t even notice that the fan is working while performing different tasks, which creates a pleasant experience and convenience for everyone.
- Less fan activity means less energy consumption and less system heating. This means that the PSU works more efficiently, and the wear and tear on the fan components is slowed down.
- Some models let the user switch between automatic (hybrid) and manual fan control modes via physical controls or panels. This is quite convenient, especially when the PC is used for different tasks and different fan speeds are required.

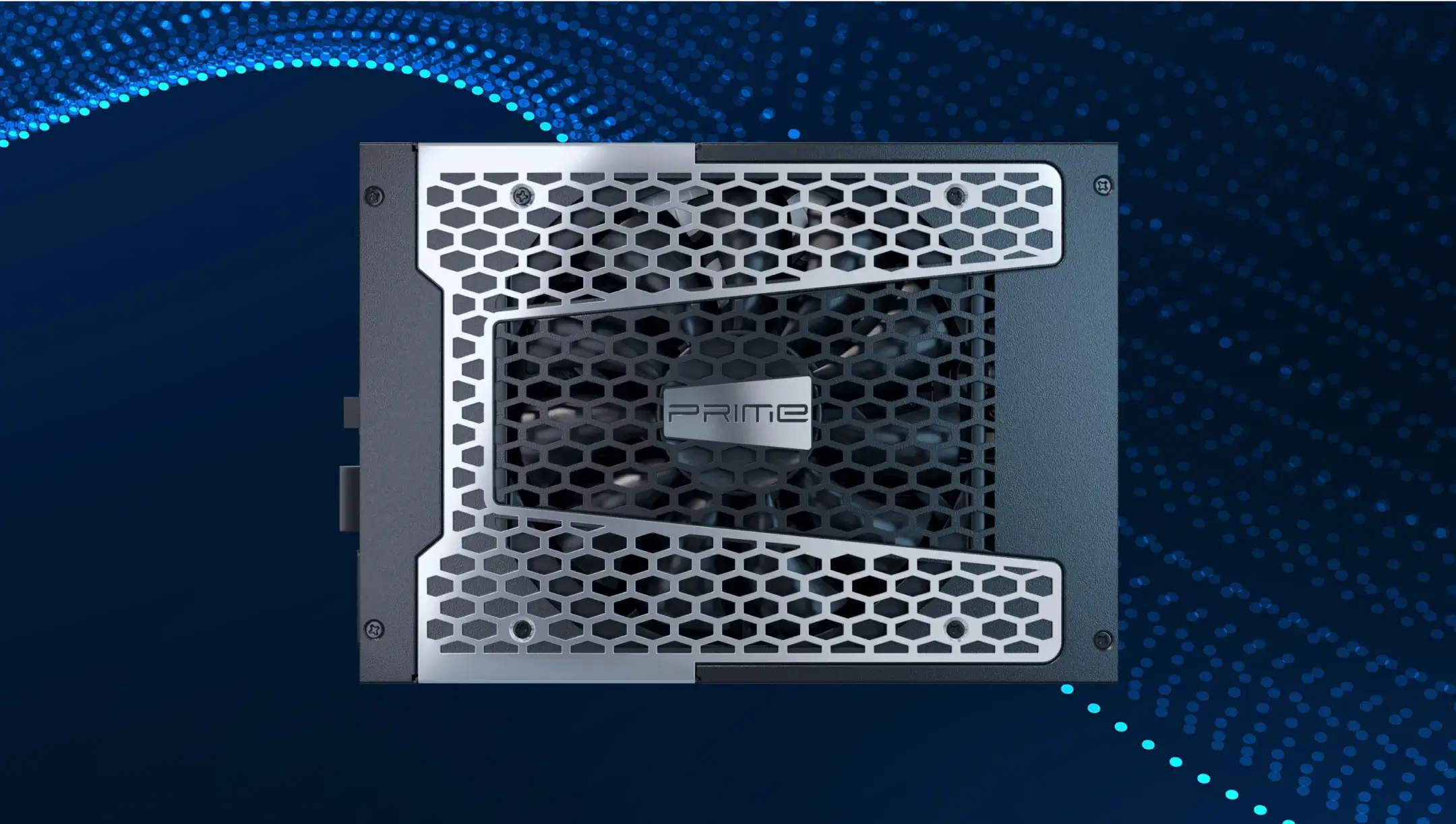

How does Seasonic use hybrid fan control?
Seasonic Hybrid Fan Control is a system that automatically regulates fan speed depending on the PSU’s load and temperature. Its key idea is to reduce noise and increase fan longevity. This goal is achieved when the fan is turned on only when it’s really needed. Fan operation is based on set temperature thresholds. If these standards are exceeded, this is a signal to turn on the fan to prevent the components inside the PC case from overheating. If the temperature remains within the basic range, there is no risk of overheating and, accordingly, the fan does not turn on.
The Seasonic hybrid mode fan control depends on the work tasks the PC performs. When your computer is running at low load, the fan is completely silent. If the load increases, it starts to spin quietly to cool the components. And during games or heavy tasks, the fan spins at full speed to prevent overheating. As a result, you’ll enjoy quiet working when it’s not crowded and effective cooling when it’s busy.
There are more reasons why Hybrid Mode is so effective for Sea Sonic:
- Less clutter inside (thanks to cable-free internal design) and innovations like OptiSink™ make cooling easier.
- When we launched X-Series in late 2009, 80 PLUS® Gold was the flagship efficiency. Today, we have Titanium, which makes Hybrid Mode even more relevant and has led it to become an industry standard for many brands.
- Thanks to efficiency improvements, we’ve increased the fan-off threshold from around 20% load in early models to up to 50% load in some models today.
How does Seasonic’s implementation stand out from competitors?
Seasonic stands out from its competitors thanks to its proprietary Hybrid Silent Fan Control. This system operates in three modes:
- Fanless Mode (the fan is turned off at low load).
- Silent Mode (fan rotates at minimum speed).
- Cooling Mode (fan runs at full power under high load or temperature).
This approach allows for an optimal balance between system cooling and noise levels during any task. Unlike many competitors, where fans in PSUs run continuously, Seasonic uses digital fan control with hysteresis. This means that the fan only turns on when a certain load threshold is reached (for example, 40%). This technology reduces the number of on/off cycles, reducing wear on fan components. Also, compared to competitors, Seasonic uses fluid dynamic bearing (FDB) fans for quiet and efficient operation.
In addition, Seasonic uses high-quality Japanese capacitors to ensure stable operation and durability of the power supply. This is standard in premium Seasonic series with Fanless mode, such as PRIME, VERTEX, and FOCUS. If you’re seeking absolute silence, step up to the Seasonic PRIME PX or TX Fanless – delivering whisper-quiet performance at any load.

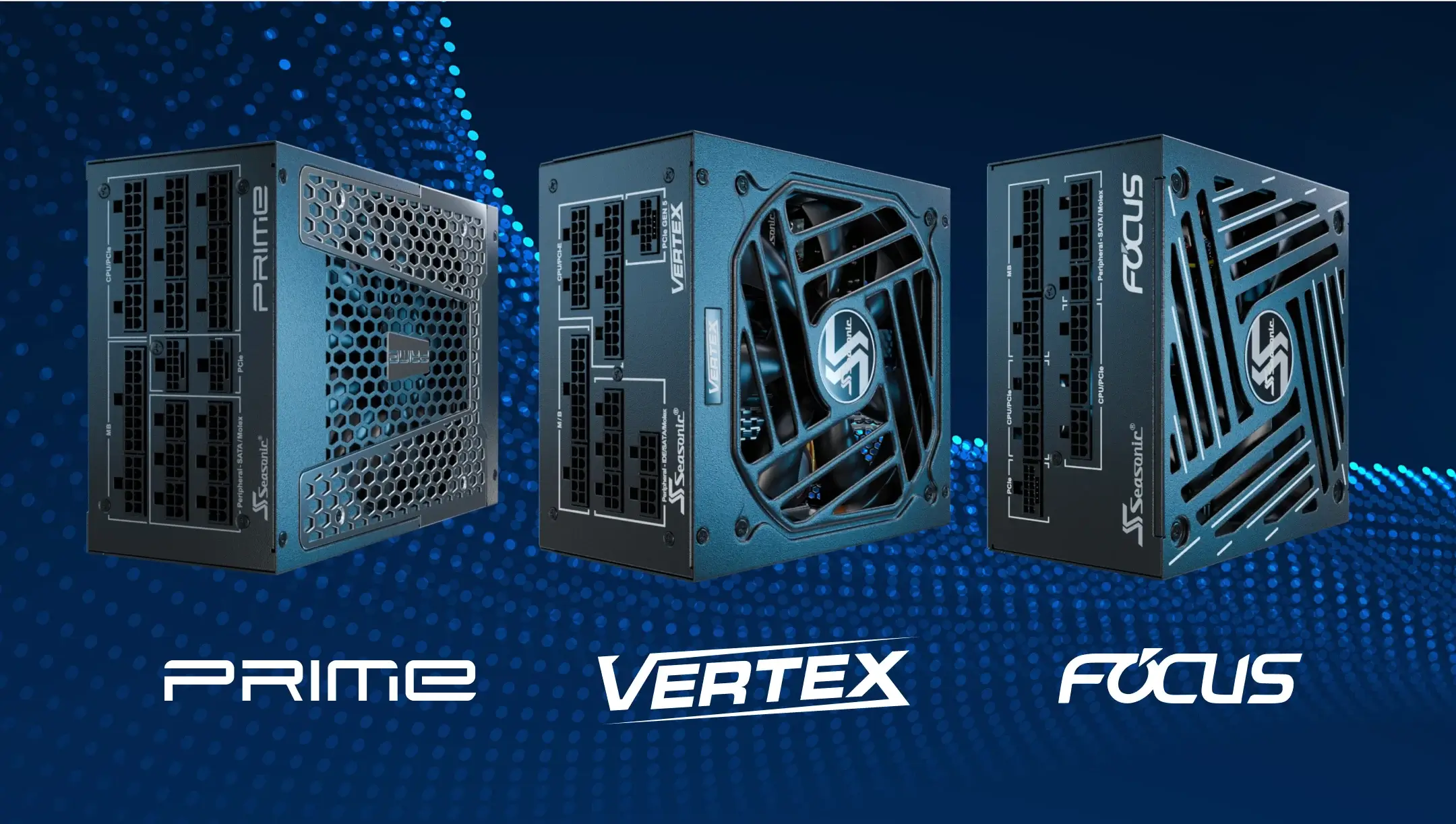

Which Seasonic PSU series uses hybrid fan control?
Hybrid fan control is used in the following Seasonic PSUs Series:
PRIME Series
All ATX 3.0 and ATX 3.1 models in this series support Digital Hybrid Fan Control, which provides three fan modes: Fanless, Silent, and Cooling.
VERTEX Series
The VERTEX PX and GX models also support Digital Hybrid Fan Control, which provides quiet and efficient cooling even under high loads. This fan control reduces noise and fan wear while ensuring optimal system cooling.
FOCUS Series
Both FOCUS PX and GX models have Hybrid Silent Fan Control, which optimizes the balance between cooling efficiency and quiet operation. Same for FOCUS GX ATX 3.0 or 3.1, which come with Digital Hybrid Fan Control.

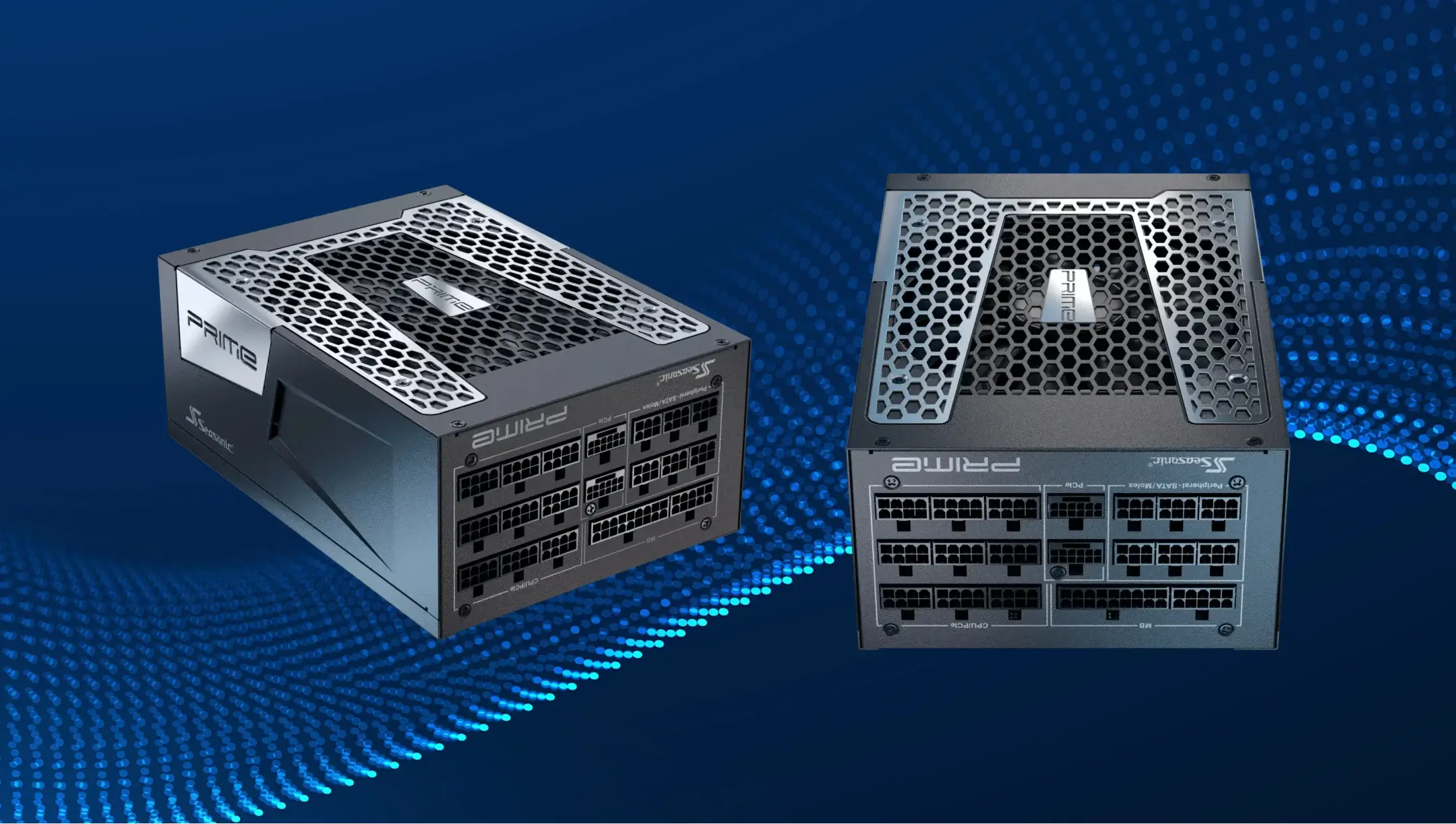

Is the PRIME TX series the right choice for a quiet setup?
The Seasonic PRIME TX Series is an excellent choice for those who want their computer to run as quietly as possible. These power supplies are equipped with an advanced hybrid fan control system. With this technology, developed by Seasonic, you can run in Fanless mode at low loads and cool efficiently at high loads.
Features of PRIME TX in quiet setup:
- A high-quality 135 mm fan with a fluid dynamic bearing (FDB) reduces noise and vibration, increasing the fan’s longevity.
- Thanks to 80 PLUS® Titanium certification, efficiency of up to 94% is achieved at 50% load. This reduces heat dissipation and cooling requirements.
- The modular design facilitates cable management and improves airflow in the case.
- 12-year warranty from Seasonic. This confirms the reliability and durability of Seasonic products.
Thanks to these features, it is a top choice for building silent, high-performance systems.
Conclusions
Seasonic’s Hybrid Fan Control it’s an innovative technology that prolongs longevity for both the fan and the power supply. It was created by Seasonic engineers with users’ demand for quiet PC operation in mind. Today, it proves its efficiency and ensures quiet PC operation under different loads and task performance.
Seasonic Hybrid Fan Control is a smart cooling system that adapts to your PC’s load. This approach, developed by Seasonic, reduces noise and fan wear while keeping the power supply unit at the right temperature.
