FOCUS GX ATX 3.0
The Center of Attention
1000 W
850 W
750 W
FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
-
The FOCUS GX ATX 3.0 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.80 PLUS® GOLD
-
Warranty
10 Years
-
CablingFully Modular
-
140 mm (L) x 150 mm (W) x 86 mm (H)Dimensions
-
ATX Specifications
ATX 3.0 & PCIe 5.0
-
80 PLUS® GOLD
The FOCUS GX ATX 3.0 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
10 Years
Warranty -
Fully Modular
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 3.0 & PCIe 5.0
ATX Specifications
-
80 PLUS® GOLD
The FOCUS GX ATX 3.0 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
10 Years
Warranty -
Fully Modular
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 3.0 & PCIe 5.0
ATX Specifications
80 PLUS® GOLD
The FOCUS GX ATX 3.0 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
10 Years
Warranty
Fully Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 3.0 & PCIe 5.0
ATX Specifications
80 PLUS® GOLD
The FOCUS GX ATX 3.0 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
10 Years
Warranty
Fully Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 3.0 & PCIe 5.0
ATX Specifications
80 PLUS® GOLD
The FOCUS GX ATX 3.0 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
10 Years
Warranty
Fully Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 3.0 & PCIe 5.0
ATX Specifications
Cybenetics - FOCUS GX-1000 / 750
Cybenetics - FOCUS GX-850
FOCUS GX-1000 ATX 3.0 Unboxing
FOCUS GX ATX 3.0
Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
-
Reduced noise without increase in temperature
-
Extended fan life due to the reduced number of fan rotations
-
Optimized heat dissipation at all times
-
Unsurpassed silent performance in Fanless Mode
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
- When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
- As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
-
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
-
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

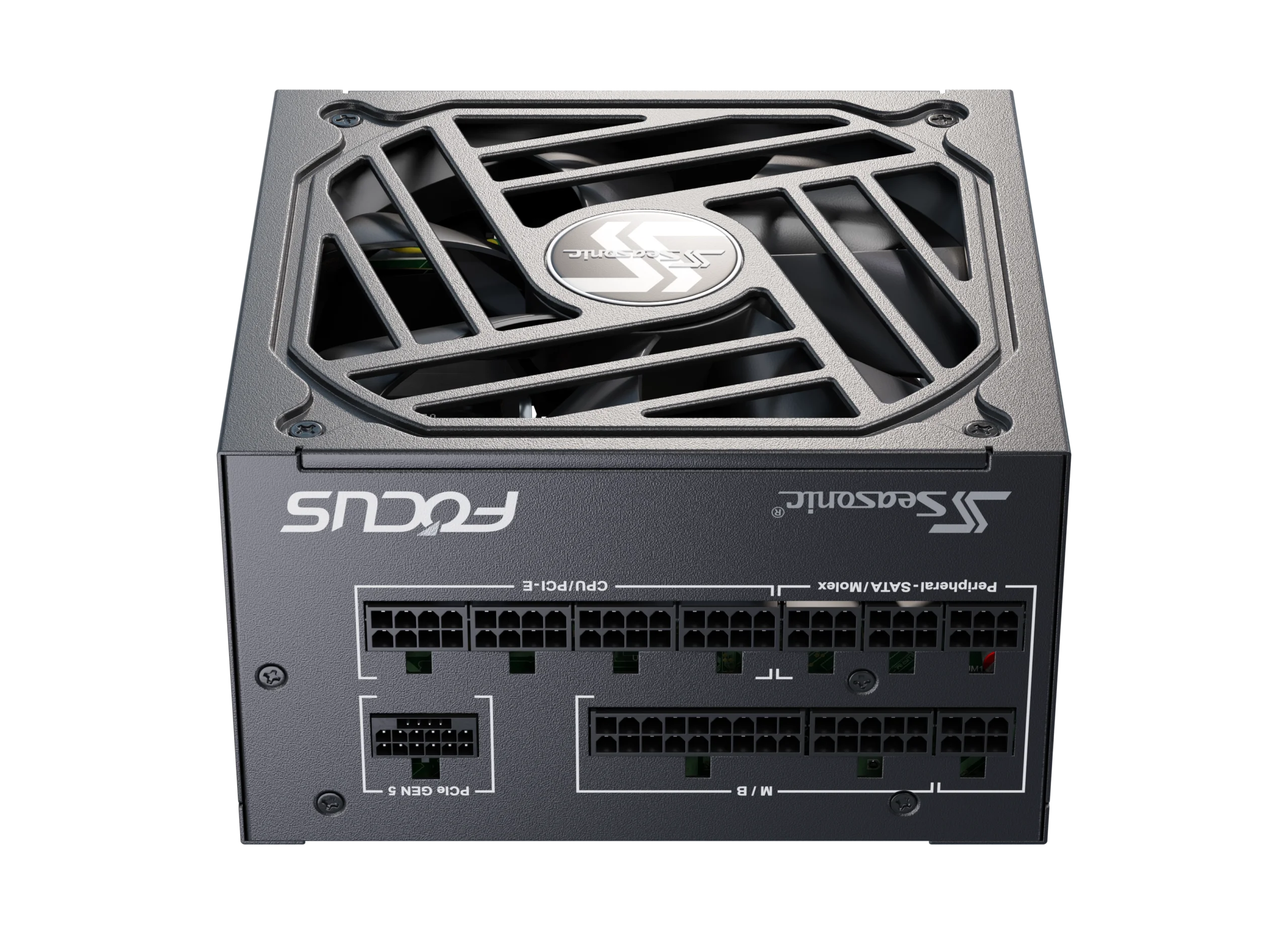

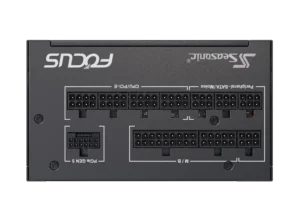

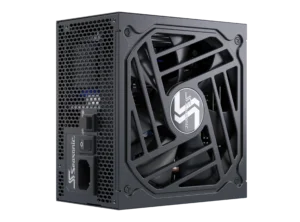

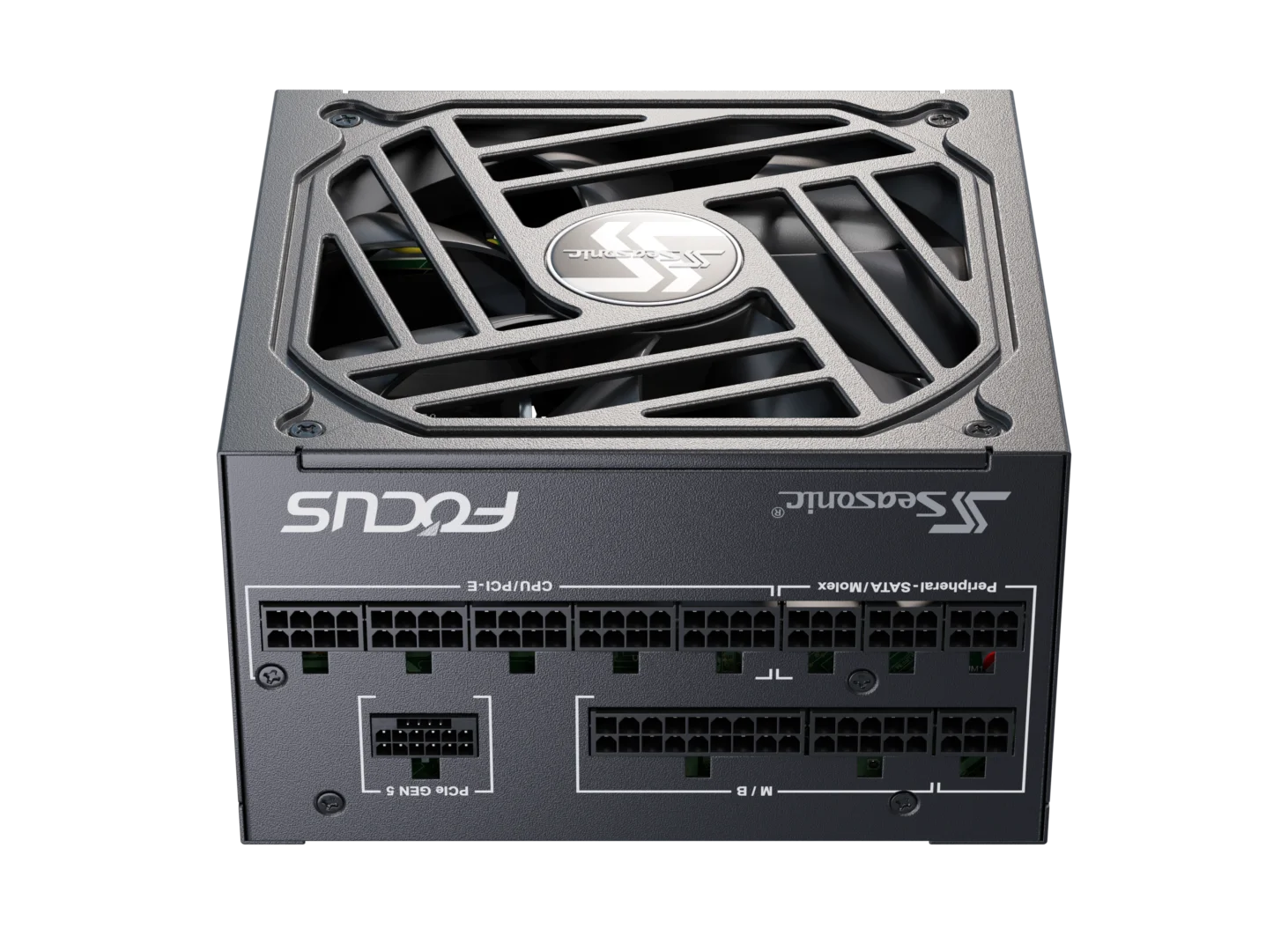

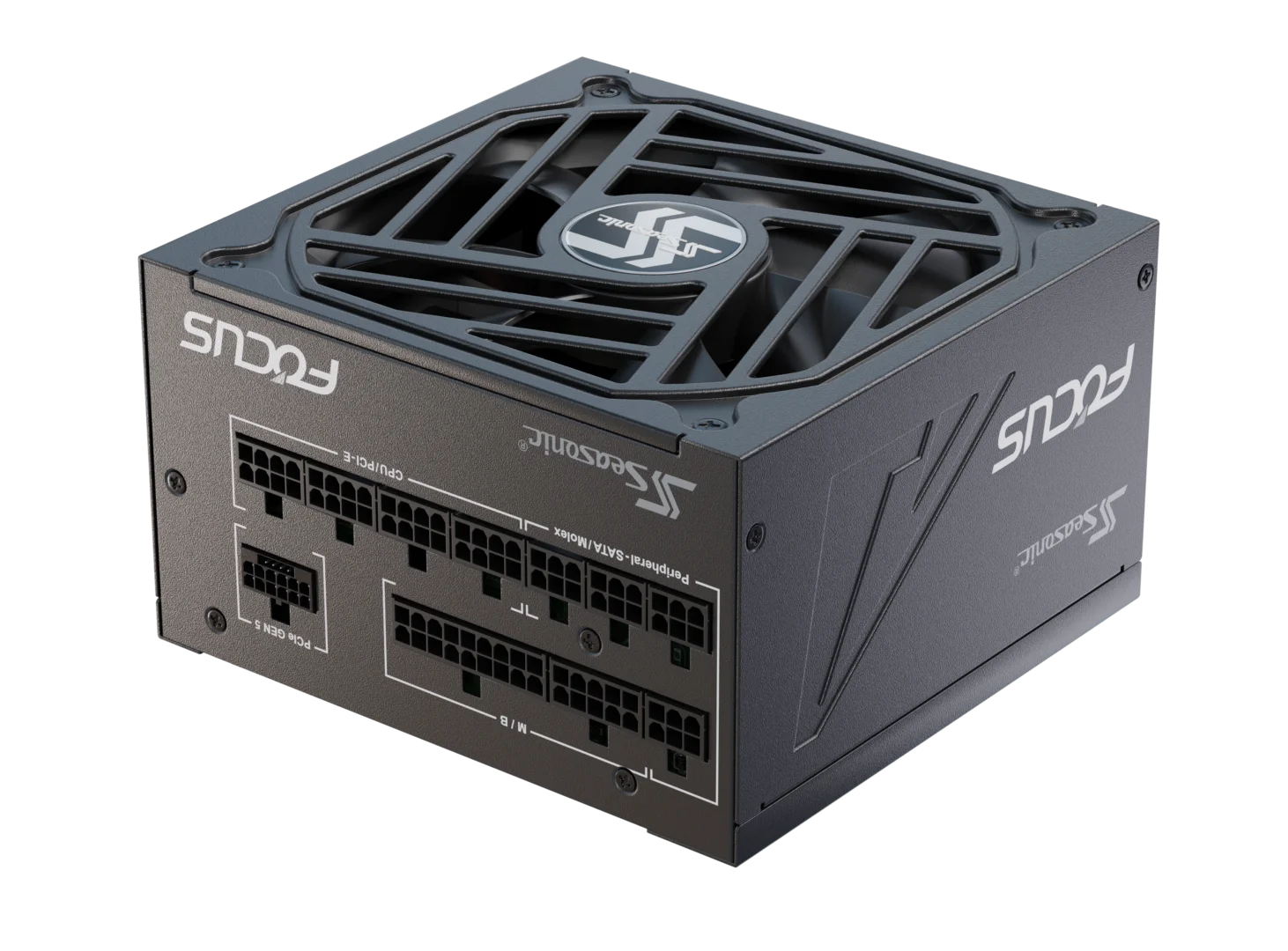

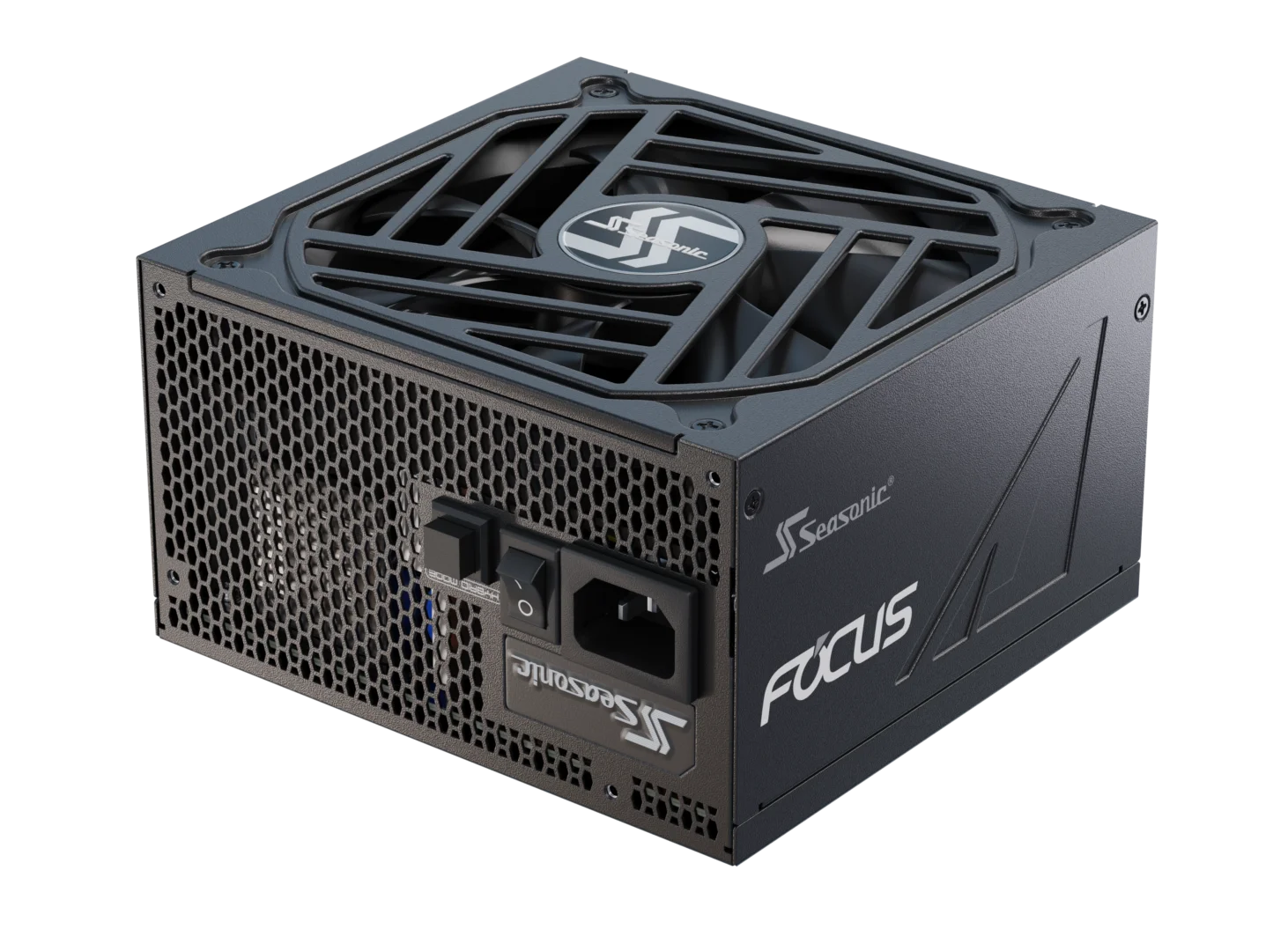

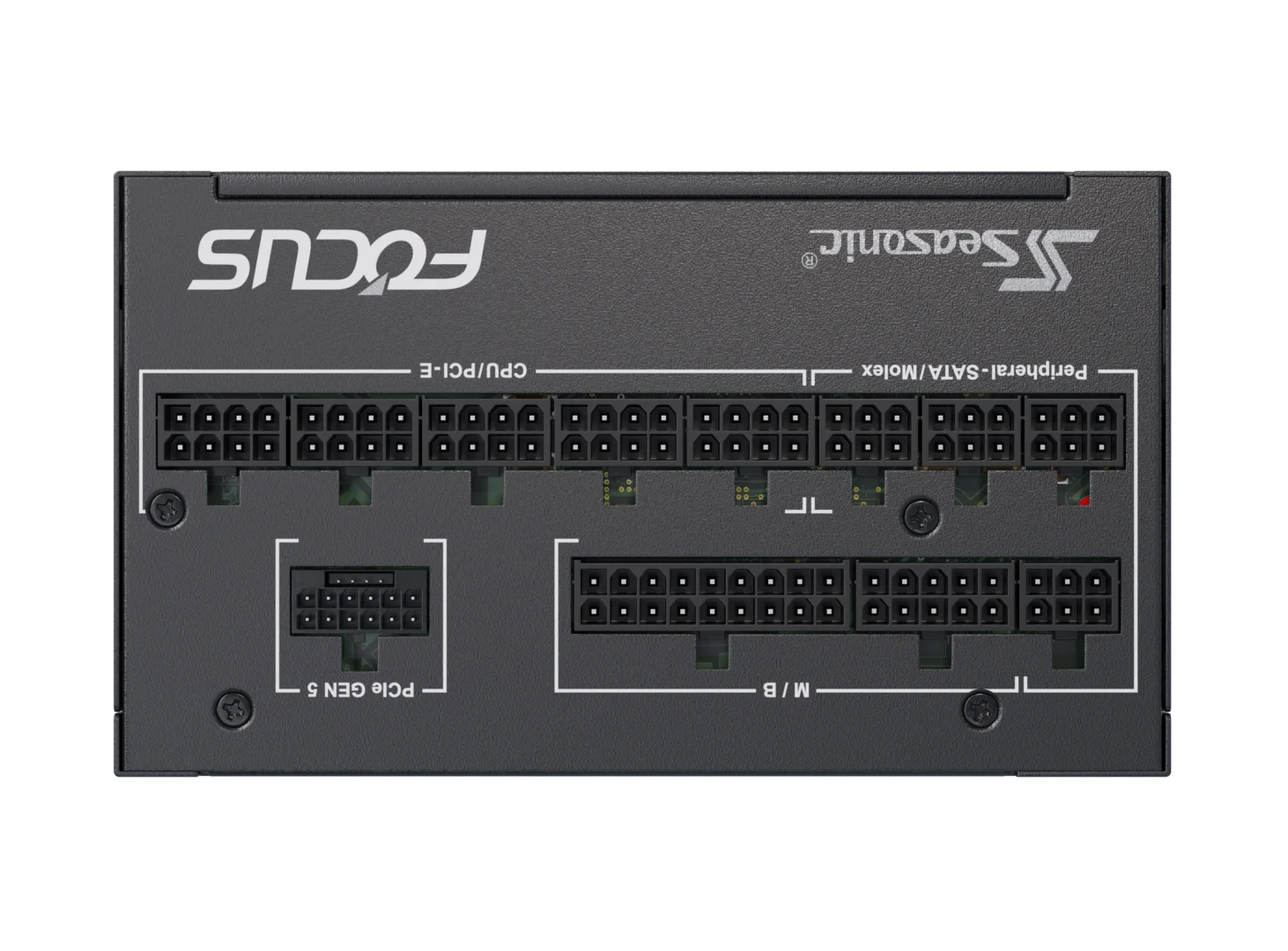

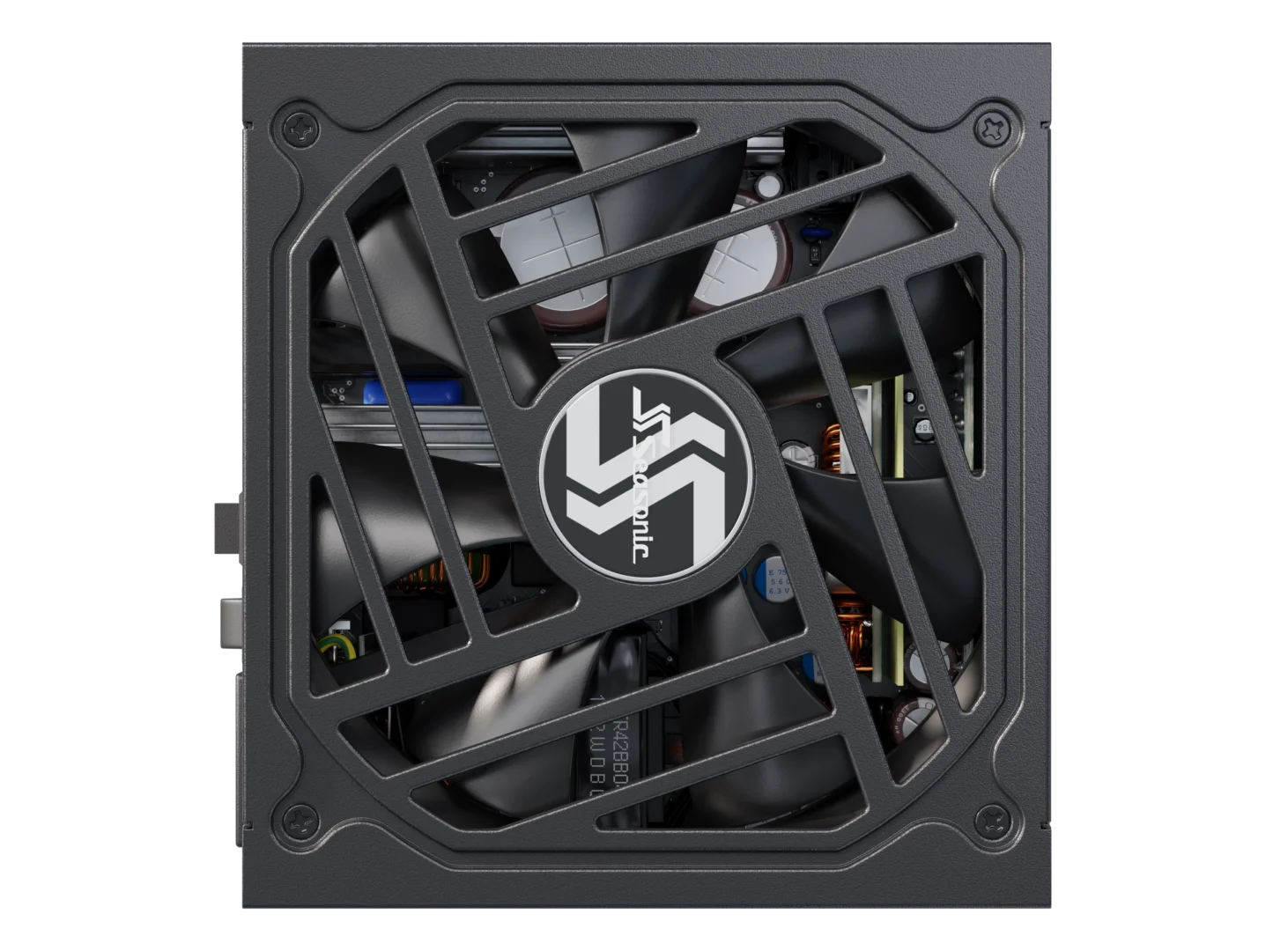

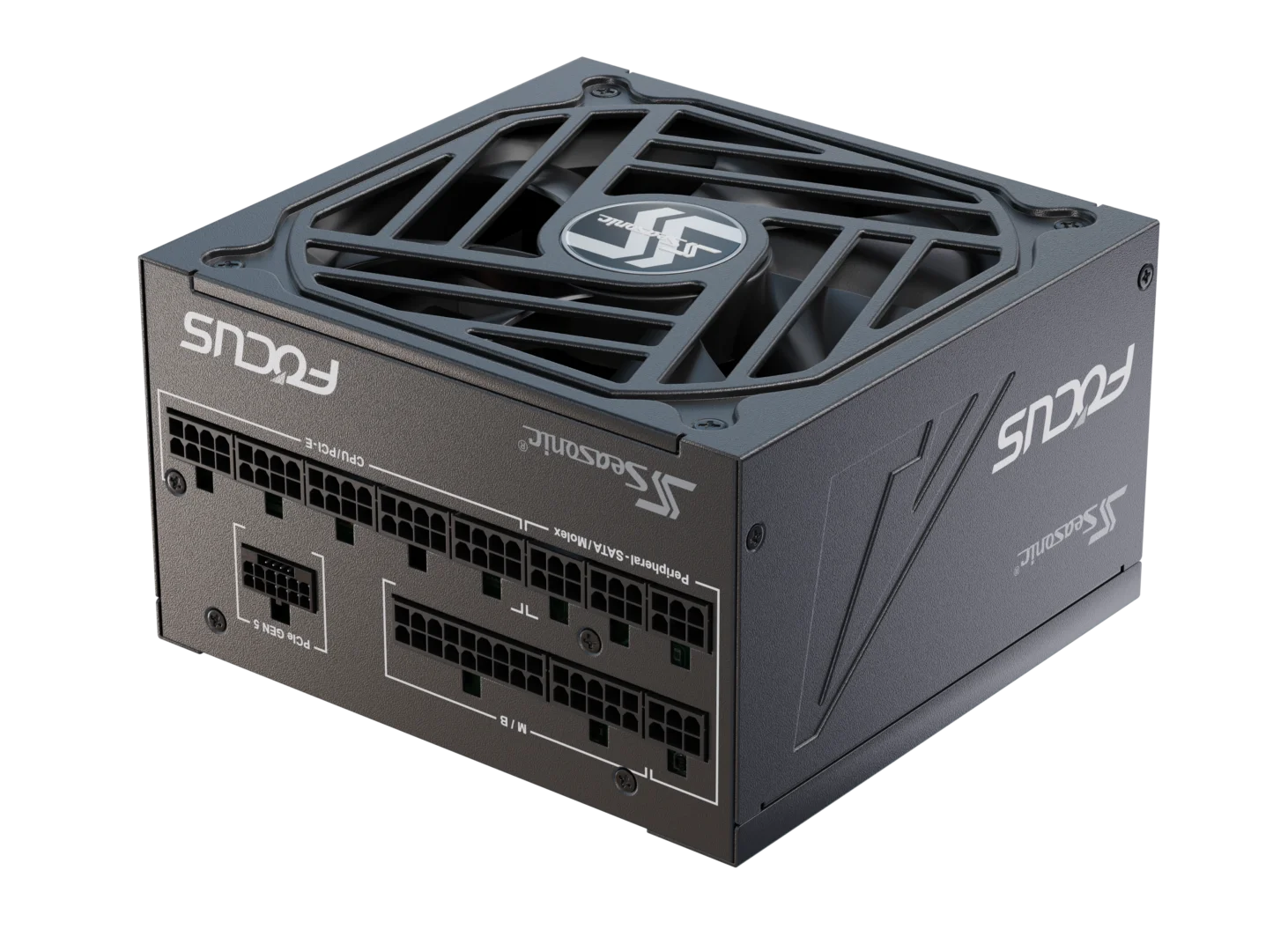

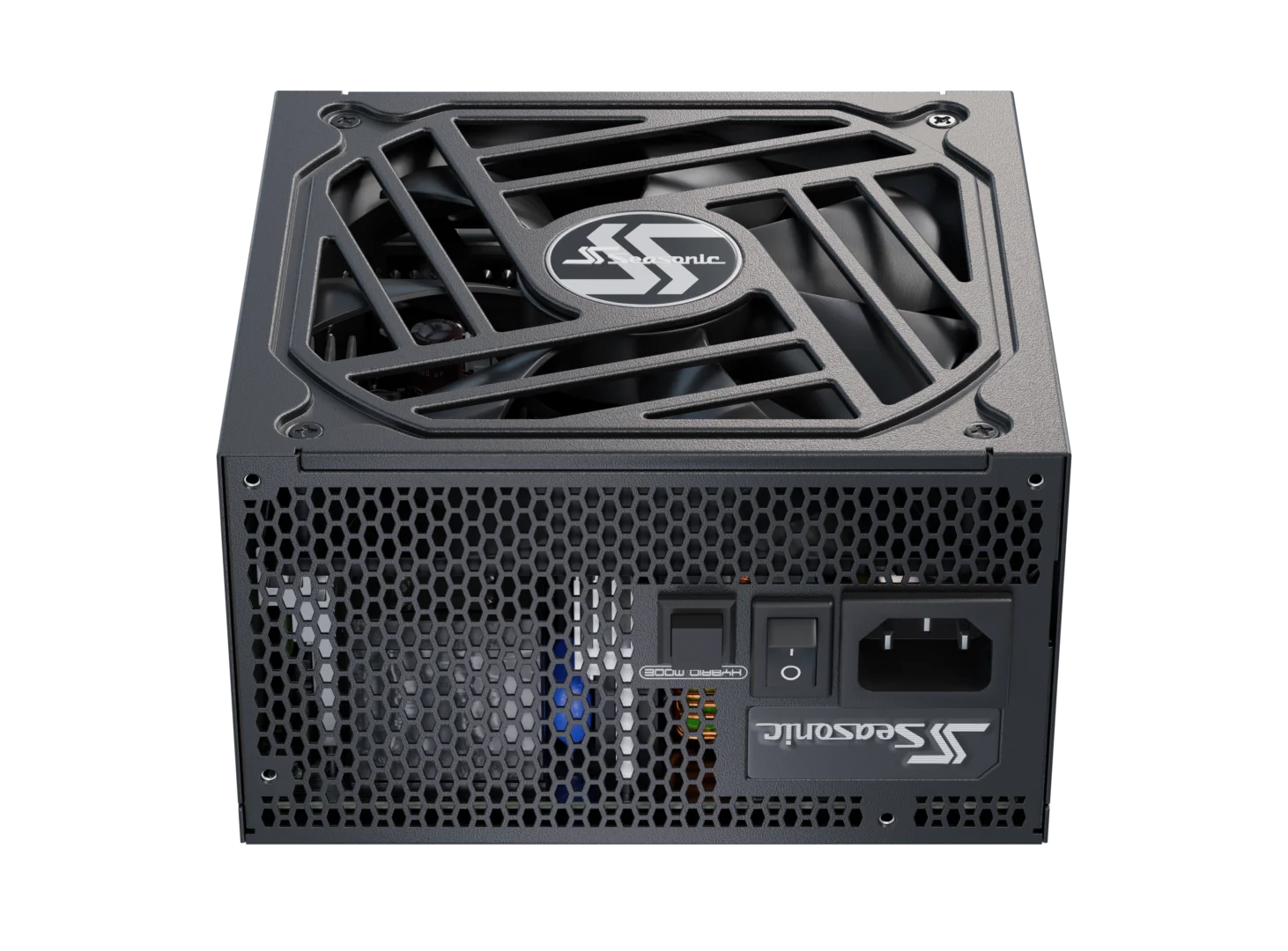

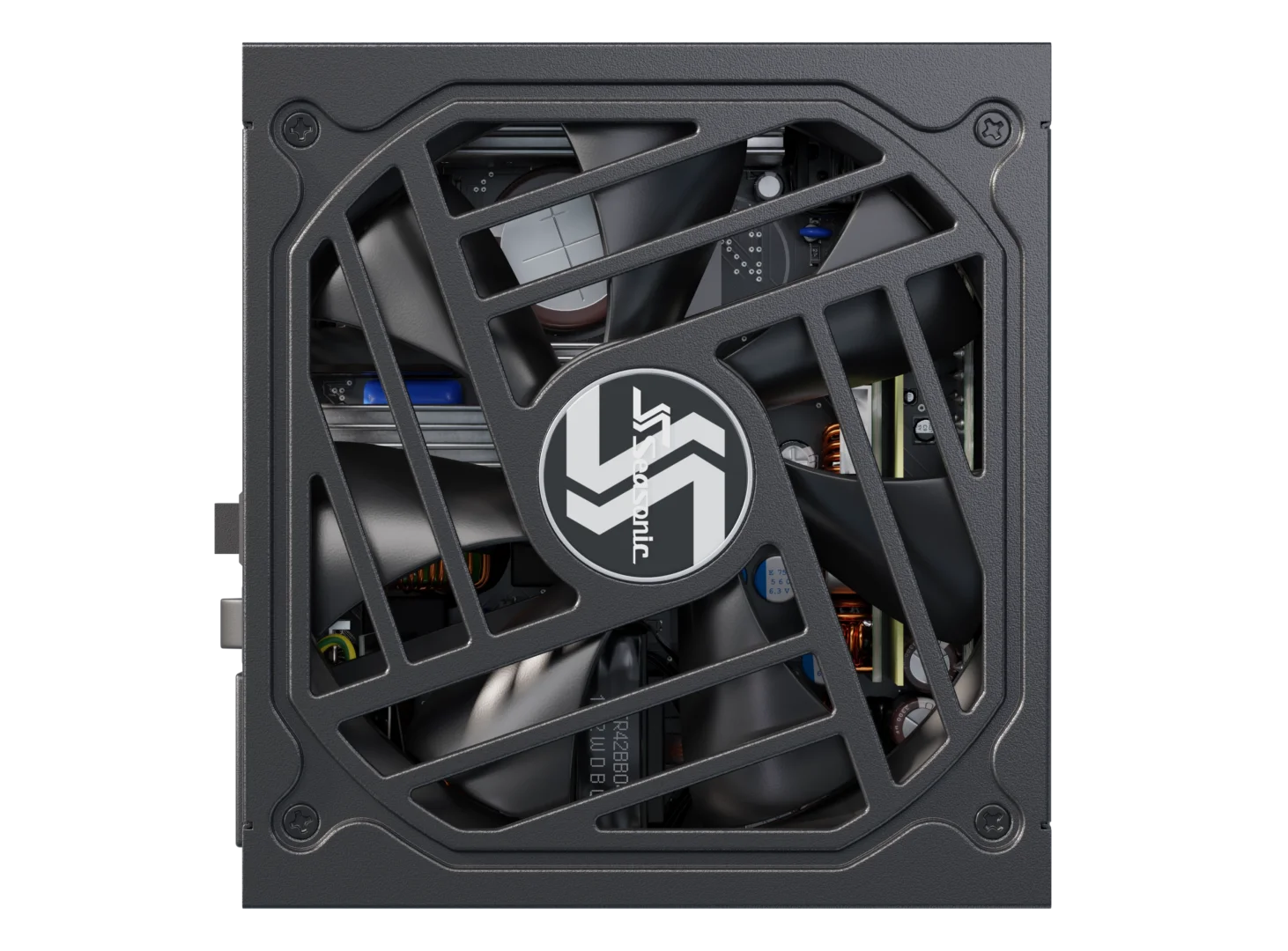

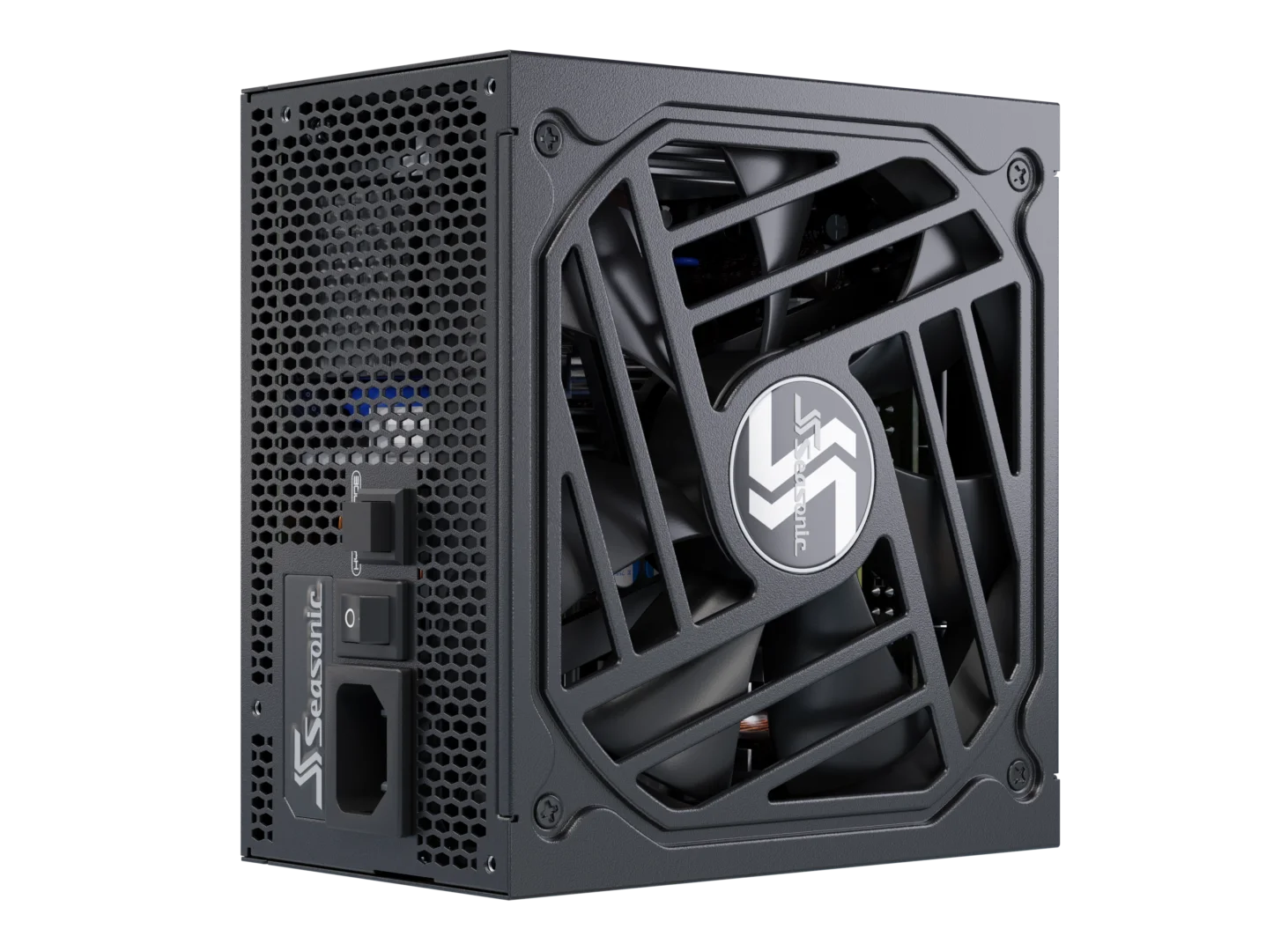

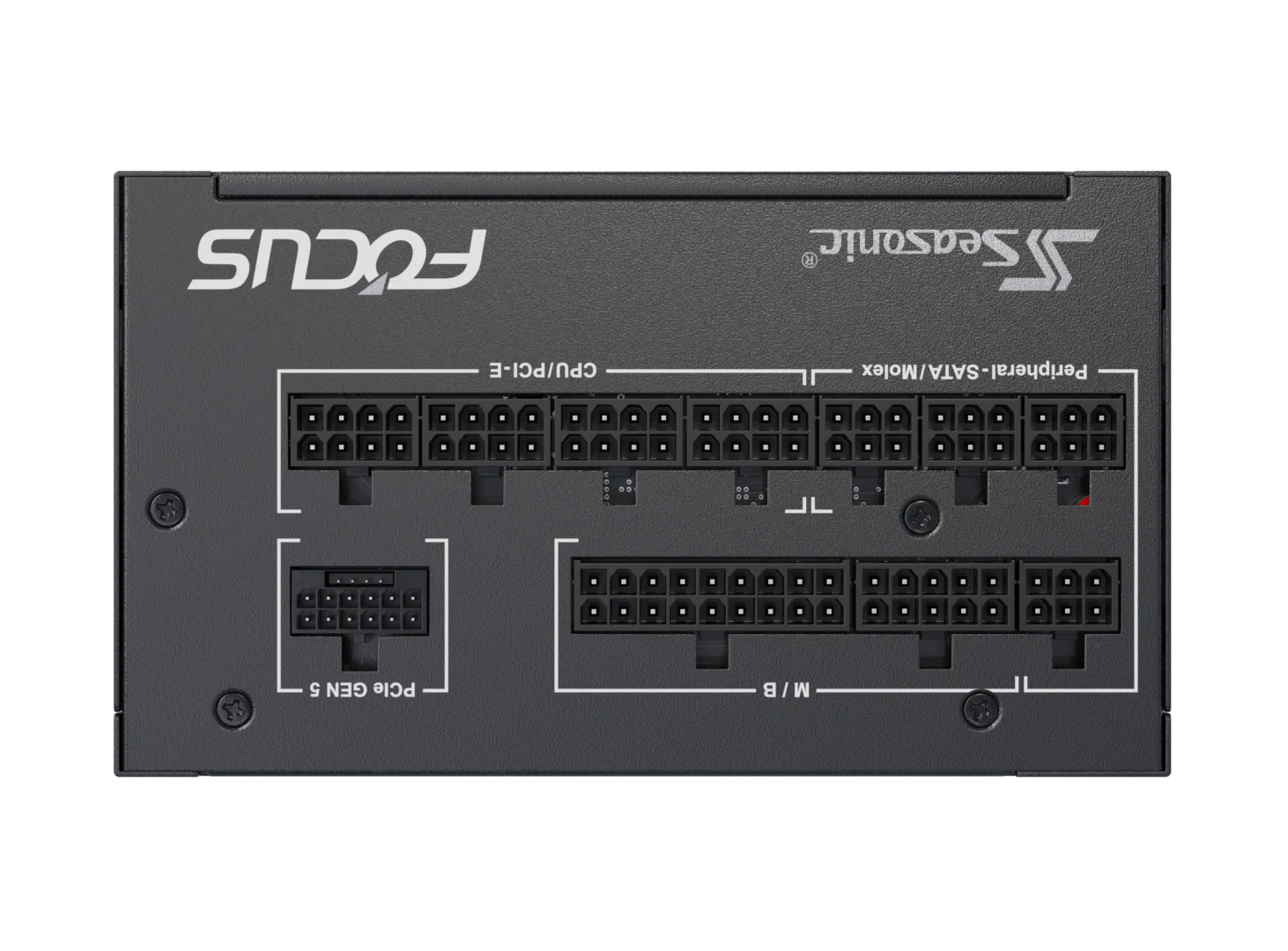

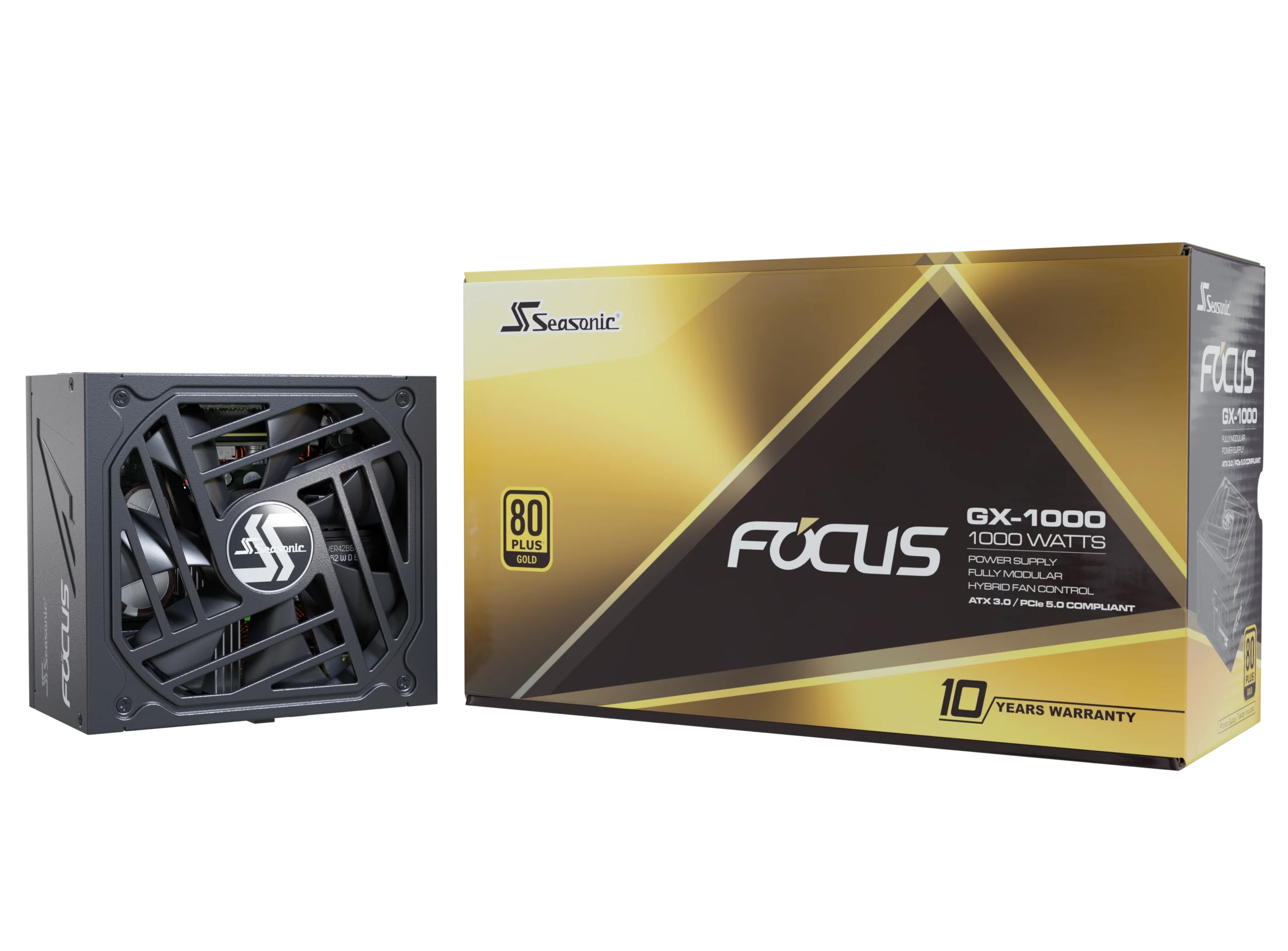

Gallery
1000 W
850 W
750 W
0 /
0
0 /
0
0 /
0
Specifications
1000 W
850 W
750 W
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Gold | |
| Cybenetics Noise Level | A- | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | S3FC (including Fanless Mode) | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 13 - 6.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | |
| 125 W | 996 W | 3.6 W | 15 W | |||
| Total continuous power | 1000 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Gold | |
| Cybenetics Noise Level | Standard++ | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | S3FC (including Fanless Mode) | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 11 - 5.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Gold | |
| Cybenetics Noise Level | A- | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | S3FC (including Fanless Mode) | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 10 - 5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total continuous power | 750 W | |||||
Cables
1000 W
850 W
750 W
610 mm
MB (24/20 pins)
1 connector
1 cable
700 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
3 cables
950 mm
SATA
4 connectors
2 cables
550 mm
SATA 3.3 V
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
750 mm
12VHPWR (12+4 Pins to 12+4 Pins)
1 connector
1 cable
610 mm
MB (24/20 pins)
1 connector
1 cable
700 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
3 cables
950 mm
SATA
4 connectors
2 cables
550 mm
SATA 3.3 V
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
750 mm
12VHPWR (12+4 Pins to 12+4 Pins)
1 connector
1 cable
610 mm
MB (24/20 pins)
1 connector
1 cable
700 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
2 cables
950 mm
SATA
4 connectors
2 cables
550 mm
SATA 3.3 V
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
750 mm
12VHPWR (12+4 Pins to 12+4 Pins)
1 connector
1 cable
Specifications may change without prior notice.
-
